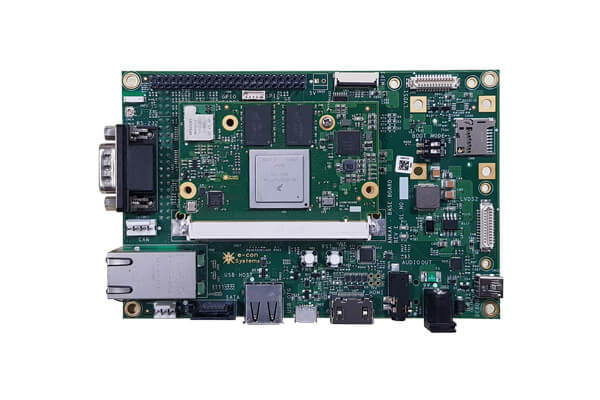

AnkaaPLUS, eSOMiMX6PLUS development kit is a dual board solution that features eSOMiMX6PLUS - Computer/System-on-Module & carrier board.

eSOMiMX6PLUS is based on QuadPlus/DualPLus/Quad/Dual/DualLite/Solo Core ARM® Cortex™-A9 processor running up to 1.2 GHz. It has DDR3L SDRAM configurable up to 4GB and eMMC flash with capacity configurable up to 64GB. The eSOMiMX6PLUS module also has the Wireless LAN and Bluetooth module.

This i.MX6 Quad Plus development kit comes with HDMI to HDMI Cable, USB to serial port cable, 9V Power Supply and 7 inch LCD with Capacitive touch. This iMX6 QuadPlus/DualPLus/Quad/Dual/DualLite/Solo board is used in the various applications like Automation, Medical Imaging, etc.

bullate-con's new SOM supports higher GPU performance and 802.11ac

  • eSOMiMX6PLUS - i.MX6 Computer on Module
    1. NXP's i.MX6 QuadPlus/DualPLus/Quad/Dual/DualLite/Solo ARM™ Cortex-A9 based Processor @ 1GHz per Core
    2. On-board 2GB DDR3L RAM (Expandable up to 4GB)
    3. On-board 8GB eMMC FLASH (Expandable up to 64GB)
    4. eSOMgears - Over-the-Air (OTA) Firmware Upgrade Solution  new
    5. Power Management IC
  • Camera
    1. MIPI - 4 lane interface
    2. Parallel interface 1 - 10 bits
    3. Parallel interface 2 - 20 bits
  • Display
    1. HDMI (x1)
    2. LVDS (x2)
  • Networking
    1. Wi-Fi 802.11 a/b/g/n/ac & Bluetooth V4.2/BLE (Dual Mode/Smart Ready)
    2. 1 Gigabit Ethernet through On-SOM Gigabit Ethernet PHY (x1)
  • Serial Ports
    1. 1 RS232, 1 Debug Port
  • USB
    1. USB 2.0 Host (x1)
    2. USB 2.0 OTG (x1)
  • Digital Audio
    1. Audio Codec with Mic and Stereo headset support
  • Miscellaneous
    1. I2C
    2. SPI
    3. CAN
  • Storage Support
    1. Mini PCIe slot
    2. SATA
    3. One 4 bit UHS SD Interface
  • Dimension - 135mm (L) x 90mm (B)
  • Power Supply: 3.3V @ 3A
  • Commercial Temperature - 0°C to 70°C
  • Supporting Operating Systems
    1. Linux Kernel version 4.9.11
    2. Android Marshmallow 6.0.1 (with Linux Kernel 4.1.15)
  • Availability - Until 2028
AnkaaPLUS – iMX6 development board

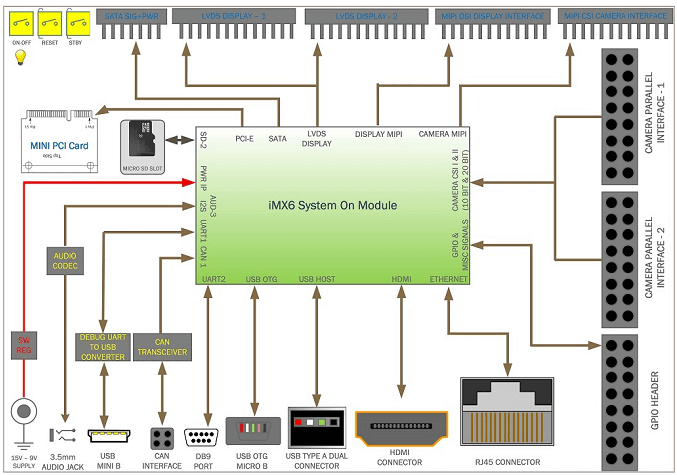

AnkaaPLUS Block Diagram

Download AnkaaPLUS i.MX6 QuadPlus/DualPLus/Quad/Dual/DualLite/Solo Core development board documents:

pdf   AnkaaPLUS Hardware and Software documents

AnkaaPLUS i.MX6 QuadPlus/DualPLus/Quad/Dual/DualLite/Solo Core development board kit contents:

Add on Boards:

13MP Camera board

13.0 MP MIPI Autofocus Camera Board
(ACC-iMX6-MI1335CAM)

ACC-iMX6-MI1335CAM is a 13MP Camera board for e-con's AnkaaPLUS i.MX6 RDK. This AR1335 sensor based Autofocus Camera provides 4-lane MIPI CSI-2 interface.

User Manual

US$199

Buy online

Excluding Shipment Charges

3.4MP MIPI Camera board

3.4 MP MIPI Camera Board (ACC-iMX6-CUMI0330CAM)

ACC-iMX6-CUMI0330CAM is a 3.4 MP Custom Lens Low Light Camera Board for e-con's Ankaa i.MX6 RDK. This AR0330 sensor based Camera provides MIPI-CSI-2 4 lane interface. This is a custom lens Camera board with S-mount interchangeable lens holder.

Frame Rate:
  RGB888
VGA 30 fps
XGA 30 fps
720P 30 fps
1080P 30 fps
3.4MP 30 fps
User Manual

US$149

Buy online

Excluding Shipment Charges

13MP Camera board

13.0 MP MIPI Camera Board (ACC-iMX6-CUMI1820CAM)

ACC-iMX6-CUMI1820CAM is a 13MP Camera board for e-con’s Ankaa i.MX6 RDK. This AR1820HS sensor based fixed focus Camera provides MIPI-CSI-2 interface to perform 1080p@30fps streaming. This is a custom lens Camera board with S-Mount lens holder.

User Manual

$249

Buy online

Excluding Shipment Charges

13MP Camera board

13.0 MP MIPI Camera Board (ACC-iMX6-CUMI1335CAM)

ACC-iMX6-CUMI1335CAM is a 13MP Camera board for e-con's AnkaaPLUS i.MX6 RDK. This AR1335 sensor based fixed focus Camera provides MIPI-CSI-2 interface to perform 1080p@60fps streaming. This is a custom lens Camera board with S-Mount lens holder.

User Manual

$249

Buy online

Excluding Shipment Charges

OEM Customization


You can contact sales@e-consystems.com for customization of the Ankaa Board

Price

US$349
Buy i.MX6 ARM Cortex A9 SOM online

Excluding Shipment Charges

Targeted Applications

»  Portable Data Terminals

»  Navigation

»  Auto infotainment

»  Industrial Control

»  Wireless Streaming

»  Single board Computers

»  Medical Imaging

»  Test and Measurement

»  Remote data Acquisition
