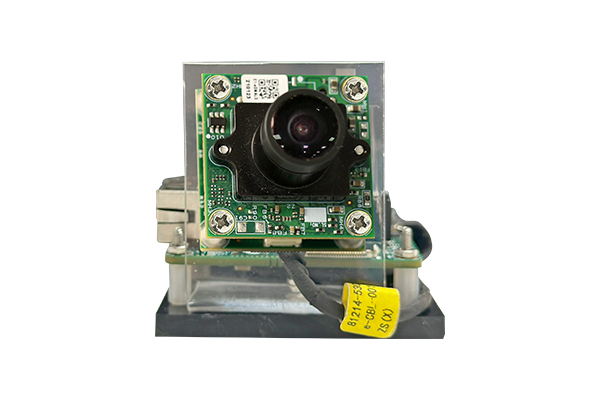

e-CAM25_CUHSB is a Full HD global shutter camera designed for seamless integration with NVIDIA Jetson AGX Thor and AGX Orin™ platforms. Built on the 1/2.6" AR0234CS global shutter sensor and paired with a fine-tuned image signal processor (ISP), this camera connects via the 10G HSB interface to enable advanced vision solutions with the ultra-low latency required for real-time AI applications.
With its global shutter technology and support for up to 120 fps, the camera effectively minimizes frame-to-frame distortion and motion artifacts, delivering crisp, distortion-free images of fast-moving targets.
This compact solution combines e-con's high-performance camera module with a custom-designed HSB board featuring an FPGA-based TintE™ ISP. By intelligently offloading computationally intensive ISP tasks, it significantly reduces system latency while freeing the NVIDIA GPU and CPU. This hardware acceleration allows the host processor to dedicate its full power to complex AI inference and model execution.
- Key features:
-
- Frame Rate: Full HD @ 120fps
- Output Format: YUV 16-bit
- Standard S-mount lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
- Interface:
-
- Interface: 10G HSB
- Connector: RJ45
- Cable Length: 2m
- Sensor features:
-
- Sensor: AR0234 from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: 2.3MP
- Chroma: Color
- Shutter Type: Global Shutter
- Optical Format: 1/2.6"
- Output Format: Uncompressed UYVY format
- Pixel Size: 3μm x 3μm
- SNR: 38 dB
- Dynamic Range: 71.4 dB
- Sensor Active Area: 1920H x 1200V
- Array Size: 1920H x 1200V
- Holder: M12 (S-Mount)
- FOV: TBD
- Electrical & Mechanical:
-
- Operating Voltage: TBD
- Operating Temperature Range: TBD
- Typical power consumption: TBD
- Size in mm (l x b x h):
- Camera board: 30mm x 30mm
- HSB board: 55 mm x 50 mm x 1.6 mm
- Miscellaneous:
-
- Compliance: RoHS
* - Please contact camerasolutions@e-consystems.com
- Supported Jetpack & L4T Version :
-
- NVIDIA® Jetson AGX Thor - JetPack 7.0
- NVIDIA® Jetson AGX Orin™ - JetPack 6.0 L4T36.3.0
- Userspace Camera sensor Driver :
-
- Video preview
- Still Image capture
- Camera controls (Exposure, Gain, Framerate, Resolution)
- Sample application with source Code for Linux :
-
- Video Preview
- Still Image capture
| Part Number | Kit Contents | Purchase |
|---|---|---|
| e-CAM25_CUHSB_CHLC_1H02R1 |
|
|
