See3CAM_24CUG - AR0234CS Full HD Color Global Shutter Camera

Highlights

  • Houses Full HD onsemi® AR0234 CS Image Sensor
  • Fixed Focus
  • Global Shutter
  • On-board high performance ISP

Promotional sample price

Excluding Shipment Charges

Documents

See3CAM_24CUG, is a Full HD color global shutter USB 3.1 Gen 1 camera for accurate and fast capture of moving scenes at 120 fps in full resolution. This Global shutter USB camera features AR0234CS CMOS Image Sensor with pixel size of 3.0 x 3.0 μm and a dedicated high-performance Image Signal Processor (ISP), that performs all the Auto functions (Auto White Balance, Auto Exposure control). This global shutter camera captures images at a high frame rate, which helps to minimize frame-to-frame distortion and reduce motion blur while capturing fast-moving objects to produce smoother images with greater scene details.

This See3CAM_24CUG is a ready-to-use camera with all the necessary firmware built-in and is compatible with UVC standard allowing customers to speed up their time-to-market. Its external trigger support makes it suitable for applications requiring synchronization of multiple cameras (Stereo vision).

Both global shutter and high frame rate make it suitable for applications such as Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Gesture Recognition, Robotic Vision, Drones, Barcode Scanner, Factory Automation, Conveyor Monitoring Cameras, and Traffic Monitoring Systems.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Streams HD @ 120 fps & Full HD @ 60 fps
      Refer pdfDatasheet for more details.
    • Output format: Uncompressed UYVY and Compressed MJPEG
    • Supported OS: Windows, Linux, Android * and MAC **
    • External Hardware Trigger Input
    • Unique ID for each camera
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: USB 3.1 Gen 1 device
    • Connector: Type-C reversible interface connector
    • UVC Compliant - no additional drivers required
    • Backward compatible with USB 2.0 hosts
  • Module features:
    • Sensor: AR0234CS from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter Type: Global Shutter
    • Optical Format: 1/2.6"
    • Output Format: Uncompressed UYVY and Compressed MJPEG
    • Pixel Size: 3μm x 3μm
    • Sensor Active Area: 1920(H) x 1200(V)
    • Array Size: 1920(H) x 1200(V)
    • Responsivity: 56 Ke-/luxsec
    • SNR: 38 dB
    • Dynamic Range: 71.4 dB
    • Holder: M12 (S-Mount)
    • FOV: 128.2°(D), 104.6°(H), 61.6°(V) (with the lens provided by e-con)
  • Electrical and Mechanical:
    • Operating Voltage: 5 V +/- 5%
    • Operating Temperature Range:
      • -30°C to 70°C (without enclosure)
      • 0°C to 50°C (with enclosure)
    • Power Requirements: Max : 2.02W, Min: 0.86W
    • Size in mm (l x b x h):
      • Without Lens: 30 mm x 30 mm x 26 mm (without enclosure)
      • without Lens: 35.3 mm x 35.3 mm x 29 mm (with enclosure)
    • Board Weight:
      • Without enclosure
        • Without Lens: 20 Grams
        • With Lens: 26 Grams
      • With enclosure
        • Without Lens: 51 Grams
        • With Lens: 57 Grams
  • Miscellaneous:
    • Compliance: FCC, RoHS
  • Launched on: launching date
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact camerasolutions@e-consystems.com
  • Supported OS - Windows, Linux, Android * and MAC **
  • Sample Application:
    • e-CAMView – Windows Camera application for Video Preview and Still Capture.
    • QtCAM – Linux Camera application for Video Preview and Still Capture.
  • Still Image Resolutions:
    • Full HD (both MJPEG and BMP)
  • Still Capture:
    • External trigger signal control
    • Software application control
  • UVC Controls:
    • Brightness
    • Contrast
    • Saturation
    • White balance
    • Gamma
    • Gain
    • H Flip
    • V Flip
    • Sharpness
    • Exposure
    • Focus (only for liquid lens)
    • ROI size
    • Denoise
    • Exposure Compensation
  • Please contact sales@e-consystems.com for any customization requirements.
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual
 Bullat Arrow  Mounting Document
 Bullat Arrow  Windows
 Bullat Arrow  Linux
 Bullat Arrow  Application Notes
 Bullat Arrow  Compliance

Download Full HD USB Camera Documents

Customers who own platforms that support USB 3.1 Gen1 and are interested in evaluating the Full HD Color USB camera module can directly purchase the See3CAM_24CUG from e-con Systems. Customers can order See3CAM_24CUG with/without lens.

Part No Description Promotional sample price (1 Unit) Purchase

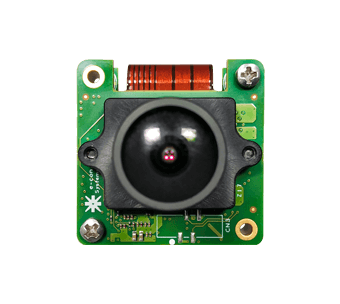

See3CAM_24CUG_CHL_TC Full HD USB 3.1 Gen 1 Global Shutter Camera with M12 Lens contact us our product
See3CAM_24CUG_CH_TC
(5s Pack)
Full HD USB 3.1 Gen 1 Global Shutter Camera without Lens contact us our product

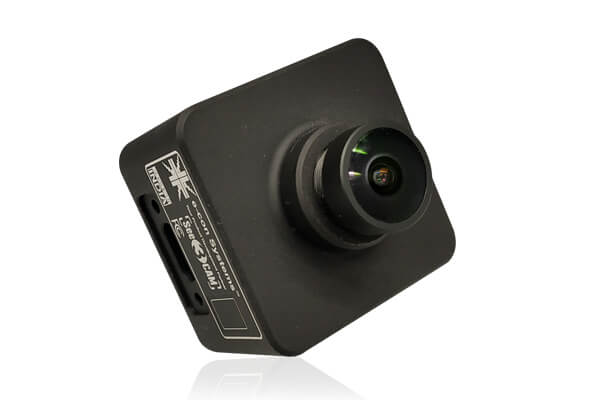

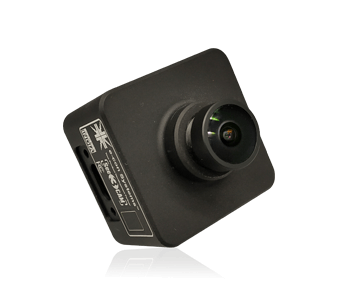

See3CAM_24CUG_CHLCC_BX_H01R2 Full HD USB 3.1 Gen 1 Global Shutter Camera with Enclosure and with lens contact us our product

See3CAM_24CUG_CHL_TC-Full HD USB 3.1 Gen 1 Global Shutter Camera with M12 Lens

Promotional sample price  (1 Einheit)-

contact us our product

See3CAM_24CUG_CH_TC-Full HD USB 3.1 Gen 1 Global Shutter Camera without Lens

Promotional sample price  (1 Einheit)-

contact us our product

See3CAM_24CUG_CHLCC_BX_H01R2-Full HD USB 3.1 Gen 1 Global Shutter Camera with Enclosure and with lens

Promotional sample price  (1 Einheit)-

buy e-con camera

In addition to See3CAM_24CUG, the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows 8.1/10 and Linux (ubuntu 14.04, 16.04 & 18.04)). For more details, please refer the evaluation kit contents below.

For all enquiries please write to sales@e-consystems.com

Kit Contents:
  • Hardware:
    • See3CAM_24CUG - Full HD Color Global Shutter USB 3.1 Gen 1 Camera board with S-Mount Lens Holder
    • USB 3.1 Gen 1 - Type-C Cable
    • Lens (Optional)
  • Software: (Customers will have to download the software from e-con Developer Resource).
    • Supported OS: Windows, Linux, Android * and MAC **
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
  • Documents:
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact camerasolutions@e-consystems.com
See3CAM_24CUG - Customization
  • Do you need a Custom lens mount (C-mount/CS-Mount)?
  • Do you want a smaller form factor solution?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
