e-CAMView – Windows Camera Application
e-CAMView is a Windows DirectShow camera application for video streaming and still capturing from the USB camera device with user friendly Graphical User Interface. e-CAMView comes with a set of features that can be used to attain the full functionality of the USB cameras. All the connected USB video & audio devices are enumerated and listed in the e-CAMView menu to choose one of the USB cameras and start streaming. e-CAMView while running displays the current preview resolution and the frame rate in the lower status bar.
The USB cameras have some or all the UVC camera controls (specific to each USB cameras) such as, Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance (manual/automatic), Backlight compensation, Focus(Auto/Manual), Gain and Exposure (manual/automatic). The e-CAMView enables to set these supported UVC camera controls, to switch between preview resolutions, to choose the output format, capturing still image and operating modes that are specific to the USB camera connected.

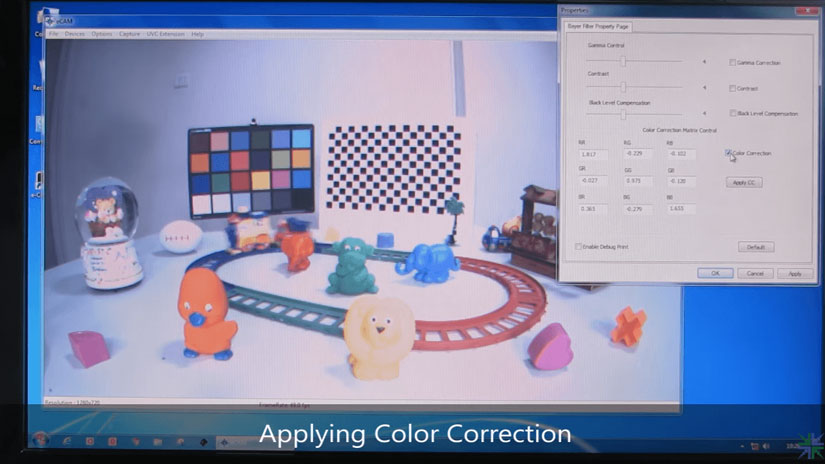

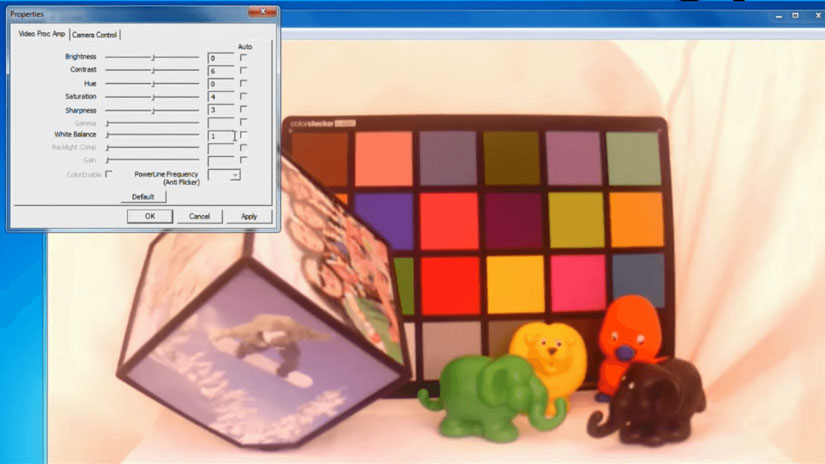

- Image Quality Settings – Users can adjust brightness, contrast and camera supported UVC controls.
- Still Capture Settings – Users can select image type (JPG, PNG, RAW, BMP) and the location to save the image.

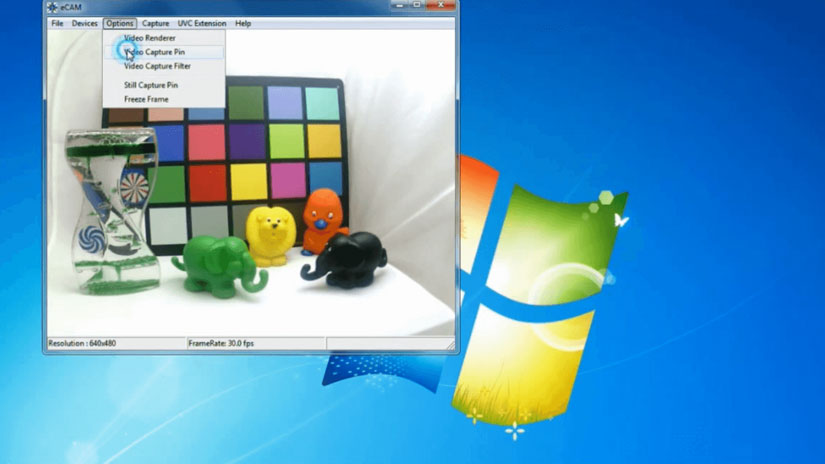

- Video Capture Settings – Users can change the preview based on the selected format and resolution. Allow users to view number of frames played and get FPS information.
- Supported Image types: JPG, PNG, RAW, BMP.
- Supported encoder formats: YUV, MJPEG

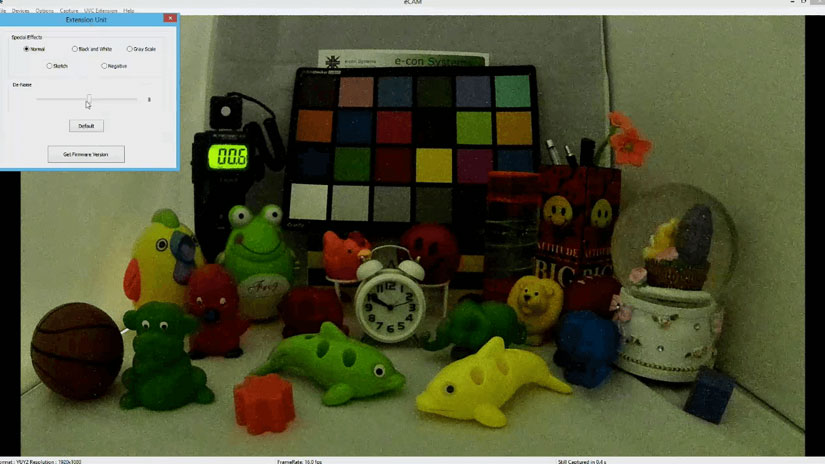

- Extension settings available for selected e-con cameras.
- The key differentiators of this Windows camera application are - it has 10+ image control settings(Brightness, Exposure, White Balance, etc), frame rate (FPS) display and extension settings for select cameras.
e-CAMView Camera Features
See3CAM - USB 3.0 Camera
- FSCAM_CU135 - 13.0 MP Multi Frame Buffer USB 3.0 Camera (Color)
- See3CAM_CU135 - 13.0 MP Fixed Focus 4K USB 3.0 Camera (Color)
- See3CAM_130 - 13.0 MP 4K Autofocus USB 3.0 Camera Board (Color)
- See3CAM_CU130 - 13.0 MP USB 3.0 Camera (Color)
- See3CAM_CU55M - 5.0 MP Low Noise USB3.1 Gen1 Camera (Monochrome)
- See3CAM_CU55 - 5.0 MP Low Noise USB3.1 Gen1 Camera (Color)
- See3CAM_30 – 3.4 MP Autofocus Low Light USB Camera Board with Liquid Lens
- See3CAM_CU30 - 3.4 MP Low Light USB 3.0 Camera Board (Color)
- See3CAM_CU20 - 2.0 MP HDR USB 3.0 camera board (Color)
- See3CAM_24CUG - Full HD Global Shutter Camera
- See3CAM_20CUG - 2.0 MP Global Shutter Camera (Monochrome)
- See3CAM_11CUG - 1.3 MP USB 3.0 Camera (Color)
- See3CAM_10CUG - 1.3 MP USB 3.0 Camera (Bayer/Monochrome)
Stereo Vision Camera
- Tara - USB 3.0 Stereo Vision Camera
- Denebola (See3CAM_CX3RDK) - Cypress® CX3™ Reference Design
USB 2.0 Camera
