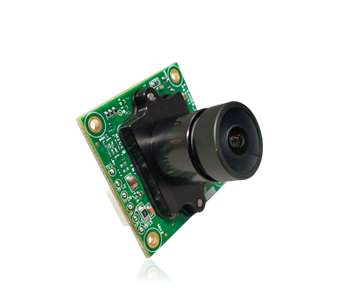

e-CAM82_USB - Sony STARVIS™ IMX415 4K Ultra-HD USB Camera

e-CAM82_USB is an ultra-low light 4K USB UVC camera based on the SONY STARVIS® 1/2.8" IMX415 CMOS image sensor. This 4K ultra-HD USB 2.0 camera has a dedicated, In-built Image Signal Processor (ISP) that performs all the Auto functions (Auto White Balance, Auto Exposure). The ISP and sensor have been tuned for achieving excellent image quality under various lighting conditions including near darkness (0.4 Lux) in both uncompressed YUY2 and compressed MJPEG formats. It is a Plug-and-Play camera (UVC compliant) for Windows and Linux, and does not require any special camera drivers to be installed. This high-resolution camera is suited for applications such as Kiosks, Access Control, Telepresence Robots / Avatar Robots, Document Reader, and Shelf Monitoring Systems.

Key Features

  • Houses 8MP SONY STARVIS® IMX415 Image sensor
  • Fixed Focus
  • In-built Image Signal Processor (ISP)
  • Output format: Uncompressed YUY2 and Compressed MJPEG
  • Frame Rate : Streams Full HD @ 60 fps & 4K @ 30 fps - Refer pdfDatasheet for complete frame rate details.
  • Supported OS: Windows, Linux, Android * and MAC **
  • UVC compliant: no additional drivers required.
  • Operating Voltage: 5V+/-5%
  • Operating Temperature Range: 0°C to 70°C
  • Power requirements:
    • Max : 1.07W
    • Min : 0.73W
  • Size in mm (l x b x h) : 30 x 30 x 25 (Height depends on the lens)
  • Board Weight :
    • 37.5 Grams (with lens)
    • 8 Grams (without lens)
  • Lightweight, versatile, and portable single-board solution
  • Launched on:27-April-2021
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

Module Features:

Sensor:IMX415 from SONY STARVIS™

Focus Type:Fixed focus

Sensor Resolution:8MP

Chroma:Color

Shutter type:Electronic Rolling Shutter

Optical Format::1/2.8" Optical format

Output Format:RAW Bayer 10/12-bit

Pixel size:1.45 μm x 1.45 μm

Sensor Active Area:3864(H) x 2176(V)

Array size:3864(H) x 2176(V)

DFOV:8MP - 115.9° (with the lens provided by e-con)

  • Supported OS - Windows, Linux, Android * and MAC **
  • Sample Application:
    • e-CAMView - Windows Camera application for Video Preview and Still Capture.
    • QtCAM - Linux Camera application for Video Preview and Still Capture.
  • Still Image Resolutions:
    • 8MP (JPEG & BMP)
  • Still Capture:
    • Software application control
  • UVC Controls:
    • Brightness
    • Contrast
    • Hue
    • Saturation
    • Sharpness
    • Gamma
    • White Balance (Manual and Auto)
    • Backlight Comp
    • Gain
    • Digital Zoom
    • Exposure (Manual and Auto)
    • Pan
    • Tilt
    • Roll
    • Powerline Frequency
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

Download e-CAM82_USB - Technical Documents:

 Bullat Arrow  Datasheet

pdf  e-CAM82_USB Datasheet

pdf  e-CAM82_USB Lens Datasheet

 Bullat Arrow  User Manual

pdf  e-CAM82_USB Getting Started Manual

 Bullat Arrow  Windows User Manual

pdf  e-CAM82_USB Windows Extension Unit API Document

pdf  See3CAM DFU Firmware Updater Application User Manual

pdf  e-CAMView Streaming Application User Manual

pdf  e-CAMView Streaming Application Installation Manual

 Bullat Arrow  Linux User Manual

pdf  QtCAM Streaming Application User Manual

pdf  QtCAM Streaming Application Installation Manual

Download e-CAM82_USB Documents

e-CAM82_USB - Customization

  • Do you need a Custom lens mount (C-mount/CS-Mount)?
  • Do you want a smaller form factor or single board solution?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

4K Camera Customization

SAMPLE PRICE

US$129
Buy 8MP USB Camera online

Excluding Shipment Charges

Image taken at 0.8 lux
using e-CAM82_USB

sample image for e-cam82_usb

Click to zoom

»  Kiosks

»  Access Control

»  Telepresence Robots / Avatar Robots

»  Document Reader

»  Shelf Monitoring
