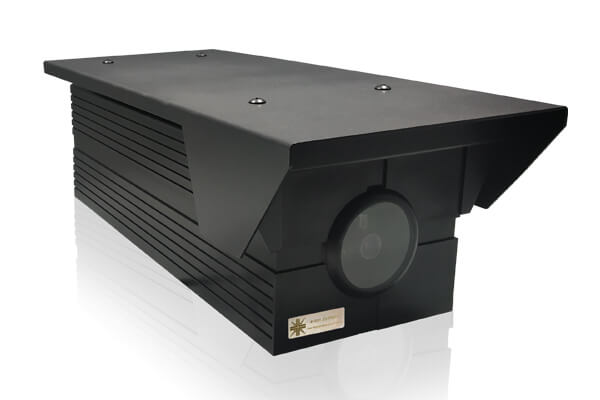

SmarteCAM - IP66 Smart Camera for AI Vision at the Intelligent Edge

SmarteCAM is a ready to deploy artificial intelligence camera with powerful AI processing capabilities with an on-board NVIDIA® Jetson™ TX2 CPU and 256 core GPU which can perform all image processing and analytics indigenously without the connectivity or power of cloud. It is ideally suited for running image based machine learning and deep learning models at the edge making the camera perfect for applications such as smart surveillance, traffic monitoring, parking lot management, crowd monitoring & analysis, smart farming, sports broadcasting etc. This AI smart camera comes with an option to integrate camera from four of our cameras depending upon the end application and use case. Read More »

  • System:
    • NVIDIA® Jetson™ TX2 - Quad-core ARM Cortex A57 MPCore + Dual-core NVIDIA® Denver 2 64bit CPU
    • 256 core NVIDIA® Pascal GPU
    • 8GB of LPDDR4 RAM.
    • On-board storage of 32GB eMMC 5.1 with microSD card support. (expandable up to 512GB).
  • Camera:
    • Full HD ultra low light camera based on Sony Starvis IMX290 sensor (default)
    • 4K ultra low light camera based on Sony Starvis IMX415 sensor *
    • Full HD global shutter camera based on ON Semiconductor®'s AR0234 sensor *
    • 4K HDR camera based on ON Semiconductor®'s AR0821 sensor *
  • Enclosure:
    • IP66 rated against dust, water, and salt water air.
  • Power and network
    • PoE (IEEE802.3at) - power and data transmission over a single Gigabit ethernet interface
    • Network/Connectivity: RJ-45 100Base-TX / 1000Base-T.
    • 4G support **
  • Dimensions
    • Dimensions: W120mm x D323mm x H100mm
  • Compliances
    • Compliances: FCC, IP66, RoHS
  • Download SmarteCAM Product Specification
  • Launched on:launch date
  • * - Coming Soon.
  • ** - optional to allow data transfer over 4G network.
  • Note: The technical information are subject to change
  • SmarteCAM - Camera specifications.
  • Model Name SmarteCAM20_CUTX2 SmarteCAM80_CUTX2
    (Launching Soon)
    SmarteCAM21_CUTX2
    (Launching Soon)
    SmarteCAM81_CUTX2
    (Launching Soon)
    Features HDR/Low light Low light High Frame Rate HDR
    Sensor Sony STARVIS® IMX290 CMOS Image Sensor. Sony STARVIS® IMX415 CMOS Image Sensor. ON Semiconductor®'s AR0234 CMOS Image sensor. ON Semiconductor®'s AR0821 CMOS Image sensor.
    Resolution Full HD (1920x1080) 4K (3840 x 2160) Full HD (1920x1080) 4K (3840xx2160)
    Optical Format 1/2.8" 1/2.8" 1/2.6" 1/1.8"
    Shutter type Electronic Rolling Shutter Electronic Rolling Shutter Global Shutter Electronic Rolling Shutter
    Focus Type Fixed focus Fixed focus Fixed focus Fixed focus
    Image Signal Processor On-board high performance ISP NVIDIA's ISP On-board high performance ISP On-board high performance ISP
    Output Format UYVY, H.264, MJPEG YUV (NV12) UYVY UYVY
    Pixel size 2.9 µm x 2.9 µm 1.45 µm x1.45 µm 3 µm x 3 µm 2.1 µm x 2.1 µm
    Holder S-Mount S-Mount S-Mount S-Mount
    Lens Support 4 lens options with diagonal FOV of
    112°
    59.38° - Default
    45.98°
    22.30°
    TBA* TBA* TBA*
  • * - To be announced.

Download SmarteCAM Product Specification Document:

pdf  SmarteCAM Product Specification

Download SmarteCAM - Technical Documents:

 pdf  SmarteCAM Datasheet

 pdf  SmarteCAM Getting Started Manual

 pdf  SmarteCAM Gstreamer Usage Guide

Download 13MP 4K USB Camera Documents

Software:

  • Supported BSP (JetPack, L4T)
  • Other SDK and Software Packages supported
    • CUDA
    • DeepStream
    • OpenCV
    • Python
    • Tensorflow
    • Tensorrt
    • libcudnn
    • libnvinfer

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Kit Contents:

    • SmarteCAM camera with IP66 rated enclosure and 5m ethernet cable
    • Top hood (along with hood mount and necessary screws)
    • PoE Power Supply

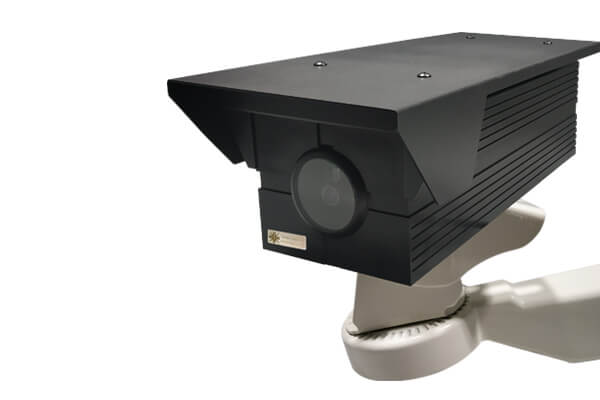

    • SmarteCAM mounting bracket and arm
    • DC Jack power Connector (optional)
    • Firmware Install USB cable
    • 3.6 mm Lens
    • 6 mm lens (Mounted by default)
    • 8 mm Lens
    • 16 mm Lens

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

SmarteCAM - Customization:

    • Do you need to connect other e-con cameras?
    • Do you need assistance in choosing lens?
    • Do you need to develop a ML and DL algorithms?

We do extensive integration support for SmarteCAM. Please contact us for any customization and additional features.

4K Camera Customization

Camera Customization Contact

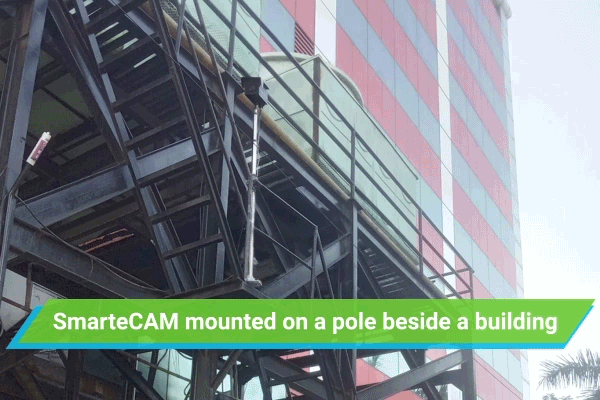

SmarteCAM Mounted Beside a Building

Typhoon captured using SmarteCAM

Targeted Applications

»  Crowd Monitoring & Analysis

»  Smart Farming

»  Sports Broadcasting

»  Intelligent Video Analytics (IVA)

»  Smart Traffic Systems

»  Smart Cities
