e-CAM22_CUXVR - Full HD IMX327 Ultra Low Light Color Camera

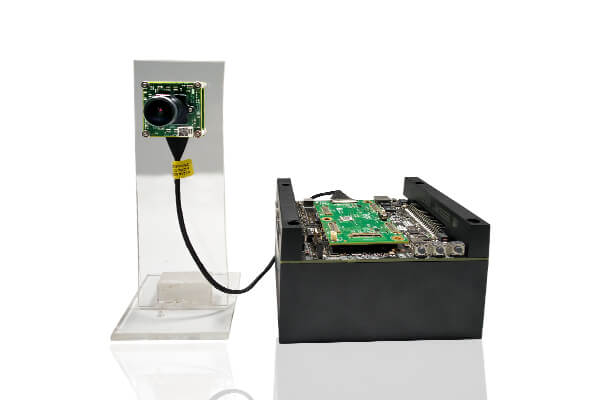

e-CAM22_CUXVR is a synchronized multiple camera solution for NVIDIA® Jetson AGX Xavier™ Developer Kit that consists of six Full HD camera board and a base board to interface with the NVIDIA® Jetson AGX Xavier™ Developer Kit. Each camera is based on the camera module e-CAM220_CUMI327_MOD, a SONY® Starvis IMX327 color CMOS image sensor. With its high sensitivity in both visible and near infrared region helps to produce extraordinary images under extreme low-light conditions or even no light (0 lux) conditions.

  • Houses e-CAM220_CUMI327_MOD - 2.0 MP Sony® Starvis Camera Module with S-mount lens holder
  • High-speed 4-lane MIPI CSI-2 interface product variants to connect with the CPU
  • Plugs in to NVIDIA® Jetson AGX Xavier™ development kit
  • Uses NVIDIA® Internal Image Signal Processor (ISP) for image processing
  • Maximum Image Transfer Rate
  • Resolutions Frame Rate (fps) in 10-bit Output Frame Rate (fps) in 12-bit Output
    Sync Mode Async Mode Sync Mode Async Mode
    HD (1280 x 720) 30 fps 120 fps 30 fps 60 fps
    FHD (1920 x 1080) 30 fps 120 fps 30 fps 60 fps
  • Operating Voltage : 3.3V +/- 5%
  • Operating Temperature Range : -30°C to 85°C
  • Power consumption: Max 1.940W, Min 1.650W (Streaming four Cameras on NVIDIA® Jetson AGX Xavier™)
  • Asynchronous and Synchronous modes
  • Hardware Frame level synchronization by interconnecting all cameras in Master-Slave configuration
  • Control for individual cameras and numbers of cameras to be streamed is selectable
  • Customized LibArgus application for multicamera streaming, image capture and video recording
  • Gstreamer-1.0 support for video recording and network streaming
  • Base Board size ( L x W ): 75.03 mm x 40.69 mm
  • Lightweight, versatile, and portable multi-board solution
  • Adaptor board size in mm (l x b) : 30 x 30 (Height depends on the lens)
  • Micro-Coaxial Cable Length : 30 cm (1 m*)
  • RoHS compliant

Sensor:1/2.8" Optical format CMOS Image sensor

Focus Type:Fixed focus

Resolution:Full HD

Pixel size:2.9 μm x 2.9 μm

Sensor Active Area:1945H x 1097V

G sensitivity:2.376 V @ 12-bit HCG mode, 0.921 V @ 12-bit LCG mode

Output Format:RAW 10/12 bit

Shutter type:Electronic Rolling Shutter

Holder:S-Mount

ISP:External ISP

DFOV :Full HD - 132°(with the lens provided by e-con)

Linux camera driver:


Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM22_CUXVR on NVIDIA® Jetson AGX Xavier™ developer kit.

  • Supported Jetpack & L4T Version
    • Xavier - JetPack 4.2.2 L4T32.2.1
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected sensor modes (eCAM_argus_camera and eCAM_Argus_MultiCamera)
  • Camera Controls
    • Exposure (both manual and automatic)
    • Sensor Gain
    • Exposure Time
    • Frame Rate
    • Sensor Mode Index

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Kit Contents:

  • Hardware:
    • e-CAM22_CUXVR - 2MP MIPI Camera board with lens, Adaptor Board, Base board to connect with camera, Micro-coaxial cable, SD Card (Contains Linux Driver & Sample Application)
  • Software:
    • V4L2 - Sample View finder Applications with Source Code
      • eCAM_argus_camera Application - for single camera streaming
      • eCAM_Argus_MultiCamera Application - for four camera streaming

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Price

e-CAM20_CUXVR Camera Customization

»  Surveillance

»  Autonomous Robotic Systems

»  360° Camera

»  Drones

»  Unmanned Vehicles

»  Intelligent Video Analytics (IVA)
