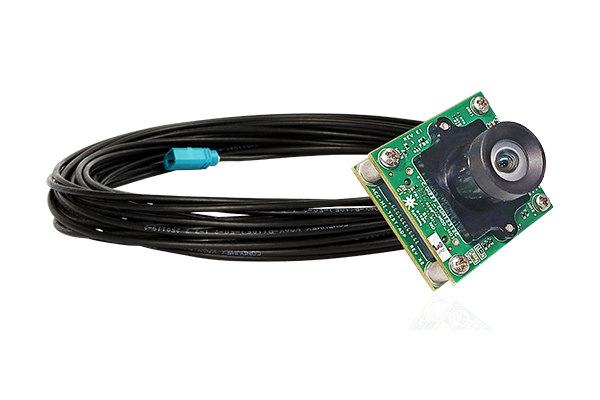

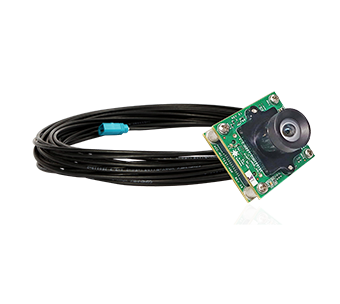

NileCAM27 - 2MP OV2312 Global Shutter RGB-IR GMSL2™ Camera with 15m cable support

Highlights:

  • 2MP RGB-IR camera based on the OV2312 sensor
  • Global Shutter
  • On-board high performance ISP
  • Streams RGB-IR frames simultaneously
  • Operating Temperature Range: -40°C to +80°C
  • GMSL2™ interface to transmit power and data up to 15m

Samples Available

NileCAM27 is a 2.0 MP global shutter RGB-IR Camera module based on OmniVision's 1/2.9" OV2312 image sensor. Utilizing this image sensor which features 3μm x 3μm OmniPixel® 3-GS technology, this camera captures high-resolution images with minimal motion blur, even at high frame rates. Its IR sensitivity helps to produce stunning image quality even in the Near Infrared (NIR) regions.

It has an S-mount (M12) lens holder, allowing customers to choose and use the lens according to their requirements. This GMSL camera is an ideal solution for various applications such as Remote patient monitoring, Driver monitoring systems, IVA applications like ANPR, Face anti-spoofing in Biometrics access.

  • Key features:
    • Frame Rate:
      • 2MP @ 36 fps
    • Output format: RGB - UYVY & IR - UYVY
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2™
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: OV2312 from OmniVision™
    • Focus Type: Fixed focus
    • Sensor Resolution: 2MP
    • Chroma: Color, NIR
    • Shutter Type: Global Shutter
    • Optical Format: 1/2.9"
    • Output Format: Compressed UYVY
    • Pixel Size: 3.0 μm x 3.0 μm
    • SNR: 37.4dB
    • Dynamic Range: 68dB
    • Sensor Active Area: 1600H x 1300V
    • Array Size: 1600 x 1300 Pixels
    • Holder: M12 (S-Mount)
    • FOV: 87.89° (D) x 80.86° (H) x 50.72° (V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -40°C to +80°C
    • Power requirements: TBD
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
 Bullat Arrow  Download NileCAM27 Documents

Documents  13MP GMSL 2 camera

Product Code Supported Platforms Sample Price
(1 Unit)
NileCAM27_CUOAGX
Kit Contents
  • NileCAM27 - 2MP Camera Module with S-mount lens holder
  • 15 meter coaxial cable
  • Deserializer board
NVIDIA® Jetson AGX Orin / Xavier™ Dev Kit

NileCAM27_CUOAGX-NVIDIA® Jetson AGX Orin™/ AGX Xavier™ Dev Kit



NileCAM27 - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NileCAM27 on any application platform as per customer requirements.

NileCAM27 - Customization:

e-con provides customization for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and feature customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
