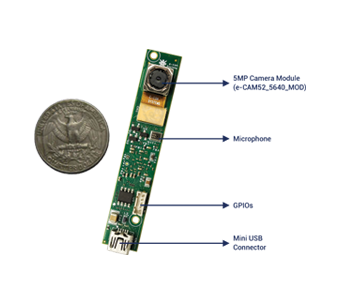

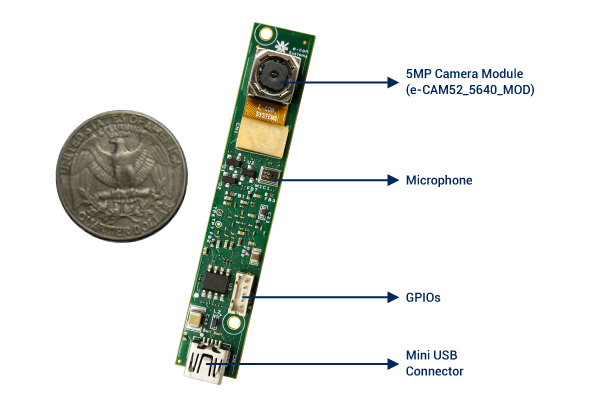

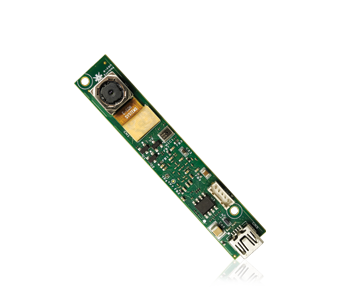

e-CAM51_USB - 5MP USB Camera Module

• Key features:
• • Frame Rate :
    • Streams HD @ 30 fps & 5MP @ 15 fps
    Refer Datasheet  for complete frame rate details.
  • Output format: Uncompressed YUV2 & compressed MJPEG
  • Supported OS: Windows, Linux, Android * and MAC **
  • USB 2.0 device with Mini-B interface connector
  • 4 General purpose pins
    • User Configurable GPIOs (1 Input and 1 Output)
    • 1 External hardware trigger for still capture
    • 1 Predefined GPIO input for Flip/Mirror
  • Unique ID for each camera
  • Lightweight, versatile, and portable design
• Module features:

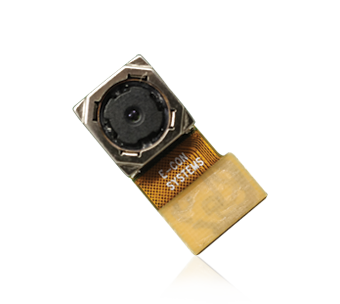

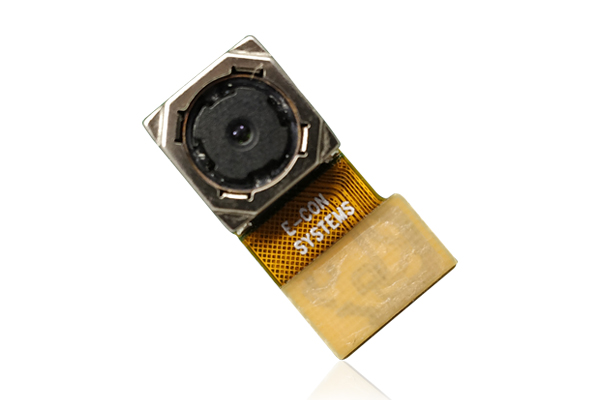

• • Sensor: OV5640 from OmniVision
  • Focus Type: Auto focus
  • Sensor Resolution: 5.0 MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/4"
  • Output Format: YUV4:2:2, YCbCr422 and compression
  • Pixel Size: 1.4μm x 1.4μm
  • Array Size: 2592 (H) x 1944 (V)
  • Holder: M12 (S-Mount)
  • Effective focal length: 3.42 mm
  • SNR: 36 dB
  • Dynamic Range: 68 dB
  • FOV: 65.88°(D), 54.72°(H), 42.61°(V)(with the lens provided by e-con)
• Electrical & Mechanical:
• • Operating Voltage: 5V +/- 5%
  • Operating Temperature Range: 0°C to 50°C
  • Power Requirements: 400 mA (max)
  • Size in mm (l x b x h):
    • Camera size: 71 x 13 x 7.8
    • Module size: 8.5 x 8.5 x 5.15
  • Board Weight: 4.5 Grams
• Miscellaneous:
• • Compliance: FCC, RoHS
• Launched on:
• * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
• ** - For MAC OS support, please contact camerasolutions@e-consystems.com

• Supported OS - Windows, Linux, Android ^* and MAC ^**
• Sample Application:
• • e-CAMView – Windows Camera application for Video Preview and Still Capture.
  • QtCAM – Linux Camera application for Video Preview and Still Capture.
• * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
• ** - For MAC OS support, please contact camerasolutions@e-consystems.com

Customers who own platforms that support USB 2.0 and are interested in evaluating the 8MP USB camera module can directly buy the e-CAM83_USB from e-con Systems™.

Part No	Description	Sample Price (1 Unit)	Purchase

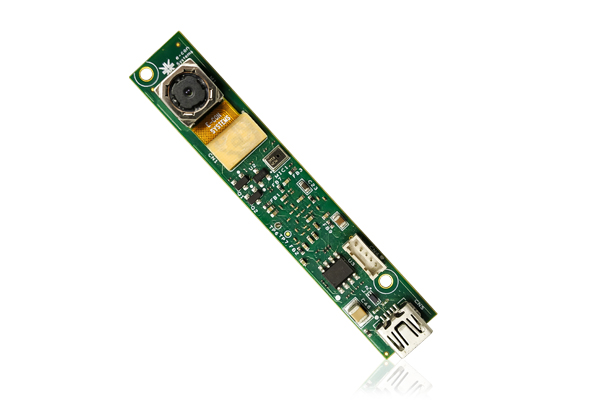

e-CAM51B_USB_H01R2	5.0 MP HD USB Camera Board

In addition to e-CAM51_USB - USB camera module, the evaluation kit comes with e-CAMView (Windows) / eCAMGUVCView (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features such as AF Trigger, Manual focus GPIO toggling etc. (for Windows, Linux, Android * and MAC **) and support for 4 weeks. For more details, please refer the evaluation kit contents below.

For all enquiries please write to sales@e-consystems.com

Kit Contents:

• Hardware:
• • e-CAM51_USB - 5 megapixel USB Camera module
  • USB 2.0 Cable
• Software: (Customers must download the software from e-con Developer Resource)
• • Supported OS: Windows 8.1/10, Linux
  • e-CAMView (Windows) / QtCAM Linux Camera application for Video Preview and Still Capture.
• Documents:
• • e-CAM51_USB - Hardware and Software documents
• * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
• ** - For MAC OS support, please contact camerasolutions@e-consystems.com

e-CAM51_USB – Customization

• Do you want a smaller form factor?
• Do you want LED?
• Do you want other customization options?
• Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
