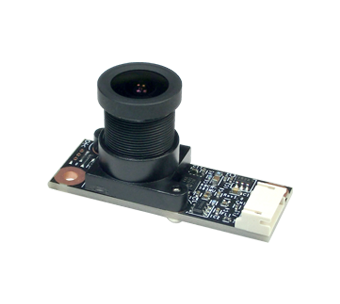

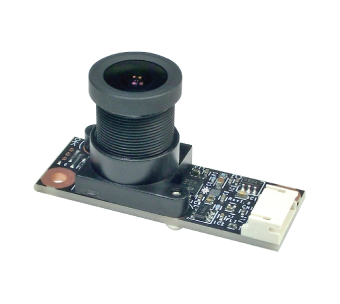

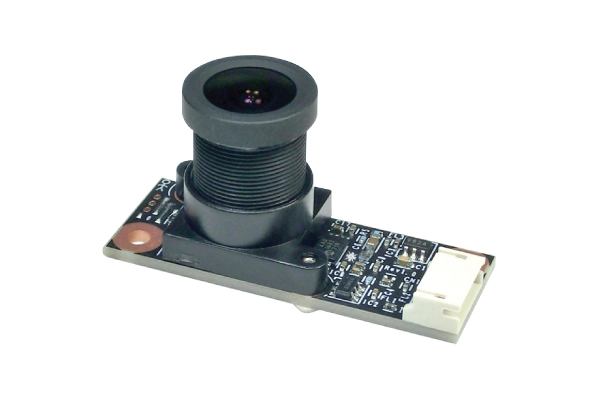

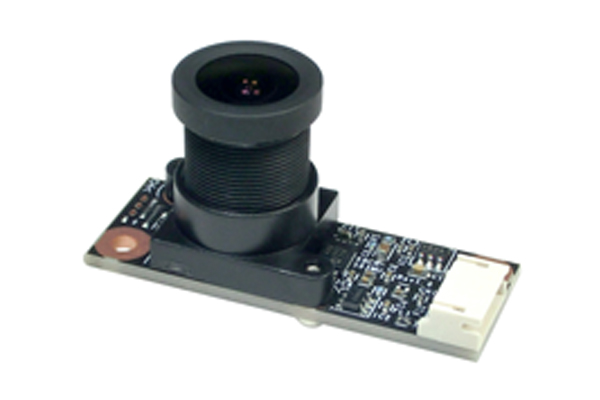

e-CAM16_USB - 1.2MP USB 2.0 Camera Module

• Key features:
• • Frame Rate :
    • MJPEG: 960p @ 30fps, VGA @ 30fps
    • YUV: 960p @7.5fps, VGA @30fps
    Refer Datasheet  for complete frame rate details.
  • Output format: Uncompressed YUV and Compressed MJPEG
  • Supported OS: Windows
  • Lightweight, versatile, and portable single-board solution
• Module features:
• • Sensor: 1.2MP Sensor
  • Focus Type: Fixed focus
  • Sensor Resolution: 1.2MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/4"
  • Output Format: : YUV and MJPEG
  • Pixel Size: 3μm x 3μm
  • Image Area: 3.84mm x 2.88mm
  • Holder: M12 (S-Mount)
  • FOV: 194°(V), 142°(H), 206°(D)
• Electrical & Mechanical:
• • Operating Voltage: 5V +/- 5%
  • Operating Temperature Range: -10°C to 60°C
  • Power Requirements: 1.00 W (max.)
  • Size in mm (l x b): 15mm(H) x 40mm(W)
  • Board Weight: 4 Grams (Without lens)
• Miscellaneous:
• • Compliance: RoHS

• Supported OS - Windows
• Controls:
• Automatic Exposure Control
• Automatic Gain Control
• Automatic White Balance
• Various image adjustment functions (software control)
• Sample Application
• • Windows Camera application for Video Preview.

Kit Contents:

• Hardware:
• • e-CAM16_USB - 1.2 megapixel USB Camera module
  • USB 2.0 Cable
• Software: (Customers must download the software from e-con Developer Resource)
• • Supported OS: Windows
  • Windows Camera application for Video Preview and Still Capture.
