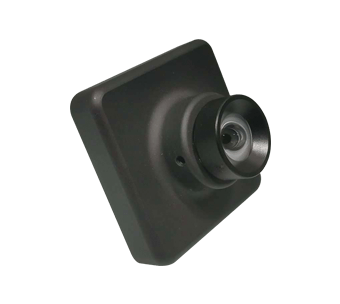

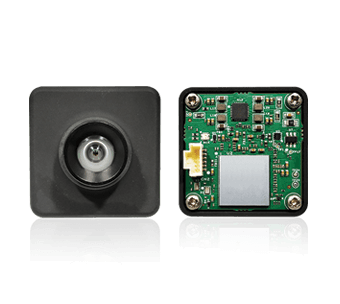

e-CAM83_USB - 4K Microsoft Teams compliant HDR USB Camera

e-CAM83_USB is a SONY based 8MP color, UVC USB high-speed camera with High Dynamic Range and dual stream support. This conference camera comes with dual-stream support which allows it to receive two streams with different resolutions simultaneously. The HDR capability of the camera helps to capture images without any data loss in challenging lighting conditions.

e-CAM83_USB is an HDR USB camera based on Sony IMX317, a 1/2.5" sensor. It has a powerful high-performance Image Signal Processor (ISP) which helps in providing high-quality image output by leveraging HDR processing, Auto White Balance (AWB), Auto Gain Control, and Auto Exposure functions..
Read More »

  • Houses 8MP SONY IMX317 Image sensor
  • Fixed Focus
  • High Dynamic Range (HDR)
  • Dual Stream support
  • On-board high performance ISP
  • Output format: H.264, MJPG and YUY2
  • Frame Rate:
    • 4K @ 15 FPS and Full HD @ 30 FPS (HDR Mode)
    • 4K @ 30 fps & Full HD @ 30 fps (Linear Mode)
    Refer pdfDatasheet for complete frame rate details.
  • Supported OS: Windows, Linux, Android * and MAC **
  • USB 2.0 device with cable assembly
  • UVC compliant: No additional drivers required
  • Microsoft Teams compliant ***
  • Operating Voltage: 5V +/- 5%
  • Operating Temperature Range: 0°C to 70°C
  • Power requirements:
    • Max : 1.9W
    • Min : 1.2W
  • Size in mm (l x b x h):
    • Without Lens: 33.4 mm x 33.4 mm x 18.8 mm
  • Board Weight:
    • Without Lens: 18.5 Grams
    • With Lens: 21.5 Grams
  • Compliance
    • FCC
    • RoHS
  • Lightweight, versatile, and portable single-board solution
  • Launched on:09-Feb-2022
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com
  • *** - Microsoft teams "pre-certification" testing is done for e-CAM83_USB. The image quality meets the standard requirement to avail Microsoft teams certification.

Sensor:IMX317 from SONY®

Focus Type:Fixed focus

Sensor Resolution:8MP

Chroma:Color

Shutter type:Electronic Rolling Shutter

Optical Format::1/2.5"

Output Format:H.264, MJPG and YUY2

Pixel size:1.62 μm x 1.62 μm

Sensor Active Area:3864(H) x 2196(V)

Array size:3864(H) x 2176(V)

Holder:M12 (S-Mount)

DFOV:8MP - 97.68° (with the lens provided by e-con)

  • Supported OS - Windows, Linux, Android * and MAC **
  • Sample Application:
    • e-CAMView - Windows Camera application for Video Preview and Still Capture.
    • QtCAM - Linux Camera application for Video Preview and Still Capture.
  • Still Image Resolutions:
    • 8MP (JPEG & BMP)
  • Still Capture:
    • Software application control
  • UVC Controls:
    • Brightness
    • Contrast
    • Sharpness
    • White Balance
    • Exposure Compensation
    • Gain
    • Exposure
    • Powerline Frequency
    • Zoom
    • Pan
    • Tilt
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

Download e-CAM83_USB - Technical Documents:

 Bullat Arrow  Datasheet

pdf  e-CAM83_USB Datasheet

pdf  e-CAM83_USB Lens Datasheet

 Bullat Arrow  User Manual

pdf  e-CAM83_USB Getting Started Manual

pdf  e-CAM83_USB Mounting Guide

 Bullat Arrow  Windows User Manual

pdf  e-CAM83_USB Windows Extension Unit API                Document

pdf  See3CAM DFU Firmware Updater Application User                Manual

pdf  e-CAMView Streaming Application User Manual

pdf  e-CAMView Streaming Application Installation                Manual

 Bullat Arrow  Linux User Manual

pdf  QtCAM Streaming Application User Manual

pdf  QtCAM Streaming Application Installation Manual

Download e-CAM83_USB Documents

Ordering Info:

Customers who own platforms that support USB 2.0 and are interested in evaluating the 8MP USB camera module can directly buy the e-CAM83_USB from e-con Systems™.

Part No Description Sample Price
(1 Unit)
Purchase
e-CAM83_USB 4K HDR USB Camera USD 149 buy e-con camera

e-CAM83_USB-4K HDR USB Camera

Sample Price (1 Unit)- USD 149

buy e-con camera



In addition to e-CAM83_USB , the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows, Linux, Android * and MAC **). For more details, please refer the evaluation kit contents below.

For all enquiries please write to sales@e-consystems.com

Kit Contents:

  • Hardware:
    • e-CAM83_USB - 4K HDR USB Camera
    • USB Cable Assembly
    • Lens
  • Software: (Customers will have to download the software from e-con Developer Resource)
    • Supported OS: Windows, Linux, Android * and MAC **
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
  • Documents:
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

e-CAM83_USB - Customization

  • Do you need a Custom lens mount (C-mount/CS-Mount)?
  • Do you want a smaller form factor?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
