e-con Systems presents a remarkable camera series powered by Sony Pregius IMX264 sensor technology. The Sony Pregius IMX264 stands out as a cutting-edge CMOS image sensor known for its ability to capture crystal clear images and versatile applicability across industries.

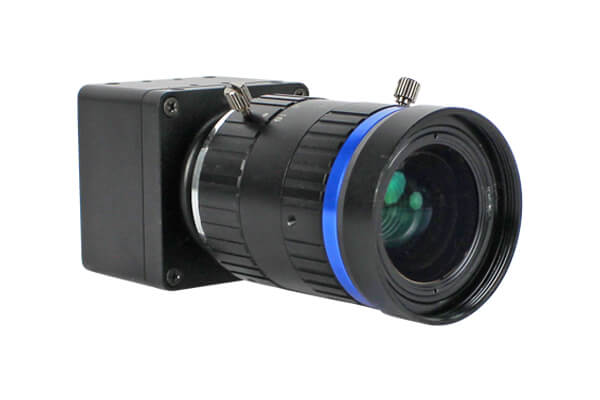

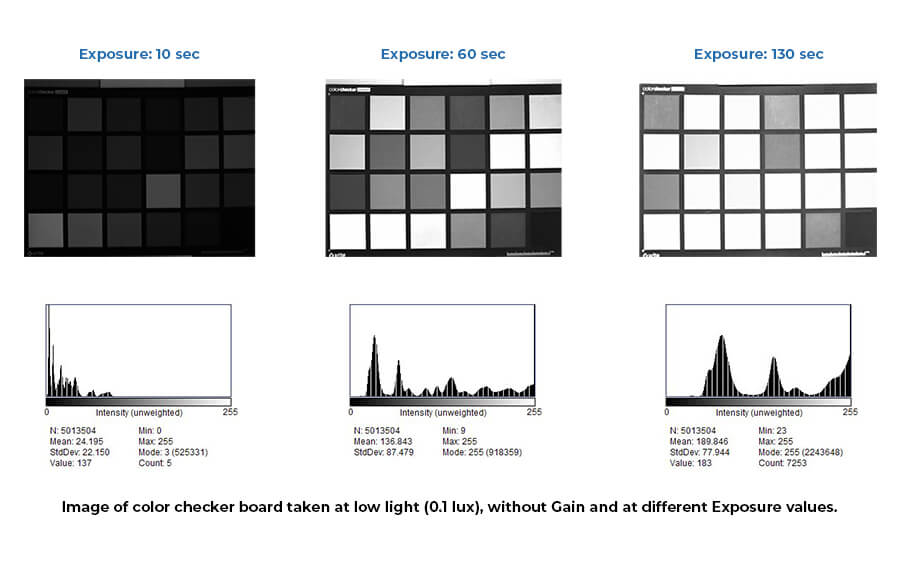

See3CAM_50CUG excels at capturing precise, distortion-free images of fast-moving subjects and delivers a superior signal-to-noise ratio. Combined with excellent NIR performance, support for both long and short exposure settings, and high sensitivity, this camera proves to be the perfect fit for medical and life science applications.

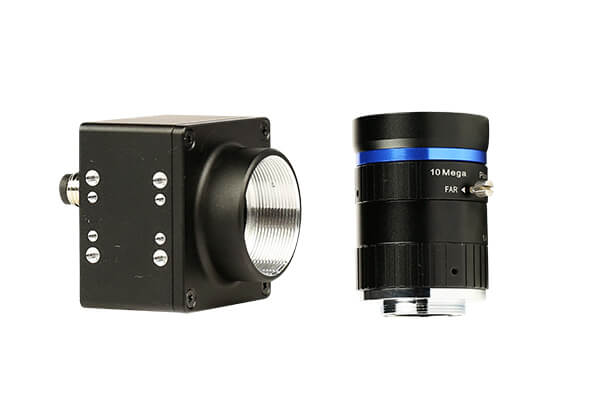

This camera series is based on a 2/3" 5MP Sony Pregius IMX264 CMOS sensor which features a large pixel size of 3.45 µm to capture more details. Also, this Sony Pregius IMX264 camera has global shutter efficiency to support fast frame rates, allowing for high-speed imaging without motion blur.
High frame rate
5MP @ 35 fps,
External trigger control
Helps synchronize the camera's image capture which enables precise timing & control over the imaging process.
TintE
High performance ISP
Extensive SDK support
e-CAMView, OpenCView & QTCAM for seamless integration and control for all processing platforms.
| Product Name | Lens Option | Chroma | ISP | Documents | Sample Price | |
|---|---|---|---|---|---|---|
See3CAM_50CUG_CXLCC_BX_H01R1 |
With lens | Color | Yes |
|
|
|
| See3CAM_50CUG_CXXCC_BX_H01R1 |
Without lens | Color | Yes |
|
|
|
| See3CAM_50CUG_MXLCC_BX_H02R1 | With lens | Monochrome | Yes |
|
|
|
| See3CAM_50CUG_MXXCC_BX_H01R1 | Without lens | Monochrome | Yes |
|
|
|
Module Feature :
| Module Features | |
|---|---|
| Sensor | IMX264 from Sony® Pregius |
| Focus Type | Fixed Focus |
| Resolution | 5MP (2448 x 2048) |
| Chroma | Monochrome / Color |
| Shutter Type | Global Shutter |
| Optical Format | 2/3" |
| Output Format | Y12 12-bit (Monochrome) / YUY2 (Color) |
| Pixel Size | 3.45 μm x 3.45 μm |
| Sensor Active Area | 2464 (H) × 2056 (V) |
Interface :
| Interface | |
|---|---|
| Interface | USB 3.2 Gen 1 device |
| Connector | Type-C reversible interface connector |
| UVC Compliant | no additional drivers required |
| Supported OS | Windows and Linux |
| Backward compatible with USB 2.0 hosts | |
GPIO Interface :
| GPIO Interface | |
|---|---|
| GPIO Interface | 6-pin GPIO header for I2C signals, Strobe and Trigger |
Key Features :
| Key Features | |
|---|---|
| Frame Rate |
|
| Output format | Y12 12-bit (Monochrome) / YUY2 (Color) |
| Compliance | FCC, RoHS |
Electrical and Mechanical :
| Electrical and Mechanical | |
|---|---|
| Operating Temperature Range | -10°C to 50°C |
| Typical Power Consumption (W) |
|
| Size in mm (l x b x h) |
|
Optics :
| Optics | |
|---|---|
| Lens holder | C-Mount |
| FOV | 33.4° (D), 26.1° (H), 22.6° (V) (with the lens provided by e-con) |
Launch Dates :
| Launch Dates | |
|---|---|
| See3CAM_50CUGM(Monochrome) |
 |
| See3CAM_50CUG(Color) |
 |
Download documents for See3CAM_50CUGM (Monochrome)
Download documents for See3CAM_50CUG (Color)
EMVA 1288 is useful for embedded cameras as it provides standardized performance metrics and testing procedures, allowing for objective comparison, performance optimization, and quality assurance in embedded systems.
EMVA 1288 test outcome for the See3CAM_50CUG camera by e-con systems equipped with IMX264 color sensor.
| EMVA 1288 RESULTS (Measured at 531nm) | |
|---|---|

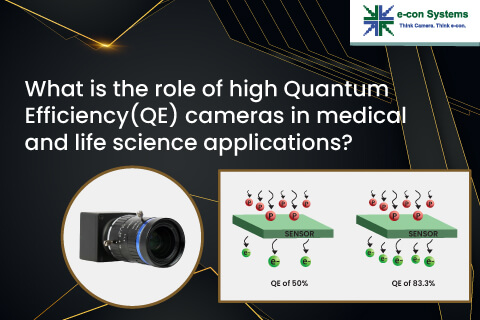

| Quantum efficiency η | 60.9% |
| Temporal dark noise σd | 2.05 e- |
| Signal-to-noise ratio | 40.3 dB |
| Saturation capacity μe.sat | 10629 e- |
| Dynamic range | 71.75 dB |

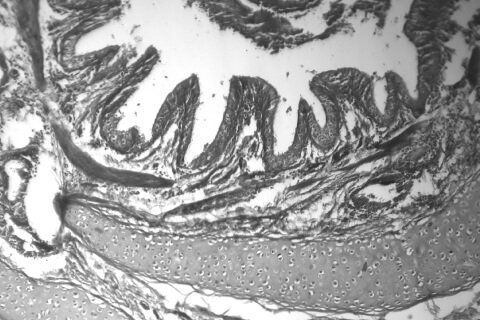

Digital Microscopy
Fluorescence Imaging
Live Cell imaging
Point of Care diagnostic devices
Ophthalmic Devices
Molecular Imaging
Lab automation / Liquid handling
ITS
Drones
Factory Automation
Yes, Trigger can be induced by Software also. When the camera is configured in this mode, it does not stream any frames, until it receives the command over HID interface. Additionally, the user has control over how many frames the camera should capture. This functionality will be supported by our SDK.
In See3CAM_50CUGM, as the iMX264 sensor does not support binning, binning is done outside the sensor before streaming over USB. The camera is capable of 2x2 binning. The user can select the Region of interest and then Binning. Frame rate increases only because of reduced ROI and not because of binning itself. The maximum frame rate will depend on the selected ROI.
