See3CAM_30 - 3.4 MP Autofocus Low Light USB Camera Board with Liquid Lens

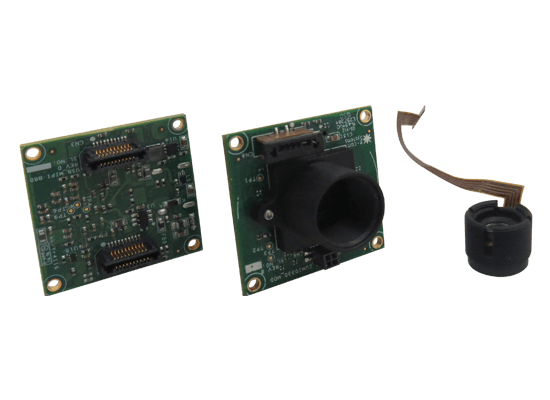

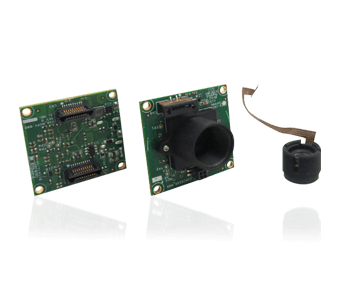

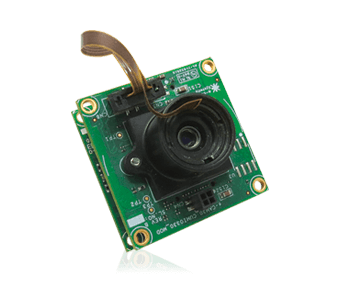

See3CAM_30 is a 3.4MP UVC Compliant, low light, autofocus USB camera with liquid lens. It is a two-board solution with AR0330 CMOS image sensor from ON Semiconductor and USB 3.1 Gen1 type C interface board. See3CAM_30 is a colour camera with S-mount lens holder and does not require any special camera drivers to be installed in the host PC. See3CAM_30 is customizable and it is a Ready-to-Manufacture camera with all the necessary firmware built in and compatible with the USB Video Class (UVC). It consumes less power and doesn't heat up. There is no mechanical movement like in VCM motor for autofocus. Hence the life of the lens increases.

"The Varioptic Caspian S module used in e-con Autofocus Camera allows close focus, unlimited number of cycles, low power consumption, and outstanding resistance to vibration and mechanical shocks. The e-con camera offers an ideal off the shelf solution for our customers who want to focus their design resources on the application rather than on the camera design." - Frederic Laune, Executive Director of Invenios (Varioptic), France

Key Features of See3CAM_30 - Liquid Lens USB Board Camera

Module:Houses e-CAM31_MI0330_MOD - 3.4 MP AR0330 Color Camera Module

Focus Type:Auto Focus

Shutter type:Electronic Rolling

Output Video format:Uncompressed UYVY format and Compressed MJPEG format

Frame rate:

Resolutions USB 3.1 Gen1 USB 2.0
UYVY MJPEG UYVY MJPEG
VGA 60 fps & 30 fps 60 fps 30 fps & 15 fps 60 fps
XGA+ 60 fps & 30 fps 60 fps 19 fps & 9.5 fps 60 fps
HD (720p) 60 fps & 30 fps 60 fps 16 fps & 8fps 60 fps
960P (1280 x 960) 58 fps & 30 fps 58 fps 14 fps & 7 fps 58 fps
Full HD (1080p) 60,30 & 15 fps 60 fps 8 fps & 4 fps 60 fps
1280P (1920 x 1280) 50 fps & 25 fps 50 fps 6 fps & 3 fps 50 fps
3MP (2048 x 1536) 42 fps & 21 fps 50 fps 5 fps & 2.5 fps 50 fps
3MP (2304x1296) 30 fps & 15 fps 60 fps 6 fps & 3 fps 60 fps
3.4 MP (2304 x 1536) 24 fps & 12 fps 48 fps 5 fps & 2.5 fps 48 fps

Supported OS:Windows 7, Windows 8/8.1, Windows 10, Linux, Android * and MAC **

Connector/Interface type:USB 3.1 GEN1 device with Type C reversible interface connector.

Operating Voltage:5V +/- 5%, Current - 416mA

Temperature:-30°C to 70°C

Power requirements:Max : 2.22W & Min : 1.05W

GPIO:10 pin GPIO header

Trigger:External trigger

Zero-lag-shutter :3.4 MP still capture with Zero-lag-shutter (*Not for cross resolution still captures)

Digital Zoom:Upto 8x

Dimension:30mm x 30mm

weight:16Grams with lens
14Grams without lens

»  Lightweight, versatile, and portable two-board solution

»  Liquid lens support for Auto Focus which consumes very less current, wear & tear and heat compared to traditional VCM based Auto Focus.

»  Plug-and-Play setup (UVC compliant)

»  ROHS compliant

» Launched on: 28 Feb 2017

* - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android

** - For MAC OS support, please contact sales@e-consystems.com

Camera Module Features:

Sensor:AR0330 from ON Semiconductors

Sensor Resolution and Optical Format:3.4 MP CMOS Image Sensor. 1/3" Optical format

Sensor Type:3.4 MP CMOS Electronic Rolling Shutter Sensor

Image Signal Processor:External ISP

Output Format:Uncompressed UYVY format and Compressed MJPEG format

Sensor Features:

Pixel size:2.2μm x 2.2μm pixel

Sensor Active Area:2304(H) x 1536(V)

Responsivity:2.0 V/lux-sec (550 nm)

SNR:39 dB

Dynamic Range:69.5 dB

Shutter Type:Electronic Rolling Shutter

Focus Type:Auto focus

DFOV:3.4MP - 66° (with the lens provided by e-con)

  • Supported OS - Windows10, Windows 8/8.1, Windows 7, Linux, Android * and MAC **
  • Sample Application:
    • e-CAMView - Windows Camera application for Video Preview and Still Capture.
    • QtCAM - Linux Camera application for Video Preview and Still Capture.
  • Still Image Resolutions:
    • 3.4 MP(both MJPEG and BMP)
  • Still Capture:
    • External trigger signal control
    • Software application control
  • Zero Shutter Lag:
    • 3.4 MP still capture with Zero-lag-shutter (*Not for cross resolution still captures)
  • UVC Controls:
    • Brightness
    • Contrast
    • Sharpness
    • Saturation control
    • Gamma control
    • Gain
    • Exposure (Manual and Auto)
    • White Balance (Manual and Auto)
    • Digital Zoom - Upto 8x
  • Additional Capabilities:
    • Support for external trigger
    • LED Strobe control
  • Denoise
  • Q- Factor
  • Frame rate Control
  • Burst Still capture
  • Exposure Compensation
  • Scene Mode
    • Normal
    • Document
  • Special Effect
    • Normal
    • Black and white
    • Grayscale
    • Negative
    • Sketch
  • Auto Focus Mode
    • Continuous
    • One-shot
  • Focus Window Rectangle
  • Auto Focus ROI
    • Centered
    • Manual
  • Auto Exposure ROI
    • Full
    • Manual
  • Face Detection
  • Smile Detection
  • Flip Controls
    • Horizontal Flip
    • Vertical Flip
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com
  • Customization of firmware and hardware as per customer requirement is possible. Please contact sales@e-consystems.com for more details.

Download See3CAM_30 - Technical Documents:

   Datasheet

pdf  See3CAM_30 Datasheet

pdf  See3CAM_30 Lens Datasheet

   User Manual

pdf  See3CAM_30 Getting Started Manual

   Linux

pdf  QtCAM - Linux SW Application
              User Manual

   Windows

pdf  e-CAMView - Windows SW Installation Guide

pdf  e-CAMView - Windows SW Application User
              Manual

pdf  e-CAMView - Windows SW Extension Unit
              API Manual

 Download 3.4 MP Liquid Lens Camera Documents

Ordering Info:

Customers who own platforms that support USB3.1 Gen1 and are interested in evaluating the 3.4 MP USB camera module can directly buy the See3CAM_30 from e-con Systems.

Part No Description Sample Price
(1 Unit)
Volume Price
(1000s Pack)
Purchase
See3CAM_30 3.4 MP Autofocus Low Light USB Camera Board with Liquid Lens Type-C Connector US$299 US$149 buy camera

See3CAM_30-3.4 MP Autofocus Low Light USB Camera Board with Liquid Lens Type-C Connector

Sample Price (1 Unit)-US$299

Volume Price (1000 units)-US$149

buy camera



In addition to See3CAM_30, the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows 10, Windows 8, Windows 7, Linux, Android * and MAC **). For more details, please refer the evaluation kit contents below.

For all enquiries please write to sales@e-consystems.com

Kit Contents:

USB3 Camera

  • Hardware:
    • See3CAM_30 – 3.4 MP Autofocus USB3.1 Gen1 Camera Board with Liquid Lens
    • USB3.1 Gen1 Type-C Cable
  • Software: (Customers will have to download the software from e-con Developer Resource)
    • Supported OS: Windows 10 , Windows 8, Windows 7, Linux, Android * and MAC **
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
  • Documents:
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

See3CAM_30 - Customization

  • Do you need a different lens mount (C-mount/CS-Mount) ?
  • Do you need assistance in choosing lens?
  • Do you need lens correction?
  • Do you want a smaller form factor?
  • Do you need LED?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

Camera Customization

US$149
Buy See3CAM_30

Excluding Shipment Charges

Targeted Applications

»  Surveillance

»  Face Detection

»  NIR imaging applications

»  Day-Night camera applications

»  In-car security cameras
