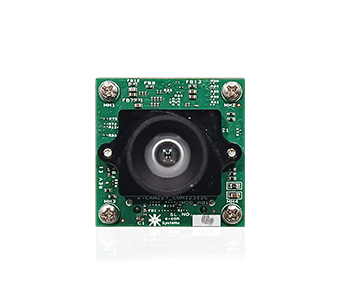

e-CAM27_CUOAGX - 2MP OV2312 Global Shutter RGB-IR camera for Jetson AGX Orin™

Highlights:

  • 2MP RGB-IR camera based on the OV2312 sensor
  • Global Shutter
  • On-board high performance ISP
  • Streams RGB-IR frames separately
  • Operating Temperature Range: -40°C to +80°C
  • Plugs into NVIDIA® Jetson AGX Orin™ development kit

Engineering Samples Available

Documents

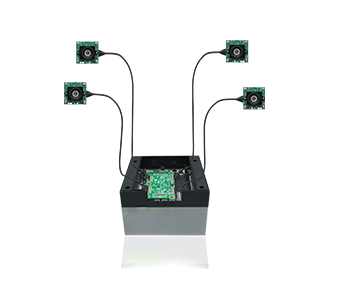

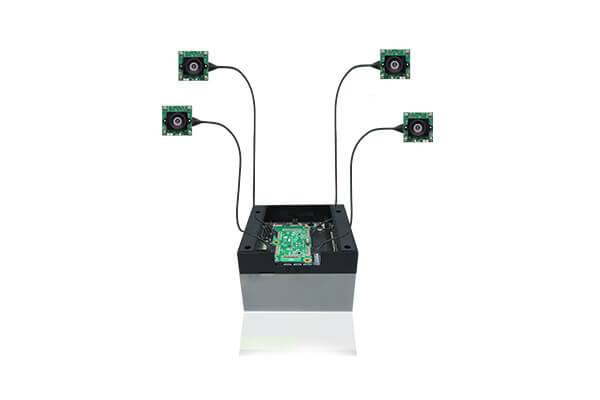

e-CAM27_CUOAGX is a 2MP MIPI CSI-2 global shutter RGB-IR camera for the NVIDIA® Jetson AGX Orin™ platform. It is a multi-camera solution that allows you to connect up to 4 cameras with a single NVIDIA® Jetson AGX Orin™ platform.

This camera is based on the 1/2.9" OV2312 global shutter CMOS Image sensor, and also comes with a fine-tuned image signal processor (ISP). Its ability to capture both RGB and IR images with one global shutter (GS) sensor reduces the number of cameras and hence the total system cost. This RGB-IR dual-mode camera can capture images and videos at high resolutions.

In addition, the IR feature helps to capture excellent images even at night or in zero light conditions. This camera also supports external triggers for multi-camera synchronization as well as synchronization with external sensors such as IMU, GPS, and LiDAR.

Refer pdfDatasheet for complete frame rate details.

  • Key features:

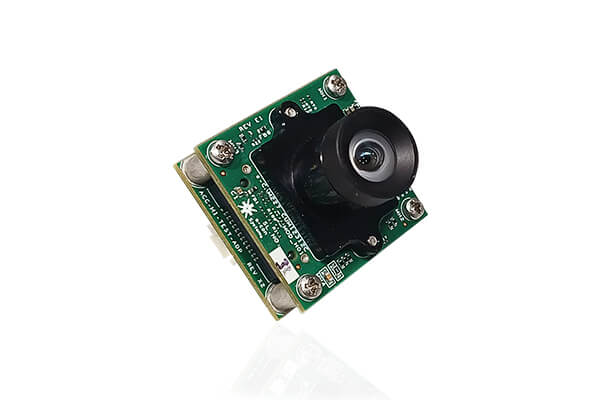

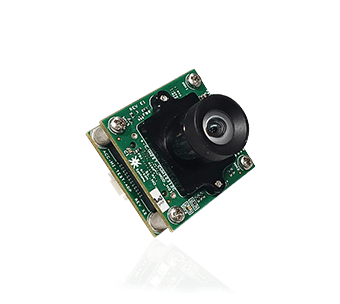

    • Houses e-CAM227_CUMI2312C_MOD - 2MP RGB-IR MIPI camera module
    • Frame Rate: 2MP @ 36 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: RGB - UYVY & IR - UYVY
    • High-speed 4-lane MIPI CSI-2 interface
    • Micro-Coaxial Cable for data transmission (30cm)*
    • External Trigger support for multi-camera synchronization and sensor fusion**
    • Lightweight, versatile, and portable multi-board solution
  • Module features:
    • Sensor: OV2312 from OmniVision™
    • Focus Type: Fixed focus
    • Sensor Resolution: 2MP
    • Chroma: Color , NIR
    • Shutter type: Global Shutter
    • Optical Format: 1/2.9"
    • Output Format: Compressed UYVY
    • Pixel size: 3.0 μm x 3.0 μm
    • SNR: 37.4dB
    • Dynamic Range: 68dB
    • Sensor Active Area: 1600H x 1300V
    • Array Size: 1600 x 1300 Pixels
    • Holder: M12 (S-Mount)
    • FOV: 87.89°(D), 80.86° (H), 50.72° (V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -40°C to +80°C
    • Size in mm (l x b x h) :
      • Module : 30 x 30
      • Adaptor board: 30 x 30
      • Base Board: 75.03 x 40.69
    • Board weight:
      • Without lens: 15.5 Grams
      • With lens: 19.5 Grams
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
  • * - 1-meter cable will be available on special request.
  • ** - Please contact camerasolutions@e-consystems.com
  • Linux camera driver:
  • Full-fledged Linux camera driver for e-CAM27_CUOAGX with NVIDIA® Jetson AGX Orin™ developer kit. The camera driver source code can be ported to any NVIDIA AGX Orin platform.

  • Supported Jetpack & L4T Version:
    • Orin - Jetpack 5.0.2 / L4T 35.1.0
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture at selected resolutions
    • Sample application for image capture & Preview
    • Gstreamer-1.0 support for video recording and network streaming
  • Camera Controls:
    • Brightness
    • Contrast
    • Saturation
    • Gain
    • Sharpness
    • Exposure
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download e-CAM27_CUOAGX Documents

Part No Description Sample Price
(1 Unit)
Purchase
e-CAM27_CUOAGX_1H01R1 2MP RGB-IR MIPI Camera Module with S-Mount holder
-
ContactUs
e-CAM27_CUOAGX_4H01R1 2MP RGB-IR MIPI Camera Module with S-Mount holder(4 Nos) - ContactUs

e-CAM27_CUOAGX_1H01R1-2MP RGB-IR MIPI Camera Module with S-Mount holder

Sample Price (1 Unit)--

ContactUs

e-CAM27_CUOAGX_4H01R1-2MP RGB-IR MIPI Camera Module with S-Mount holder(4 Nos)

Sample Price (1 Unit)--

ContactUs

For all enquiries please write to camerasolutions@e-consystems.com for more details.

Kit Contents:
  • e-CAM27_CUOAGX_1H01R1:
    • e-CAM227_CUMI2312C_MOD - 2MP RGB-IR MIPI Camera Module with S-Mount holder
    • Adaptor board
    • Baseboard
    • Micro coaxial cable
    • Lens
    • Linux Driver & Sample Application
  • e-CAM27_CUOAGX_4H01R1:
    • e-CAM227_CUMI2312C_MOD - 2MP RGB-IR MIPI Camera Module with S-Mount holder(4 Nos)
    • Adaptor board - 4 No's
    • Baseboard - 1 No
    • Micro coaxial cable - 4 No's
    • Lens - 4 No's
    • Linux Driver & Sample Application
  • Please contact camerasolutions@e-consystems.com for any customization or porting of the camera driver to your requirements.
e-CAM27_CUOAGX – Customization
  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
