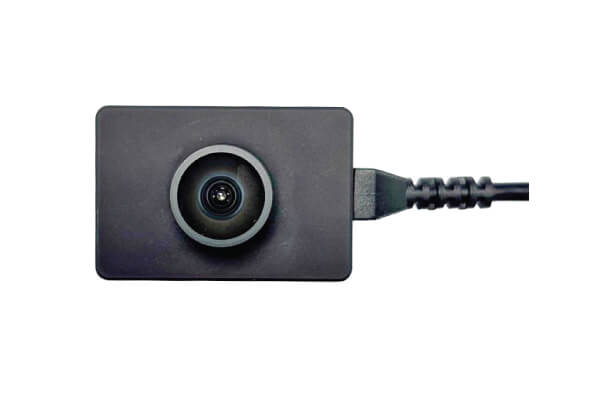

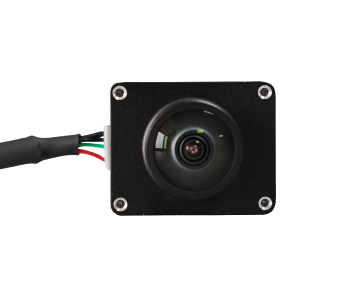

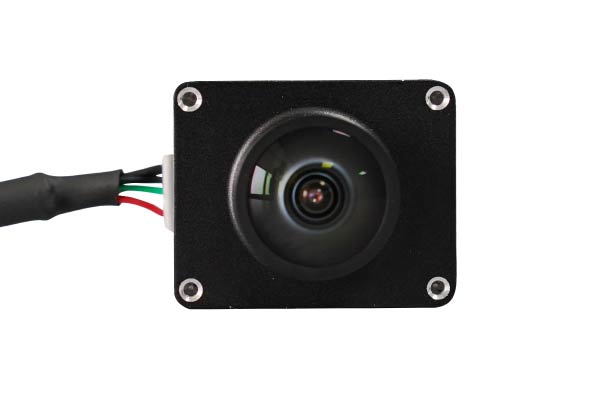

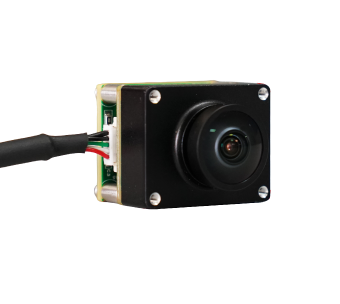

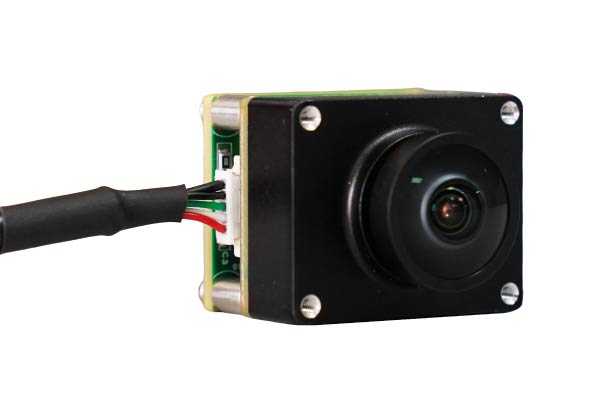

e-CAM212_USB - 2MP Sony IMX662 Low light USB 2.0 Camera

• Key features:
• • Frame Rate: Full HD @ 30 fps , HD @ 30 fps

  • Output format: MJPEG, H.264, H.265
  • Supported OS: Windows, Linux
  • Lightweight, versatile, and portable two-board solution
• Interface:
• • Interface: USB 2.0
  • Connector: JST connector
  • UVC Compliant - no additional drivers required
• Module features:
• • Sensor: Sony Starvis IMX662
  • Focus Type: Fixed focus
  • Sensor Resolution: Full HD
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/2.8"
  • Output Format: MJPEG, H.265 and H.264
  • Focus Distance: 1m to infinity
  • Pixel Size: 2.9 μm x 2.9 μm
  • Sensor Active Area: 1937H x 1097V
  • Dynamic Range: 88 dB
  • FOV: 162.5°(D), 140.5°(H), 77.2°(V) (with the lens provided by e-con)
• Electrical & Mechanical:
• • Operating Voltage: 5V +/- 5%
  • Operating Temperature Range: -30°C to 70°C
  • Power Requirements: TBD
  • Size in mm (l x b x h): 37 x 42 mm (with enclosure)
  • Board Weight: TBD
• Miscellaneous:
• • Compliance: FCC, RoHS

• Supported OS - Windows, Linux
• Sample Application:
• • Edge-CAMView - Windows Camera application for Video recording, Video Preview and Still Capture.
  • QtCAM - Linux Camera application for Video recording, Video Preview and Still Capture.
• Still Image Resolutions :
• 2MP
• Software controls:
• • Exposure (Auto/Manual)
  • White Balance (Auto/Manual)
  • Brightness
  • Saturation
  • Contrast
  • Sharpness
  • Gain
  • HDR
• Still Capture :
• • External trigger signal control
  • Software application control
  • Software trigger
• UVC Controls:
• • Exposure, Gain
  • Brightness, Saturation, Sharpness
  • White Balance - Auto and Manual Modes *

Customers who own platforms that support USB2.0and are interested in evaluating the 2MP USB fixed Focus camera module can directly buy the e-CAM212_USB from e-con Systems™.

Part No	Description	Sample Price (1 Unit)	Purchase
e-CAM212_USB	2MP IMX662 USB 2.0 Camera

In addition to e-CAM212_USB, the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows, Linux). For more details, please refer the evaluation kit contents below.
For all enquiries, please write to camerasolutions@e-consystems.com

Kit Contents:

• Hardware:
• • E-CAM212_USB - 2MP USB 2.0 Camera board
  • Lens
  • USB 2.0 Cable
• Software:
• • Supported OS: Windows, Linux
  • e-CAMView (Windows) / QtCAM (Linux) - Video Preview, Video recording and Still Capture Application

e-CAM212_USB – Customization

• Do you want other customization options?
• Do you want a smaller form factor?
• Do you need LED?
• Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
