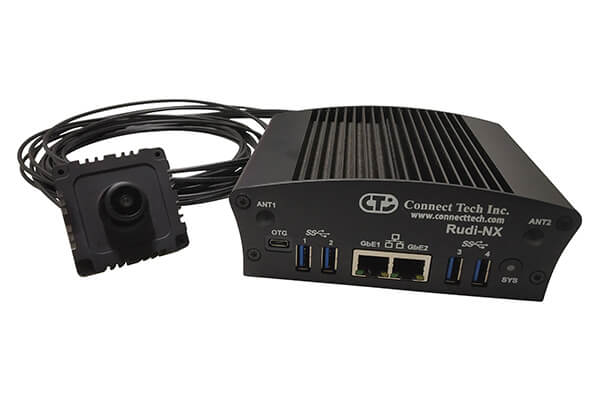

IP67 Full HD GMSL2 HDR camera for Connect Tech's Rudi-NX Embedded System

e-con systems™ has partnered with Connect Tech to deliver an IP67 Full HD GMSL2 HDR camera solution for NVIDIA® Jetson Xavier™ NX based Rudi-NX Embedded System. This camera is based on industrial grade Full HD CMOS sensor bundled with a well-tuned Image Signal Processor (ISP) which is packed in an IP67 Certified enclosure. Its High Dynamic Range (HDR) capability ensures reliable images even in challenging outdoor light conditions. This camera is supplied with IP67 M12 lens which is focussed and glued in our factory.

Key Features

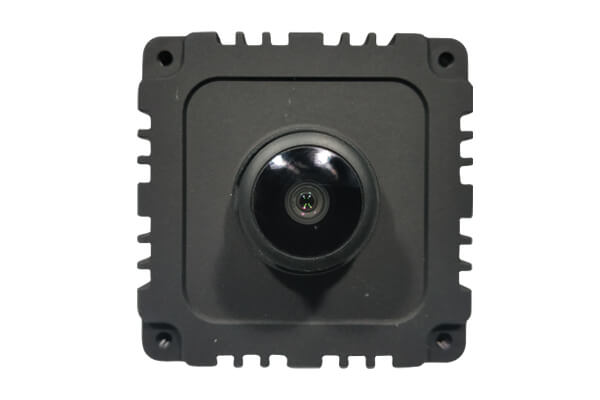

  • Houses Full HD camera module with S-mount lens holder

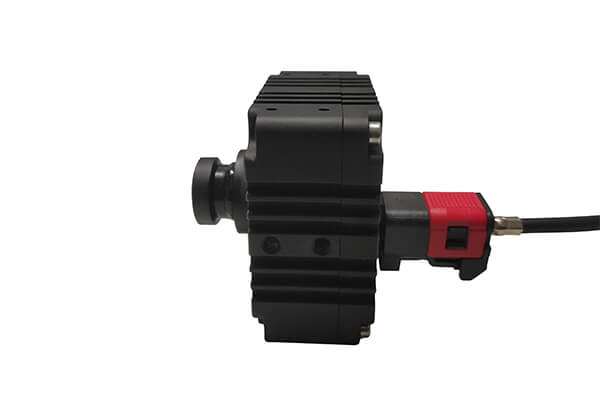

  • Gigabit Multimedia Serial Link 2 (GMSL2) interface with IP67 certified FAKRA connector design
  • IP67 compliant shielded coaxial cables for transmission of both power and data for long distance (up to 15 meters)
  • S-mount IP67 compliant lens focused and glued at our factory
  • Synchronous operation when used with multiple cameras
  • On-board ISP for excellent image quality even in low light environments
  • High Dynamic Range (HDR)
  • Uncompressed UYVY streaming
  • Maximum Image Transfer Rate
  • Resolutions UYVY
    VGA (640 x 480) 60 fps
    QHD (960 x 540) 58 fps
    HD (1280 X 720) 45 fps
    960p (1280 x 960) 34 fps
    FHD (1920 x 1080) 30 fps
  • Operating Temperature: -40°C to +85°C
  • Power Consumption:
    • Max : 2.196W
    • Min : 0.78W
  • Operating Voltage: 5 to 15V with +/- 5% tolerance
  • Storage Temperature: -40°C to +85°C
  • Multiple mounting options including magnetic mount support
  • Small form-factor pluggable camera module with S-mount lens holder
  • Size in mm (l x b): 42 x 42 mm (aluminium enclosure)
  • Compliance: FCC Class A, CE and RoHS
  • IP67 Certified
  • Launched on:launch date
  • Sensor : 1/2.7" Optical format CMOS Image sensor
  • Resolution : Full HD
  • Focus Distance : 1m to Infinity
  • Sensor type : 10 or 12-Bit RGB format
  • Pixel size : 3μm x 3μm
  • Sensor Active Area : 1928H x 1088V
  • Responsivity : 4.0 V/lux-sec
  • SNR : 41 dB
  • Dynamic Range : Max up to 96 dB
  • Shutter Type : Electronic Rolling Shutter
  • ISP : On-board high performance ISP
  • DFOV : Full HD - 124.8°(D), 104.4°(H), 64°(V) (with 1/2.7" AR0230)

Download Rudi-NX Documents:

pdf Rudi-NX - Getting Started Manual

Customization and Porting Services for other Application Processor platforms:

e-con Systems provides camera driver development, customization and porting services on any application platform as per customer requirements. For any driver customization or porting services or for using this Full HD camera with your application processor platform, please contact sales@e-consystems.com along with your requirements details.

Customization

e-con provides customization, development and porting services for the following requirements:

  • Change of lens to meet your FOV and other requirements
  • Support to other NVIDIA Jetson platforms from other vendors
  • To support other processor platforms

Please contact sales@e-consystems.com with your customization requirements.

VOLUME PRICE STARTS FROM

US$279
Camera Customization Contact

Targeted Applications

»  Autonomous Mobile Robots

»  Patrol Robots

»  Fleet Management

»  Surround View System

»  Smart Traffic Management

»  Industrial Robotic Arms

»  Agriculture Robotic Arms
