NeduCAM25 - Full HD Global Shutter FPD-Link III Camera Module

Highlights:

  • AR0234 full HD global shutter camera module
  • Flat Panel Display Link (FPD-Link III) interface with FAKRA connector
  • Coaxial cable to transmit power and data up to 15m
  • External trigger support for synchronized multi-camera streaming
  • On-board high performance ISP
  • Dust and water proof IP67-rated enclosure (optional)

Sample Price


Volume Price
starts at

USD 129

buy now

Excluding Shipment Charges

Technical
documents

Technical documents



Download Document



Evaluate NeduCAM25 with,

NeduCAM25 is a full HD FPD-Link III camera module based on onsemi®'s AR0234 sensor.

It uses the FPD-Link III interface, a shielded coaxial cable for reliable transmission of both power and data for long distances up to 15m with low latency.

Also, this module is capable of streaming high frame rate uncompressed video data of HD at 120 fps, FHD at 65 fps, and 2MP at 60 fps.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame rate: HD at 120 fps, FHD at 65 fps, and 2MP at 60 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Uncompressed UYVY format
    • Transmission of video, audio* and power over 15m coaxial cable
    • Light weight, versatile, and portable design
  • Sensor features:
    • Sensor: AR0234 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 2MP
    • Chroma: Color
    • Optical Format: 1/2.6"
    • Output Format: Uncompressed UYVY
    • Pixel size: 3.0 μm x 3.0 μm
    • Sensor Active Area: 1920H x 1200V
    • Array Size: 1920H x 1200V
    • Responsivity: 56 ke-/lux-sec
    • SNR: 38dB
    • Dynamic Range: 71.4 dB
    • Holder: M12 (S-Mount)
    • FOV: 128.2°(D), 104.6°(H), 61.6°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating voltage: 12V with +/- 5% tolerance
    • Operating Temperature Range: -20°C to 70°C
    • Size in mm (l x b x h) : 30 x 30
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
  • * - Please contact camerasolutions@e-consystems.com.
 Bullat Arrow  Download NeduCAM25 Documents

Documents  2MP OV2312 Global Shutter RGB-IR Camera

Product Code Supported Platforms SAMPLE PRICE
(1 Unit)
NeduCAM25_CUTDA4
Kit Contents

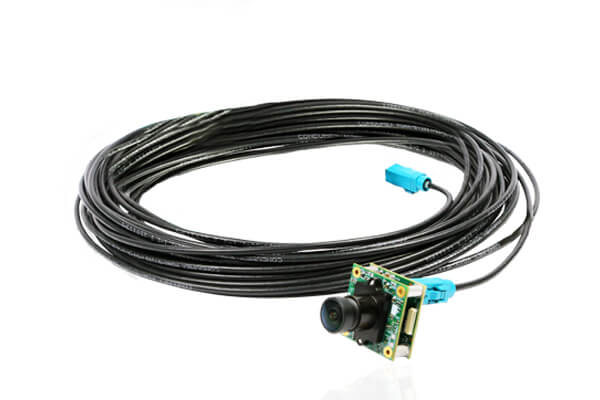

  • NeduCAM25 - a full HD global shutter color camera module with lens
  • 15 meter coaxial cable
  • Deserializer board
Texas Instruments® SK-TDA4VM

NeduCAM25_CUOAGX
Kit Contents
  • NeduCAM25 - a full HD global shutter color camera module with lens
  • 15 meter coaxial cable
  • Deserializer board
NVIDIA® Jetson AGX Orin™ / AGX Xavier™ Dev Kits

NeduCAM25
Kit Contents
  • NeduCAM25 - a full HD global shutter color camera module with lens
  • 15 meter coaxial cable
ConnectTech's Forge Orin AGX Dev Kit ContactUs

NeduCAM25_CUTDA4-Texas Instruments® SK-TDA4VM

Sample Price (1 Unit)-

buy now

NeduCAM25_CUOAGX-NVIDIA® Jetson AGX ORIN / Xavier™ Dev Kits

Sample Price (1 Unit)-

buy now

ARM Based Solution-ConnectTech's Forge Orin AGX Dev Kit

ContactUs



NeduCAM25 - Customization and Porting Services for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NeduCAM25 on any application platform as per customer requirements.

NeduCAM25 - Customization:

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
