RouteCAM_CU86_IP67 - 4K Sony IMX678 Low light & HDR GigE Camera

Tags: Other GigE Cameras | Low-light Cameras

Highlights:

  • Power-over-Ethernet camera with IEEE 802.3af compliance
  • Houses 4K Sony® STARVIS™ 2 IMX678 Image Sensor
  • Exceptional Low light performance and HDR
  • On-board high performance ISP
  • PTP Network Time Synchronization **
  • IP67-Rated (When M12 cable is connected)
  • Compatible with CloVis Central™ - Device Management Platform
  • IP67-Rated Enclosure

Sample Price

ContactUs

Documents

Download Document

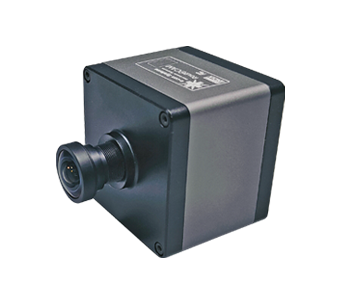

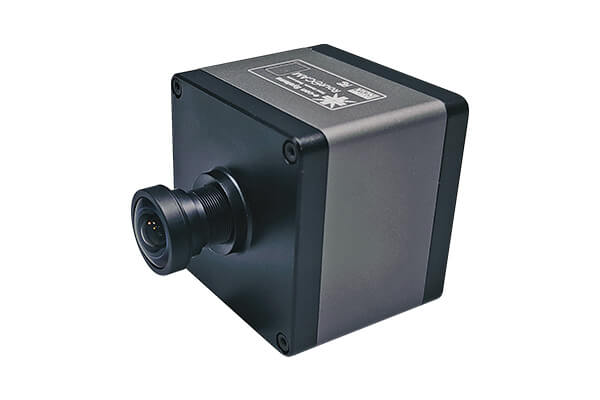

RouteCAM_CU86_IP67 is an 8MP HDR GigE camera featuring the 1/1.8" Sony® IMX678 image sensor. Its high-performance in-built ISP enables the camera to adapt to varying lighting conditions with Auto Exposure and ensures accurate color reproduction through Auto White Balance, making it well-suited for low-light applications.

The GigE interface supports video data transmission over cable lengths of up to 100 meters, offering flexibility in system integration. The use of long, durable, and easily available M12 to RJ45 cables makes this camera ideal for demanding environments such as automotive and autonomous driving, smart surveillance, and embedded vision applications. The M12 lens holder further enhances design flexibility by allowing developers to choose lenses that meet their specific application needs.

This camera is compatible with CloVis Central™, an easy-to-use and powerful cloud-based device management platform that manages entire on-field device operations, enabling faster time to market, reduced costs, and enhanced application success rates.

e-con Systems offers sample applications showcasing the camera’s features for both Windows and Linux platforms. The camera is also compatible with any ONVIF (Open Network Video Interface Forum)-compliant application, enabling seamless integration into a wide range of systems.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: 4K @ 30 fps & Full HD @ 30 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Compressed MJPEG, H.264, H.265 (HEVC)

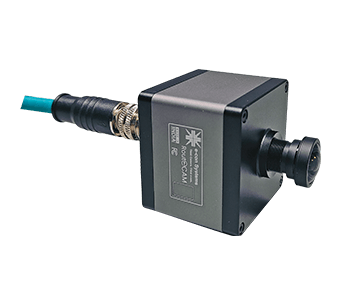

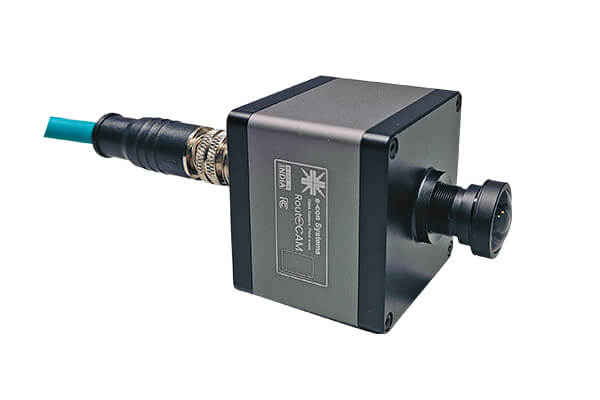

    • Shielded Cat6 M12 to RJ45 cable for transmission of both power and data for long distance (up to 100m)
    • Auto Exposure & Auto White Balance
    • Supports 10Base-T, 100Base-TX and 1000base-T modes
    • Standard M12 metal lens holder for use with customized optics or lenses for various applications
    • Pan, Tilt and Digital Zoom support
    • Unique ID for each camera
    • Basic ONVIF compliance
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GigE

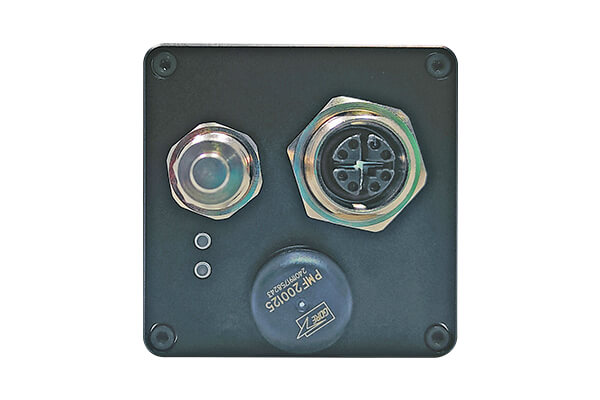

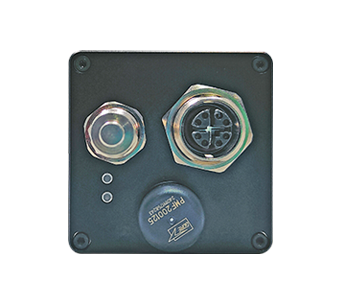

    • Connector: M12
    • Cable length: 3m
  • Module features:
    • Sensor: Sony® Starvis2 IMX678
    • Focus Type: Fixed focus
    • Sensor Resolution: 8 MP
    • Chroma: Color
    • Shutter type: Electronic Rolling Shutter
    • Optical Format: 1/1.8"
    • Output Format: RAW Bayer 10/12-bit
    • Pixel size: 2.0 μm x2.0 μm
    • Sensor Active Area: 3856 (H) x 2176 (V)
    • Holder: S-Mount
    • FOV - 116.19°(D), 98.69°(H), 55.18°(V)
  • Electrical & Mechanical:
    • Operating Voltage: TBD
    • Operating Temperature Range: TBD
    • Power requirements: 3.78 W
    • Size in mm (l x b x h) :
      • Without lens: 46mm x 46mm x 52.95mm
      • With lens: 48mm x 48mm x 53.1mm
    • Board weight: TBD
  • Compliance:
    • Compliance: FCC, RoHS
  • * - Not available with off-the-shelf version. Please contact camerasolutions@e-consystems.com for more details.
  • * - For PTP network sync support, please contact camerasolutions@e-consystems.com
  • Supported OS – Windows & Linux
  • Supported Profiles - ONVIF supported Profiles S & T
  • Supported Streaming formats - MJPEG, H.265 and H.264
  • Supported Protocols - RTSP, RTCP, TCP/IP, UDP, HTTP, NTP, PTP, IPV4 & DHCP
  • Ethernet IP Configuration - DHCP
  • Features of RouteCAM Viewer Application
    • Automated IP Discovery & Streaming
    • Support for Camera Controls
    • Provision for changing resolution and format available in Linux.
  • Linux Socket Application for extended Camera features
  • OTA (Over-The-Air) Upgrade *
  • Software controls:
    • Brightness
    • Contrast
    • Saturation
    • White balance
    • Gamma
    • Gain
    • H Flip
    • V Flip
    • Sharpness
    • Exposure
    • Focus (only for liquid lens)
    • ROI size
    • Denoise
    • Exposure Compensation
  • Compatible with CloVis Central™ *, an easy-to-use and powerful cloud-based device management platform delivering a complete solution for remote configuration and maintenance. Ready-to-deploy software tailored to your application needs, with customization options available to meet specific requirements.
  • * - Available on request. Please contact camerasolutions@e-consystems.com for more details.
RouteCAM_CU86_IP67 Documents:
 Bullat Arrow  Datasheet

Download RouteCAM_CU86_IP67 Documents

RouteCAM_CU86_IP67 – Customization
  • Do you need a different lens to meet your FOV and other requirements?
  • Do you need a lens with motorized control?
  • Do you want a different form factor?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
