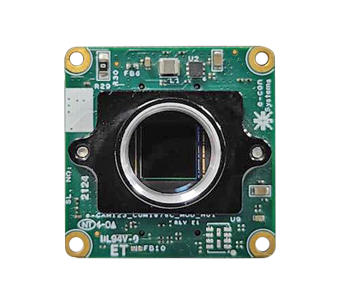

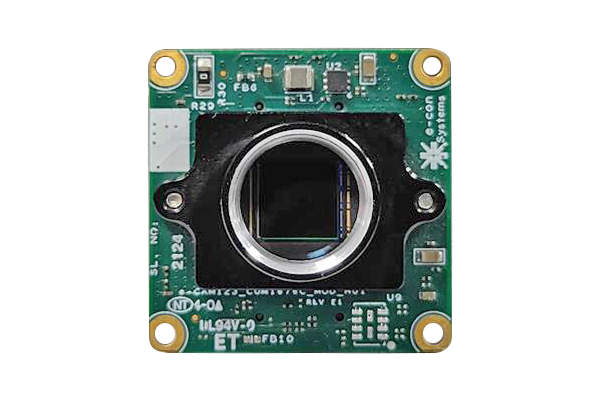

The e-CAM123_CUMI676C_MOD is a high-performance camera module built around the Sony® STARVIS 2 IMX676 1/1.6″ CMOS rolling shutter sensor, featuring a 12MP resolution with a square pixel array and high sensitivity.
This sensor’s STARVIS 2 technology offers excellent low-light performance through back-illuminated pixel design and enhanced sensitivity across visible and near-infrared (NIR) light, making it capable of capturing clear and detailed images even in challenging lighting conditions.
With its combination of high resolution and strong low-light/NIR sensitivity, the module is suitable for a wide range of demanding applications including security and surveillance, sports analytics, automotive vision, and industrial inspection where sharp imaging and robust performance are essential.
Enhanced Low-Light Performance
Superior NIR Sensitivity
High Resolution (12MP)
Clear HDR / DoL HDR
| Product Name | Interface | Supported Platforms | Max no. of Cameras | Sample Price |
|---|---|---|---|---|
| e-CAM123_CUONX | MIPI CSI-2 | NVIDIA Jetson Orin NX | 1 |
|
Module Feature :
| Module Features | |
|---|---|
| Sensor | Sony® Starvis 2 IMX676 |
| Focus Type | Fixed Focus |
| Resolution | 12.63MP |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/1.6" |
| Output Format | RGB RAW 10-bit/12-bit |
| Pixel Size | 2.0 μm x 2.0 μm |
| Sensor Active Area | 3552 (H) x 3552 (V) |
Key Features :
| Key Features | |
|---|---|
| Frame Rate | 12MP @ 30fps, Full HD @ 60 fps |
| Output format | RGB RAW 10-bit/12-bit |
| Compliance |
|
| Electrical and Mechanical | |
| Operating Voltage | 3.3V ±5% |
| Operating Temperature Range |
|
| Typical Power Consumption (W) |
|
| Size in mm (l x b) |
|
