e-CAM82_CUOAGX - 4K SONY STARVIS™ IMX485 ultra low light camera for NVIDIA® Jetson AGX Orin™

e-CAM82_CUOAGX is an 8 MP ultra-lowlight MIPI CSI-2 camera for NVIDIA® Jetson AGX Orin™. This Orin camera is based on the Sony STARVIS™ IMX485 CMOS image sensor which helps to produce superior image quality in both visible and low light conditions. This is made possible by its large sensor size of 1/1.2" and a pixel size of 2.9μm. This large sensor size in conjunction with the high resolution of the camera also helps capture better details of the scene of interest. Further, e-CAM82_CUOAGX comes with superior NIR sensitivity at both 850nm and 940 nm, making it suitable for night vision applications.

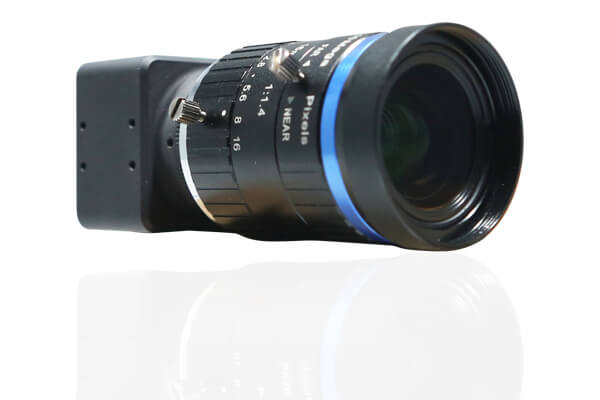

e-CAM82_CUOAGX is a multicamera solution with the ability to connect up to 6 cameras* to a single NVIDIA® Jetson AGX Orin™ developer kit. It is capable of streaming 4K @ 60 fps and 1080p @ 90fps. It uses the NVIDIA Jetson AGX Orin™ Image Signal Processor (ISP) for image processing and finetuning. This IMX485 camera also comes with a CS-Mount lens holder, allowing it to utilize the full field of view offered by the sensor. Read More »

  • Houses e-CAM84_CUMI485C_MOD - 8MP Sony® STARVIS Camera Module with CS-mount lens holder.
  • Ultra-Low light performance
  • High-speed 4-lane MIPI CSI-2 interface to connect with the CPU
  • Plugs into NVIDIA® Jetson AGX Orin™ developer kit
  • Uses NVIDIA® Internal Image Signal Processor (ISP) for image processing
  • Uncompressed YUV (NV12) streaming
  • Frame Rate: Streams 4K @ 60fps & Full HD @ 90fps
    Refer pdfDatasheet for complete frame rate details.
  • Operating Voltage: 3.3V +/- 5%
  • Operating Temperature Range: - 30°C to 70°C
  • Power consumption: ~700mW
  • GStreamer-1.0 support for video recording and network streaming
  • Micro-Coaxial Cable Length : 30 cm
  • board size in mm (l x b):
    • without enclosure: 30 x 30 mm
    • with enclosure: 35 x 35 mm
  • Lightweight, versatile, and portable solution
  • Compliance:
    • RoHS
  • Launched on: launch date
  • * - Please contact camerasolutions@e-consystems.com for more details.

Sensor:IMX485 sensor from SONY®

Focus Type:Fixed focus

Sensor Resolution:8MP


Shutter Type:Electronic Rolling Shutter

Optical Format:1/1.2"

Output Format:RAW Bayer 10/12-bit

Pixel size:2.9 μm x2.9 μm

Sensor Active Area:3864H x 2180V

Array Size:3864(H) × 2200(V)

Holder:CS-Mount *

DFOV:35.75° (with the lens provided by e-con)

* - CS-Mount holder comes with an enclosure. CS-Mount to C-Mount converter is also available.

Download e-CAM82_CUOAGX - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM82_CUOAGX Datasheet

pdf e-CAM82_CUOAGX Lens Datasheet

 Bullat Arrow  User Manual

pdf e-CAM82_CUOAGX Getting Started Manual

pdf e-CAM82_CUOAGX Developer Guide

pdf e-CAM82_CUOAGX eCAM Argus Camera Build and Install Guide

pdf e-CAM82_CUOAGX Linux App User Manual

pdf e-CAM82_CUOAGX GStreamer Usage Guide

pdf e-CAM82_CUOAGX Release Package Manifest

 Bullat Arrow  Compliance

pdf Declaration of conformity for e-CAM82_CUOAGX

Download Selected Documents

Linux camera driver:

Full-fledged Linux camera driver for e-CAM82_CUOAGX with NVIDIA® Jetson AGX Orin™ developer kit. The camera driver source code can be ported to any NVIDIA AGX Orin platform.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson AGX Orin™ - Jetpack 5.1 / L4T 35.2.1
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected sensor modes (eCAM_argus_camera)
  • Camera Controls
    • Exposure (both manual and automatic)
    • Sensor Gain
    • Exposure Time
    • Frame Rate
    • Sensor Mode Index
  • Customized LibArgus application for streaming, image capture, and video recording

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.


  • e-CAM84_CUMI485C_MOD - Ultra low-light MIPI camera module
  • Adaptor board
  • Base board
  • Micro coaxial cable
  • CS-Mount to C-Mount converter (Optional)
  • Lens (optional)
  • Metal enclosure
  • Linux Driver & Sample Application


  • e-CAM84_CUMI485C_MOD - Ultra low-light MIPI camera module (4 Nos)
  • Adaptor board (4 Nos)
  • Baseboard - 1 No
  • Micro coaxial cable - 4 No's
  • CS-Mount to C-Mount converter (Optional) - 4 No's
  • Lens (optional) - 4 No's
  • Metal enclosure - 4 No's
  • Linux Driver & Sample Application

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.
