Sony STARVIS IMX462 Ultra Low-Light Camera for NVIDIA Jetson AGX Orin / AGX Xavier

Overview

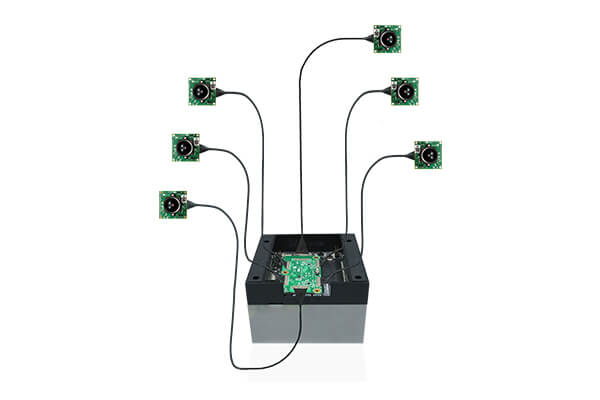

The e-CAM22_CUOAGX is a full HD camera that houses the advanced SONY STARVIS™ IMX462 color CMOS image sensor. This camera is directly compatible with the NVIDIA® Jetson AGX Orin™ / Xavier™ development kit, it harnesses the power of NVIDIA® ISP for top-notch image processing capabilities.

The e-CAM22_CUOAGX's high sensitivity allows it to capture images in even the most challenging lighting scenarios, reaching an astounding 0 lux. With its superior low-light performance and seamless integration with the NVIDIA® Jetson AGX Orin™ / Xavier™ development kit, the e-CAM22_CUOAGX presents a powerful and versatile camera option for a wide range of applications, including night vision, medical microscopes, and more.

Refer Datasheet for complete frame rate details.

Specifications

Key features:
- Frame Rate: HD @ 60 fps, Full HD @ 60fps
  Refer Datasheet for complete frame rate details.
- Standard M12 lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
Interface:
- Interface: MIPI CSI-2
- Connector: Micro coaxial cable with I-PEX (CN2) connector
- Cable Length: 30cm (1m*)
Module features:
- Sensor: IMX462 sensor from SONY® Starvis
- Focus Type: Fixed focus
- Sensor Resolution: 2MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.8"
- Output Format: RAW 12-bit
- Pixel Size: 2.9μm x 2.9μm
- Sensor Active Area: 1937H x 1097V
- Array Size: 1937H x 1097V
- Holder: M12 (S-Mount)
- FOV: 132.0° (D), 113° (H), 61° (V) (with the lens provided by e-con)
Electrical & Mechanical:
- Operating Voltage: 3.3V +/- 5%
- Operating Temperature Range: - 30°C to 70°C
- Typical power consumption: TBD
- Size in mm (l x b x h): 30mm x 30mm
Miscellaneous:
- Compliance: RoHS
Launched on:

Documents

Datasheet

e-CAM22_CUOAGX Datasheet

e-CAM22_CUOAGX Lens Datasheet

User Manual

e-CAM22_CUOAGX Getting Started Manual

e-CAM22_CUOAGX Developer Guide

e-CAM22_CUOAGX Gstreamer Usage Guide

e-CAM22_CUOAGX Release Package Manifest

e-CAM22_CUOAGX eCAM Argus Build and Install Guide

e-CAM22_CUOAGX eCAM Argus App User Manual

Software

Linux camera driver:

Full-fledged Linux camera driver for e-CAM22_CUOAGX with NVIDIA® Jetson AGX Orin™ / AGX Xavier™ developer kit. The camera driver source code can be ported to any NVIDIA AGX Orin platform.

Supported Jetpack & L4T Version
- NVIDIA® Jetson AGX Orin™ / AGX Xavier™ - Jetpack 5.1.2 L4T 35.4.1
V4L2 Linux driver for MIPI CSI-2 camera module:
- Video preview
- Still Image capture
- Camera controls via IOCTLs
Sample application with source Code for Linux:
- Video Preview
- Still Image capture
Camera Controls:
- Exposure Time Range
- Gain Range
- ISP Digital Gain Range
- Sensor Mode Index
- Frame Rate
- De-Noise Mode
- De-Noise Strength
- Edge Enhance Mode
- Edge Enhance Strength
- Auto Exposure (AE) Antibanding Mode
- Auto White Balance (AWB) Mode
- Exposure Compensation
- AE Lock
- AWB Lock
- Output Size
Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

Customization

e-CAM22_CUOAGX - Customization for other Application Processor platforms:

e-con provides customization for e-CAM22_CUOAGX on any application platform as per customer requirements.

e-CAM22_CUOAGX - Customization

e-con provides customization for the following requirements:

PCB form-factor customization for any shape, connector and orientation
Lens holder customization for C/CS mount lens holder
Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.

e-CAM22_CUOAGX - Sony® STARVIS™ IMX462 Ultra Low-Light Camera for NVIDIA® Jetson AGX Orin™ / AGX Xavier™
