e-CAM30_CUNANO - 3.4 MP Camera for NVIDIA® Jetson Nano™/ NVIDIA® Jetson Xavier™ NX

e-CAM30_CUNANO is a 3.4 MP 2 lane MIPI CSI-2 custom lens camera board for NVIDIA® Jetson Nano™/ Xavier™ NX developer Kit. This camera is based on 1/3" AR0330 CMOS Image sensor from onsemi® with 2.2 μm pixel.

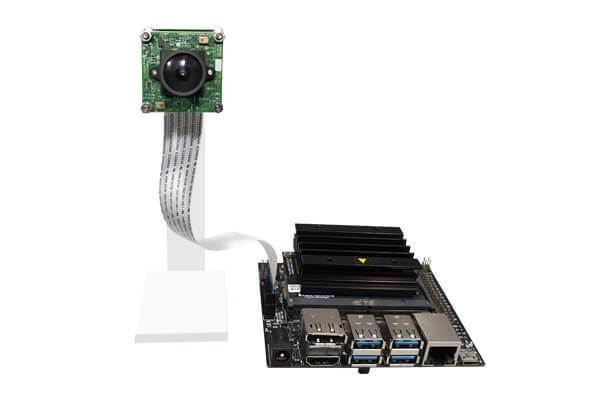

e-CAM30_CUNANO can be directly interfaced with NVIDIA® Jetson Nano™ Developer Kit / NVIDIA® Jetson Xavier™ NX Developer Kit using J13 connector on Jetson Nano™ or J1 and J9 connectors on Jetson Xavier™ NX. e-CAM30_CUNANO is exposed as a standard V4L2 device and customers can use the V4L2 APIs to access this camera and control the same.

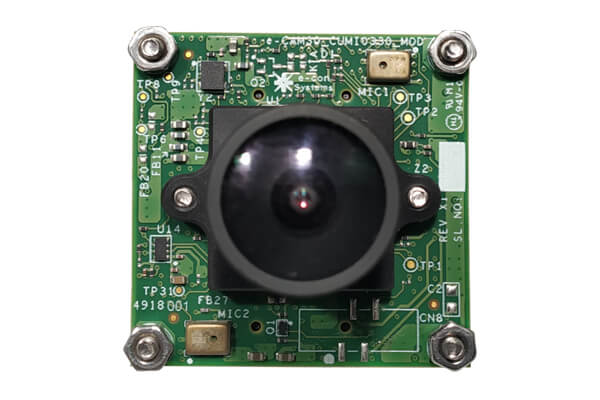

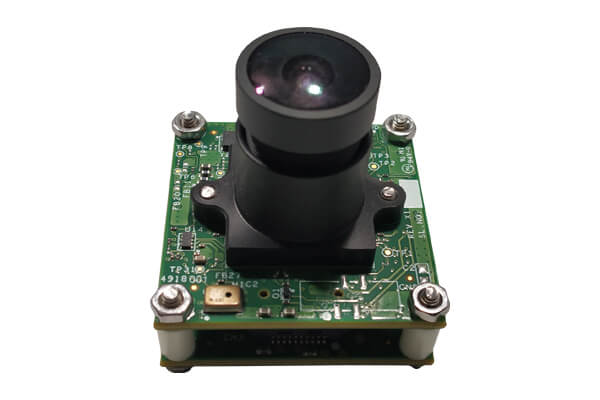

  • Houses e-CAM30A_CUMI0330_MOD - 3.4 MP Camera Module with S-mount lens holder
  • Multi board solution
  • High-speed 2-lane MIPI CSI-2 interface to connect with the CPU
  • Plugs in to NVIDIA® Jetson Nano™/ Xavier™ NX Developer Kit
  • Frame Rate:
  • Resolutions UYVY
    VGA 60 fps
    HD (720p) 60 fps
    Full HD (1080p) 60 fps
    3MP 45 fps
    3.4 MP 38 fps
  • Operating Voltage : 3.3V +/- 5%, Current - 351mA
  • Linux camera driver (V4L2) for 3.4 MP MIPI CSI-2 camera module
  • Operating Temperature Range: -30°C to 70°C
  • Power Consumption:
    • Max : 1.16W
    • Min : 0.76W
  • Board Weight - 12 Grams (with out lens)
                               17.5 Grams (with lens)
  • Sample application for image capture & Preview
  • Gstreamer-1.0 support for video recording and network streaming
  • Lightweight, versatile, and portable design
  • RoHS compliant
  • Launched on:launch date

Sensor:1/3" Optical format CMOS Image sensor.

Focus Type:Fixed focus

Resolution:3.4 MP

Pixel size:2.2 µm x2.2 µm

Sensor Active Area:2304H x 1536V

Responsivity:2 V/lux-sec

SNR:39 dB

Dynamic Range:69.5 dB

Output Format:Uncompressed UYVY format

Shutter type:Electronic Rolling Shutter

Holder:S-Mount

ISP:On-board high performance ISP

Array Size:The e-CAM30_CUNANO supports max up to 2304x1536 pixels for 3.4 MP

DFOV : 3.4 MP - 118° (with the lens provided by e-con)

Linux camera driver:


Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM30_CUNANO on NVIDIA® Jetson Nano™/ Xavier™ NX developer kit

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson Nano™ - JetPack 4.6 L4T 32.6.1
    • NVIDIA® Jetson Xavier™ NX - JetPack 5.1.1 L4T 35.3.1
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic)
    • Gamma
    • Gain
    • Horizontal Flip
    • Vertical Flip
    • Sharpness
    • Exposure (both manual and automatic)
    • Zoom
    • Tilt
    • Pan

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM30_CUNANO - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM30A_CUMI0330_MOD Datasheet

pdf e-CAM30_CUNANO Datasheet

pdf e-CAM30_CUNANO Lens Datasheet

 Bullat Arrow  User Manual

pdf e-CAM30_CUNANO Getting Started Manual

pdf e-CAM30_CUNANO Linux App User Manual

pdf e-CAM30_CUNANO Gstreamer Usage Guide

pdf e-CAM30_CUNANO Release Package Manifest

pdf e-CAM_TK1 GUVCView Build & Installation Guide

pdf e-CAM30_CUNANO Developer Guide

Download Selected Documents

Kit Contents:

  • e-CAM30A_CUMI0330_MOD - 3.4 MP MIPI Camera Module with lens
  • Adaptor Board
  • Flex Cable (15 cm)
  • Linux Driver & Sample Application
  • Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.
