e-CAM221_CUMI462_MOD - Sony® Starvis™ IMX462 Ultra-Lowlight Camera Module

e-CAM221_CUMI462_MOD is a Full HD MIPI ultra low light camera module. This MIPI camera module is based on a SONY® STARVIS™ IMX462LQR sensor that ensures superior near-infrared performance.

The high sensitivity of this Full HD camera module helps to capture images in as extremely low lighting conditions as 0 lux, which makes it suitable for night vision applications and medical microscopes.

e-CAM221_CUMI462_MOD has an inbuilt Image Signal Processor (ISP) which performs auto exposure and auto white balance functions. This fixed focus camera module has an M12 lens holder which allows customers to choose and use the lens according to their requirement.

Evaluate e-CAM221_CUMI462_MOD with,

Key Features

  • Full HD RAW RGB camera based on Sony® Starvis™ IMX462 CMOS image sensor
  • Ultra low light sensitivity
  • Superior near-infrared performance
  • 1/2.8" Optical Form-factor
  • MIPI CSI-2 video output
  • On-board microcontroller to interface with sensor through I2C interface
  • Supports High Conversion Gain (HCG) and Low Conversion Gain (LCG) modes
  • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
  • RGB RAW 10-bit/12-bit data per pixel
  • Maximum Image Transfer Rate
  • Resolutions 10 bit RGB 12 bit RGB
    HD (1280 x 720) 120 fps 60 fps
    Full HD (1920 x 1080) 120 fps 60 fps
  • Operating Temperature Range: -30°C to 85°C
  • Typical power consumption: 900 mW
  • Small form-factor pluggable camera module with S-mount lens holder
  • 30mm x 30mm size. Height depends on the Lens
  • Compliance
    • FCC
    • RoHS
  • Launched on: 20-10-2021

Sensor:1/2.8" Optical format CMOS Image sensor

Focus Type:Fixed focus

Resolution:Full HD

Chroma:Color

Pixel size:2.9 μm x 2.9 μm

Sensor Active Area:1937H x 1097V

Output Format:RAW 10/12 bit

Shutter type:Electronic Rolling Shutter

Holder:S-Mount

G sensitivity:1300mV for HCG mode and 650mV for LCG mode

Array Size:1937 x 1097 Pixels

DFOV :Full HD - 121.35° (with the lens provided by e-con)

Evaluation Kit:

Product Code Supported Platforms Sample Price
e-CAM22_CUNX
Kit-content
  • e-CAM221_CUMI462_MOD - 2MP MIPI Camera Module with lens
  • Adaptor board
  • Base board
  • Micro Coaxial Cable

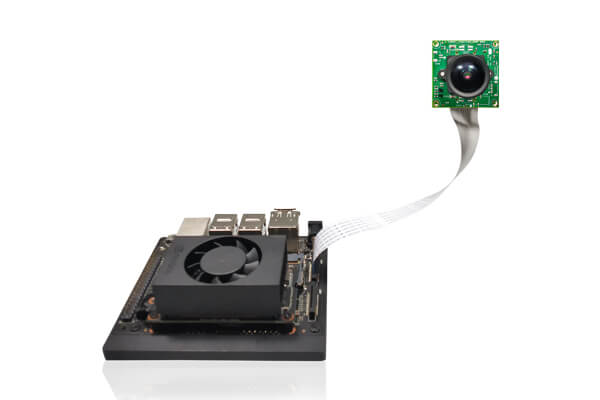

»  NVIDIA® Jetson Xavier™ NX CMOS USB Camera Customization
e-CAM23_CUXVR
Kit-content
  • e-CAM221_CUMI462_MOD - 2MP MIPI Camera Module with lens
  • Adaptor board
  • Flex Cable (15 cm)
»  NVIDIA® Jetson AGX Xavier™ CMOS USB Camera Customization

USB version - See3CAM_CU27 is also available,

USD 199
buy e-con camera



Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact sales@e-consystems.com and explain their requirement.

e-CAM221_CUMI462_MOD - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM222_CUMI2311_MOD on any application platform as per customer requirements.

e-CAM221_CUMI462_MOD Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/CS mount lens holder
  • Driver development for any OS: Linux, Android
  • Interfacing with any Application Processor : NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX Xavier, Nano and any other processor
  • Camera and features customization based on specific requirements

SAMPLE PRICE

CMOS USB Camera Customization

USB version of this camera is
also available

Full HD ultra-low light MIPI camera

Targeted Applications

»  Smart Surveillance

»  Smart Traffic Systems

»  In-Vehicle Surveillance

»  Fluorescence Imaging

»  Dark Field Microscopy

»  Bright Field Microscopy

»  Ophthalmology

»  Food Quality Inspection

»  Crop monitoring

»  Vegetation index measurement
