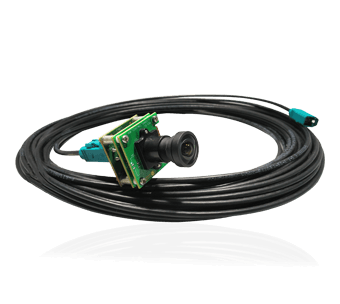

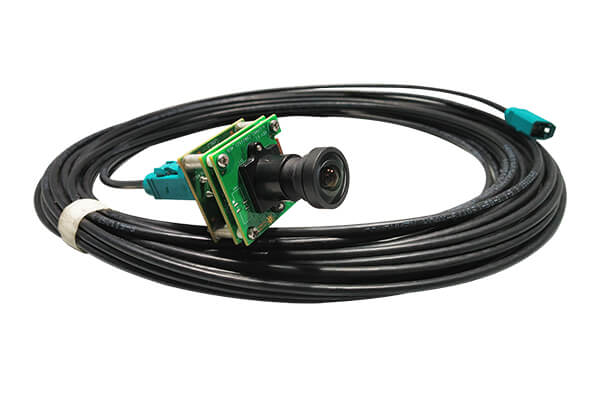

NileCAM81 - 8MP GMSL2 Camera Module with 15m cable support

Highlights:

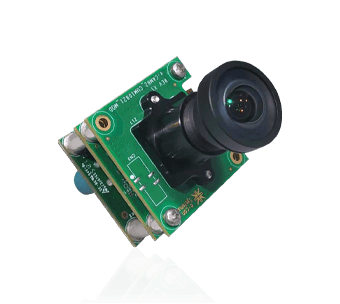

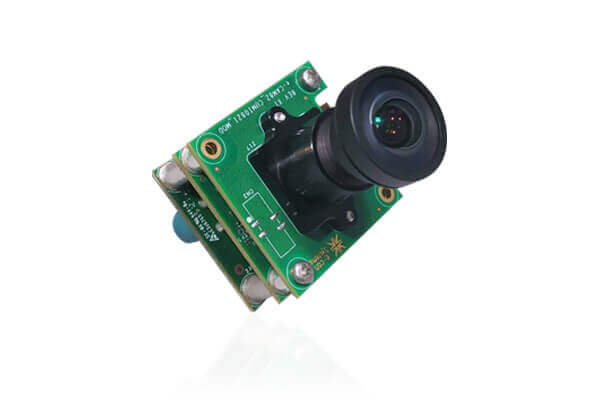

  • Houses AR0821 8MP Camera Module with S-mount lens holder
  • Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector
  • Shielded coaxial cable to transmit power and data up to 15m
  • On-board high performance ISP
  • Optional IP67-rated enclosure with antifogging capability

Sample Price

Documents

Excluding Shipment Charges

Evaluate NileCAM81 with,

NileCAM81 is a 4K HDR GMSL 2 camera based on a 1/1.7-inch AR0821 sensor with a large pixel size. This HDR camera has a high-performance onboard ISP that comes with auto exposure and auto white balance functions, which provide the best possible image output

Also, this 4K AR0821 camera has an M12 lens holder which offers customers an opportunity to use the lens of their choice. NileCAM81 is an NVIDIA Jetson camera which can be connected to both NVIDIA Jetson AGX Xavier and NVIDIA Jetson AGX Orin using GMSL 2 interface.

This GMSL camera streams high frame rate uncompressed video data of HD at 60 fps, FHD at 60 fps, and 8MP at 16 fps up to a distance of 15 meters with very low latency.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: Streams 8MP @ 16 fps & Full HD @ 60 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Uncompressed UYVY format
    • S-mount lens holder for flexibility to choose a lens as per application requirements
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: AR0821 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/1.7"
    • Output Format: Uncompressed UYVY
    • Pixel Size: 2.1μm x 2.1μm
    • Sensor Active Area: 3848H x 2168V
    • Array Size: 3848H x 2168V
    • Responsivity: 15.4 Ke-/luxsec
    • SNR: 41.8 dB
    • Dynamic Range: Max upto 100 dB
    • Holder: M12 (S-Mount)
    • FOV: 120°(D), 104.8°(H), 58.7°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption: 1.13W
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
Part No Supported Platforms Sample Price
(1 Unit)
Purchase
NileCAM81_CUOAGX
Kit Contents
  • NileCAM81 - AR0821 4K HDR GMSL2 camera
  • Deserializer board
  • 15 meters coaxial cable
NVIDIA® Jetson AGX Orin™/ AGX Xavier™ Dev Kit
NileCAM81_CUNX
Kit Contents
  • NileCAM81 - AR0821 4K HDR GMSL2 camera
  • Deserializer board
  • 15 meters coaxial cable
NVIDIA® Jetson Xavier™ NX Dev Kit
-
ContactUs
ARM Based Solution
Kit Contents
  • NileCAM81 - AR0821 4K HDR GMSL2 camera
  • Deserializer board
  • 15 meters coaxial cable
STEVIE Carrier and Dev Kit
-
ContactUs
ARM Based Solution Solectrix's proFRAME Base Board 3.0 PCIe - ContactUs

NileCAM81_CUOAGX-NVIDIA® Jetson AGX Orin™/ AGX Xavier™ Dev Kit

Sample Price (1 Unit)-

buy e-con camera

NileCAM81_CUNX-NVIDIA® Jetson Xavier™ NX Dev Kit

Sample Price (1 Unit)

ContactUs

ARM Based Solution-STEVIE Carrier and Dev Kit

Sample Price (1 Unit)

ContactUs

ARM Based Solution-Solectrix's proFRAME Base Board 3.0 PCIe

ContactUs



 Bullat Arrow  Datasheet

Download Full HD GMSL2 Camera Documents

NileCAM81 - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NileCAM81 on any application platform as per customer requirements.

NileCAM81 - Customization

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
