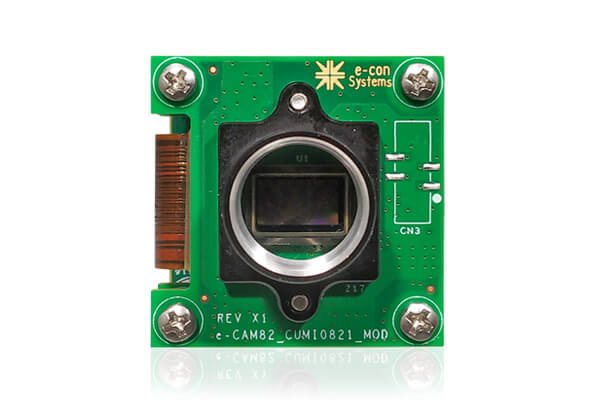

e-CAM82_CUMI0821_MOD - 8MP (4K) HDR MIPI Camera Module

e-CAM82_CUMI0821_MOD is an HDR, 8MP (4K) custom lens camera module based on 1/2" AR0821 CMOS image sensor from onsemi®.

e-CAM82_CUMI0821_MOD has a compact form factor and has an M12 lens holder which gives customers an opportunity to choose their own optics. The HDR capability of this 4K camera helps in producing exceptionally clear and sharp images in challenging lighting conditions.

This color camera supports UYVY image format and can stream data of HD and Full HD @ 30 fps. e-CAM82_CUMI0821_MOD is designed to connect with any application processor that has a MIPI interface.

Evaluate e-CAM82_CUMI0821_MOD with,

  • 8MP (4K) color camera with 4-lane MIPI CSI-2 interface.
  • 1/2" Optical Form-factor.
  • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements.
  • Uncompressed UYVY streaming
  • Frame Rate:
    • Full HD @ 30 fps, 4K @ 30 fps (HDR Mode)
    • Full HD @ 60 fps, 4K @ 30 fps (Linear Mode)
    Refer pdfDatasheet for complete frame rate details.
  • Power consumption: 1.13 W
  • Operation Temperature Range : -30° to 70° C
  • Small form-factor
  • Size in mm (l x b) : 30 x 30 mm (Height depends on the Lens)
  • Board Weight: 12 Grams
  • Compliance
    • FCC
    • RoHS
  • Launched onlaunch date

Sensor: AR0821 from onsemi®

Focus Type:Fixed focus

Resolution:8MP

Chroma:Color

Optical Format:1/2" Optical format

Pixel Size:2.1 µm x2.1 µm

Output Format: Uncompressed UYVY

Sensor Active Area:3848H x 2168V

Responsivity:15.4 ke-/lux-sec

SNR:41.8 dB

Dynamic Range:Max upto 140 dB

Shutter Type:Electronic Rolling Shutter

Holder:M12 (S-Mount)

Array Size:3848H x 2168V

DFOV :8MP - 120° (with the lens provided by e-con)

Download e-CAM82_CUMI0821_MOD Documents:

pdf e-CAM82_CUMI0821_MOD - 8MP Camera Module Datasheet
Product Code Supported Platforms Sample Price
USB Interface
See3CAM_CU81
Kit-contents
  • e-CAM82_CUMI0821_MOD - 8MP MIPI Camera Module with lens
  • Lens (Optional)
  • »  USB 3.0 Camera Solutions
USD 199
buy e-con camera
MIPI Interface
e-CAM81_CUNX
Kit-contents
  • e-CAM82_CUMI0821_MOD - 8MP MIPI Camera Module with Lens
  • Adaptor board
  • Flex Cable (15 cm)
  • »  NVIDIA® Jetson TX2 NX / Xavier™ NX / Nano Developer Kit
USD 199
buy e-con camera
e-CAM81_CUXVR
Kit-contents
  • e-CAM82_CUMI0821_MOD - 8MP MIPI Camera Module with Lens
  • Adaptor board
  • Base board
  • One Micro Coaxial Cable
  • »  NVIDIA® Jetson AGX Xavier™ Developer Kit
USD 249
buy e-con camera
GMSL2 Interface
NileCAM81_CUOAGX
Kit-contents
  • NileCAM81 - AR0821 4K HDR GMSL2 camera
  • Deserializer board
  • 15 meters coaxial cable
  • »  NVIDIA® Jetson AGX Orin™/ AGX Xavier™ Dev Kit
USD 699
Buy NileCAM81_CUOAGX Camera online
NileCAM81_CUNX
Kit-contents
  • NileCAM81 - AR0821 4K HDR GMSL2 camera
  • Deserializer board
  • 15 meters coaxial cable
  • »  NVIDIA® NVIDIA® Jetson™ Xavier NX Dev Kit

e-CAM82_CUMI0821_MOD - Customization for other Application Processor

e-con provides customization for this e-CAM82_CUMI0821_MOD on any application platform as per customer requirements.

e-CAM82_CUMI0821_MOD Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/CS mount lens holder
  • Driver development for any OS: Android
  • Interfacing with any Application Processor : Freescale i.MX8, NVIDIA Jetson TX2/Xavier and any other processor
  • Camera and ISP features customization based on specific requirements

Please contact sales@e-consystems.com for customization requirements.
