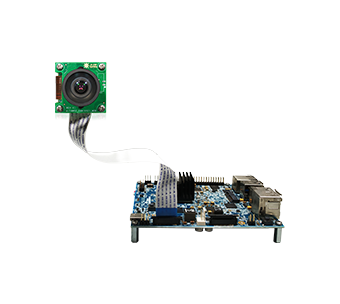

e-CAM81_CUTDA4 - 4K HDR Camera for Texas Instruments® SK-TDA4VM

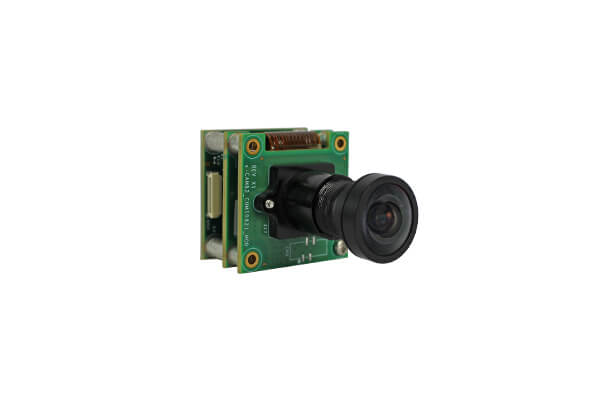

  • Houses e-CAM82_CUMI0821_MOD - 8MP (4K) Camera Module with S-mount lens holder
  • High Dynamic Range (HDR)
  • High-speed MIPI CSI-2 interface
  • On-board high performance ISP
  • Plugs into Texas Instruments® SK-TDA4VM

Sample Price

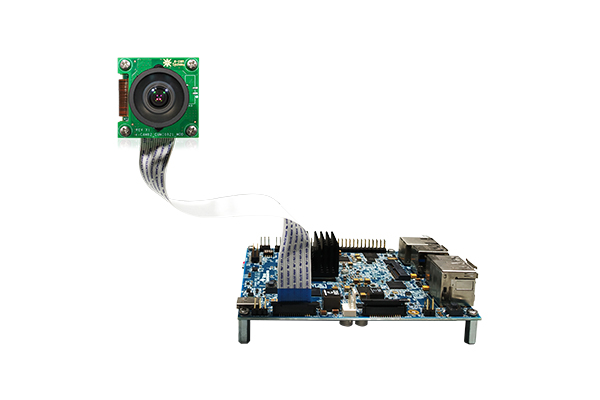

e-CAM81_CUTDA4 is a 4K custom lens HDR camera that features a 1/1.7" AR0821 CMOS sensor from onsemi®. This camera is designed to seamlessly integrate with Texas Instrument's SK-TDA4VM - TDA4VM processor starter kit. This camera setup includes e-CAM82_CUMI0821_MOD - 8MP (4K) camera module with a S-mount lens holder. This lens holder allows customers to use customized optics or lenses to suit their specific application needs.

This embedded camera solution offers a comprehensive vision solution for product developers focused on building Edge AI based embedded vision systems. With HDR capability, e-CAM81_CUTDA4 excels in producing remarkably clear and sharp images even in challenging lighting conditions. Its seamless performance in varying lighting conditions opens up numerous possibilities across various applications.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Full HD @ 60 fps, 4K @ 16 fps
      Refer pdfDatasheet for more details.
    • Uncompressed UYVY streaming
    • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements.
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: FPC Cable
    • Cable Length: 15m
  • Module features:
    • Sensor: AR0821 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/1.7"
    • Output Format: Uncompressed UYVY
    • Pixel Size: 2.1 μm x2.1 μm
    • Sensor Active Area: 3848H x 2168V
    • Array Size: 3848H x 2168V
    • Responsivity: 15.4 ke-/lux-sec
    • SNR: 41.8 dB
    • Dynamic Range: Max upto 100 dB
    • Holder: M12 (S-Mount)
    • FOV: 120°(D), 104.8°(H), 58.7°(V) (with the lens provided by e-con)
  • Electrical and Mechanical:
    • Operating Voltage: 3.3 V +/- 5%
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption: 0.92W
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: FCC, RoHS
  • Launched on: launching date
  • * - Please contact camerasolutions@e-consystems.com.

e-con Systems provides Gstreamer and V4L2 commands that demonstrate the features of this camera. However, this camera can also be utilized by any V4L2 application.

Linux camera driver:

  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Camera Controls
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic)
    • Gain
    • Gamma
    • Exposure (auto, manual and region of interest (ROI) basedexposure)
    • Horizontal Flip
    • Vertical Flip
    • ROI Window Size
    • CAM mode
    • Denoise
    • Exposure Compensation
    • Power line frequency selection
    • Special Effects
  • Please contact camerasolutions@e-consystems.com for any customization requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download Full HD USB Camera Documents

Kit contents:
  • Houses e-CAM82_CUMI0821_MOD - 8MP (4K) Camera Module with Lens.
  • Adaptor board
  • FPC cable (15cm)
  • Linux Driver
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

Targeted Applications
