NileCAM82 - Sony® STARVIS™ IMX485 4K GMSL2 Camera Module

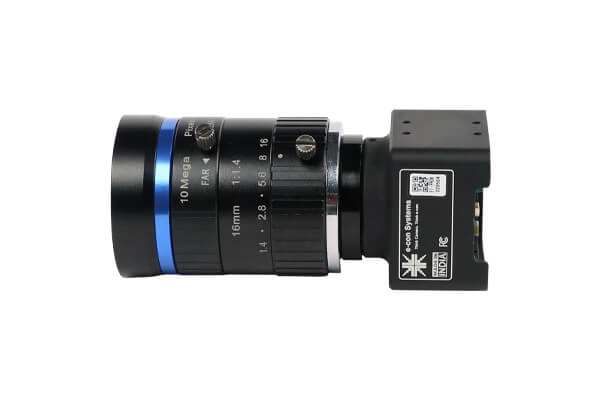

  • Houses Sony® Starvis™ IMX485 Camera Module with CS-mount lens holder
  • Sony® Starvis™ IMX485 (1/1.2")
  • Ultra low light sensitivity

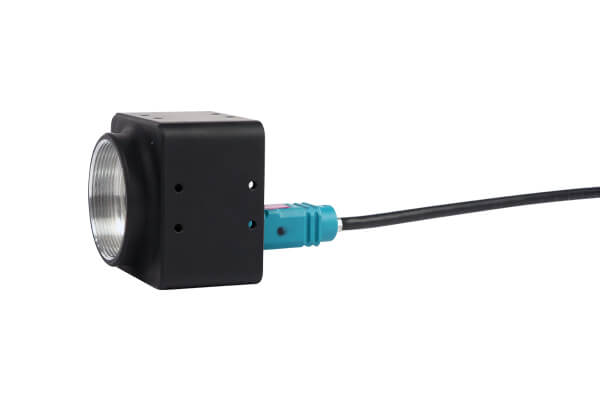

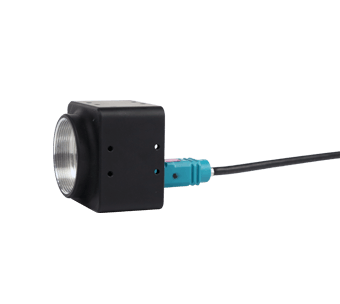

  • Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector
  • Shielded coaxial cable to transmit power and data up to 15m

Sample Price


Evaluate NileCAM82 with,

NileCAM82 is an 8MP GMSL2 camera module based on the Sony® IMX485 sensor. The large sensor size of 1/1.2" and pixel size of 2.9μm helps to produce high-quality images in both visible and low-light conditions.

This low-light camera module can be connected to both NVIDIA Jetson AGX Xavier and NVIDIA Jetson AGX Orin using GMSL 2 interface.

Also, this GMSL 2 camera is capable of streaming uncompressed video data in Full HD @ 62fps and 4K @ 39fps up to a distance of 15 meters with very low latency.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: Streams Full HD @ 62fps and 4K @ 39fps
      Refer pdfDatasheet for complete frame rate details.
    • Output Format: YUV(NV12)
    • CS-mount lens holder for flexibility to choose a lens as per application requirements
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: IMX485 sensor from SONY® Starvis
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/1.2"
    • Output Format: RAW 10-bit
    • Pixel Size: 2.9 μm x 2.9 μm
    • Sensor Active Area: 3864(H) x 2180(V)
    • Array Size: 3864(H) x 2200(V)
    • Holder: CS-Mount*
    • FOV: 33° (D), 29° (H), 15° (V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption: TBM
    • Size in mm (l x b):
      • Without enclosure: 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
  • * - CS-Mount holder comes with an enclosure. CS-Mount to C-Mount converter is also available.
Part No Supported Platforms Sample Price
(1 Unit)

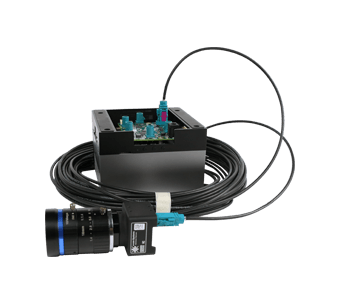

Kit Contents
  • NileCAM82 - IMX485 8MP GMSL2 camera
  • Deserializer board
  • 12V Adapter
  • 15M meters coaxial cable
NVIDIA® Jetson AGX Orin™ Dev Kit
Kit Contents
  • NileCAM82 - IMX485 8MP GMSL2 camera
  • Deserializer board
  • Three meters coaxial cable
Qualcomm® Robotics RB5 Vision Kit

NileCAM82_CUOAGX-NVIDIA® Jetson AGX Orin™ Dev Kit

Sample Price (1 Unit)--


NileCAM82_CUQRB5-Qualcomm® Robotics RB5 Vision Kit

Sample Price (1 Unit)--



 Bullat Arrow  Datasheet

Download Full HD GMSL2 Camera Documents

NileCAM82 - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization, and porting services for NileCAM82 on any application platform as per customer requirements.

NileCAM82 - Customization

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact
