18MP AR1820HS Six Synchronized Camera for NVIDIA Jetson AGX ORIN™

Overview

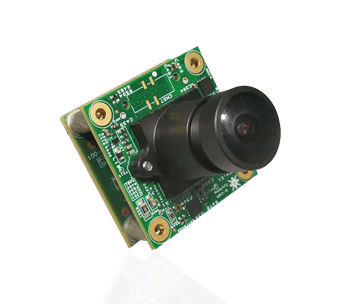

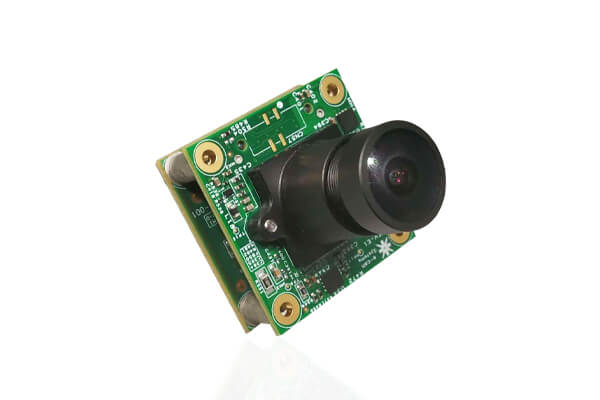

e-CAM180_CUOAGX is an 18 MP multi-camera solution for the NVIDIA® Jetson AGX ORIN™ development kit. It is based on the 1/2.3-inch AR1820 sensor from onsemi®. This MIPI camera provides image output at a resolution of 18 MP with great details.

This camera uses the NVIDIA® Jetson ISP to produce best-in-class image output in uncompressed YUV format. e-CAM180_CUOAGX is an ideal solution for applications such as smart surveillance systems, smart traffic management systems, parking lot management systems, smart streets lights, automatic number plate recognition systems, and digital microscopes.

Refer Datasheet  for more details.

Specification

Key features:
- Frame Rate: 18MP @ 14 fps and Full HD @ 120fps
  Refer Datasheet for more details.
- Uncompressed NV12 streaming
- Standard M12 lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
Interface:
- Interface: MIPI CSI-2
- Connector: Micro coaxial cable with I-PEX (CN2) connector
- Cable Length: 30cm
Module features:
- Sensor: AR1820HS from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: 18MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.3"
- Output Format: 10-bit/12-bit Raw format
- Pixel Size: 1.25μm x 1.25μm
- Sensor Active Area: 4912H x 3684V
- Array Size: 4912H x 3684V
- Responsivity: 56 Ke-/luxsec
- SNR: 36.3 dB
- Dynamic Range: 65.8 dB
- Holder: M12 (S-Mount)
- FOV: 133.9°(D), 110.4°(H), 67°(V) (with the lens provided by e-con)
Electrical and Mechanical:
- Operating Voltage: 3.3V +/- 5%
- Operating Temperature Range: -30°C to 70°C
- Typical power consumption: 3.696W
- Size in mm (l x b x h):
  - Camera board: 30mm x 30mm
  - Base Board: 75.03mm x 40.69mm
Miscellaneous:
- Compliance: RoHS
Launched on:

Software

Linux camera driver:

Full-fledged linux camera driver for e-CAM180_CUOAGX with NVIDIA® Jetson AGX Orin™ developer kit. The camera driver source code can be ported to any NVIDIA AGX Orin platform.

Supported Jetpack & L4T Version:
- Jetson AGX ORIN / Xavier™ - Jetpack 5.1 L4T35.2.1
V4L2 Linux driver for MIPI CSI-2 camera module:
- Video preview
- Still Image capture
- Camera controls via IOCTLs
Sample application with source Code for Linux:
- Video Preview
- Still Image capture at selected sensor modes (eCAM_argus_camera)
Camera Controls:
- Exposure Time Range
- Gain Range
- ISP Digital Gain Range
- Sensor Mode Index
- Frame Rate
- Output size
- Output path
- De-Noise Mode
- De-Noise Strength
- Edge Enhance Mode
- Edge Enhance Strength
- Auto Exposure (AE) Antibanding Mode
- Auto White Balance (AWB) Mode
- Exposure Compensation
- AE Lock
- AWB
* - Customized LibArgus application for streaming, image capture, and video recording
Please contact camerasolutions@e-consystems.comfor any customization or porting of camera driver to your requirements.

Documents

Datasheet

e-CAM180_CUOAGX Datasheet

e-CAM180_CUOAGX Lens Datasheet

User Manual

e-CAM180_CUOAGX Getting Started Manual

e-CAM180_CUOAGX Developer Guide

e-CAM180_CUOAGX eCAM Argus Camera Build and Install Guide

e-CAM180_CUOAGX Gstreamer Usage Guide

e-CAM180_CUOAGX Release Package Manifest

e-CAM180_CUOAGX eCAM Argus Camera App User Manual

Kit contents

e-CAM180_CUOAGX

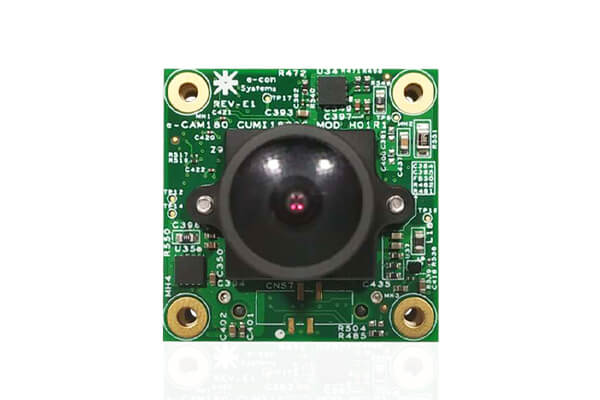

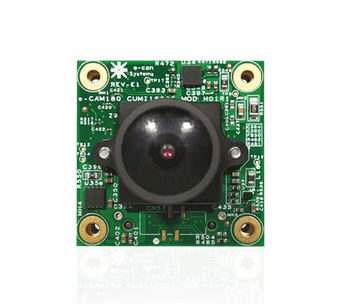

e-CAM180_CUMI1820_MOD - 18 MP AR1820HS MIPI camera module
Adaptor board
Base board
Micro coaxial cable
Lens (optional)
