8MP(4K) RGB-IR Camera Module

Overview

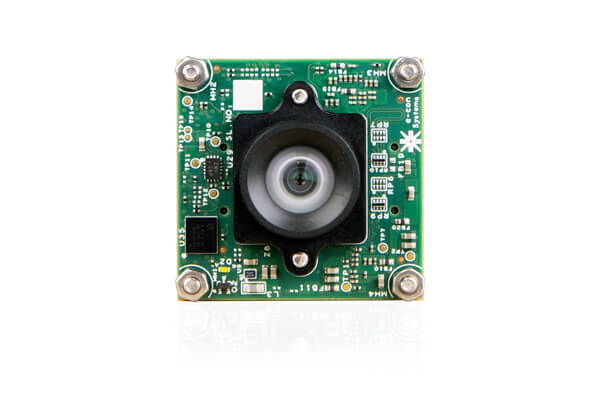

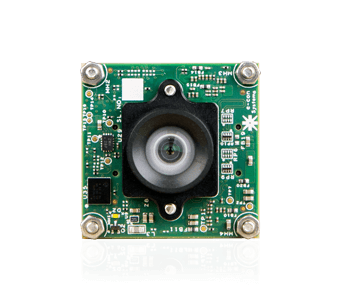

8MP RGB-IR rolling shutter camera module is capable of capturing both RGB and IR frames. This 8MP RGB-IR camera module can be connected to processing platforms using a USB or MIPI CSI 2 interface.

It has an S-mount (M12) lens holder, allowing customers to choose and use the lens according to their requirements.

Refer Datasheet for complete frame rate details.

Specifications

Key features:
- Framerate:
- - UYVY (RGB): Full HD at 60 fps & 8MP (4K) at 15 fps
  - Y16 (RGB + IR): 5MP @12fps & 4K@7fps
  Refer Datasheet for complete frame rate details.
- Output format: Uncompressed UYVY, Y16
- High-speed MIPI CSI-2 interface
- S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
- Small form-factor
Module features:
- Sensor: AR0830 from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: 8MP
- Chroma: Color, NIR
- Shutter type: Electronic Rolling Shutter
- Optical Format: 1/2.9"
- Output Format: Uncompressed UYVY, Y16
- Pixel size: 1.4 μm x 1.4 μm Back Side Illuminated (BSI)
- Sensor Active Area: 3840 (H) x 2160 (V)
- Array Size: 3840 (H) x 2160 (V)
- SNR: 39.9dB
- Dynamic Range: 73dB
- Holder: M12 (S-Mount)
- FOV: TBD
Electrical & Mechanical:
- Operating Voltage: 3.3V +/- 5%
- Operating Temperature Range: -30°C to +85°C
- Power requirements: TBD
- Size in mm (l x b) : 30 x 30 mm
Miscellaneous:
- Compliance: RoHS

Documents

Evaluation kit

USB Interface
Part No	Description	Sample Price (1 Unit)	Purchase
See3CAM_CU83	8MP RGB-IR USB 3.2 Gen 1 camera	-

See3CAM_CU83-8MP RGB-IR USB 3.2 Gen 1 camera

Sample Price (1 Unit) --

Customization

8MP RGB-IR Camera Module - Customization for other Application Processor platforms:

e-con provides customization for 8MP RGB-IR Camera Module on any application platform as per customer requirements.

8MP RGB-IR Camera Module - Customization

e-con provides customization for the following requirements:

PCB form-factor customization for any shape, connector and orientation
Lens holder customization for C/CS mount lens
Driver development for any OS: Linux, Android
Interfacing with any Application Processor : NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX Xavier, Nano and any other processor
Camera and features customization based on specific requirements
Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.

e‑CAM85_CUMI0830C_NIR_MOD - 8MP AR0830 RGB-IR Camera Module

Evaluate 8MP RGB-IR Camera Module with,

USB 3.2 Gen 1 Camera
