RouteCAM_CU25_IP67 - AR0234CS Global Shutter Full HD GigE Camera

Highlights:

  • Power-over-Ethernet (PoE) camera with IEEE 802.3af compliance
  • Houses Full HD onsemi® AR0234 color Image Sensor
  • Global Shutter
  • On-board high performance ISP
  • PTP Time & Frame Synchronization*
  • Compatible with CloVis Central™ - Device Management Platform

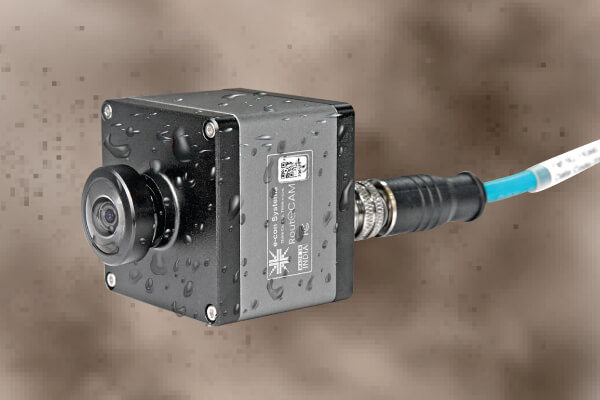

  • IP67-Rated Enclosure

Sample Price


Volume Price
starts at

USD 99

buy now

Excluding Shipment Charges

Technical
documents



RouteCAM Download Document



Technical Documents

RouteCAM_CU25 is a Full HD Global Shutter GigE camera for accurate and fast capture of moving scenes at 60 fps in full resolution. This global shutter camera captures images at a high frame rate, which helps to minimize frame-to-frame distortion and reduce motion blur while capturing fast-moving objects to produce smoother images with greater scene details. The GigE interface of this camera enables the transfer of video data with a maximum cable length of up to 100m. With its PTP time and frame synchronization capabilities, RouteCAM_CU25 camera achieves sub-microsecond levels of time synchronization and ensures that frames captured by multiple Ethernet cameras are precisely synchronized.

RouteCAM_CU25_IP67 camera seamlessly integrates with our cutting-edge cloud-based device management platform, CloVis Central™, providing comprehensive remote management of all on-field device operations.

This GigE camera comes with an in-built ISP that ensures superior image quality leveraging the auto white balance and auto exposure functions. It also has an M12 lens holder that offers product developers the ability to choose the lens of their choice. Further, it can stream compressed Full HD data at 60 fps in the MJPEG, H.264, and H.265 formats.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: HD @ 60 fps & Full HD @ 60 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Compressed MJPEG, H.264, H.265

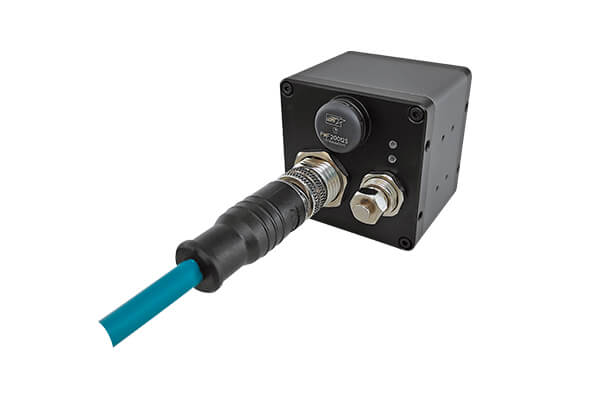

    • Shielded Cat6 M12 to RJ45 cable for transmission of both power and data for long distance
    • S-mount lens focused and glued at factory
    • Supports 10Base-T, 100Base-TX and 1000base-T modes
    • Unique ID for each camera
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GigE
    • Connector: M12
    • Cable length: 3m
  • Module features:
    • Sensor: AR0234CS from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter type: Global Shutter
    • Optical Format: 1/2.6"
    • Output Format: Compressed MJPEG, H.264, H.265
    • Pixel size: 3μm x 3μm
    • Sensor Active Area: 1920(H) x 1200(V)
    • Responsivity: 22.3 Ke-/luxsec
    • SNR: 38 dB
    • Dynamic Range: 71.4 dB
    • Holder: M12 (S-Mount)
    • FOV: 140°(D), 120.5°(H), 67.38°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Power-up Options:
      • IEEE802.3af standard PoE Input through M12 Connector
      • 12V supply through M8 connector for non-POE applications
    • Operating Temperature Range: -30°C to 70°C
    • Power requirements: 3.08W
    • Size in mm (l x b x h) :
      • Without lens: 46mm x 46mm x 52.95mm
      • With lens: 46mm x 46mm x 65.12mm
  • Standards and Compliance:
  • Launched on: launching date
  • * - For PTP Time & Frame synchronization support, please contact camerasolutions@e-consystems.com
  • Supported OS - Windows, Linux
  • Supported Profiles - ONVIF supported Profiles S & T
  • Supported Streaming formats - MJPEG, H.265 and H.264
  • Ethernet IP Configuration - DHCP/Static IP Configuration
  • Features of RouteCAM Viewer Application
    • Automated IP Discovery & Streaming
    • Support for Camera Controls
    • Provision for changing resolution and format available in Linux.
  • Linux Socket Application for extended Camera features
  • OTA (Over-The-Air) Upgrade *
  • Software controls:
    • Brightness
    • Contrast
    • Color Saturation
    • Sharpness
    • White Balance Mode
    • Backlight Compensation Mode
    • Wide Dynamic Range Mode (HDR)
    • Exposure
  • Compatible with CloVis Central™ *, an easy-to-use and powerful cloud-based device management platform delivering a complete solution for remote configuration and maintenance. Ready-to-deploy software tailored to your application needs, with customization options available to meet specific requirements.
  • * - Available on request. Please contact camerasolutions@e-consystems.com for more details.
S.No Certification Test Specifications
Immunity standards
1 EN 61000-4-2:2011

EN 61000-4-2:2011 Electrostatic Discharge test, (contact: (+/-8kV) Criterion B, air: (+/-15kV)) Criteria B

2 EN 61000-4-3:2020

Radiated, Radiofrequency, electromagnetic field immunity tests (80 - 6000MHz) @ 3V/m intensity

3 EN 61000-4-4:2013

Signal level Electrical Fast Transient/Burst immunity tests, +/-4kV, Criteria B

Environmental standards
4 ISO 16750-4 Road vehicles

Environmental conditions and testing for electronic equipment.

Part 4: Climatic test methods

5 ISO 16750-3 Road vehicles

Environmental conditions and testing for electronic equipment.

Part 3: Mechanical loads

6 ISO 20653 - 2013

Degrees of protection provided by enclosures IP67

Emission standards
7 FCC Part 15, Subpart B, Class-B

est done according to Federal Communications Commission's (FCC) regulations for electronic devices under subpart B

8 ROHS
Note: The product has been qualified for above standards with simulated control unit. Final Certification to be performed with targeted system & application.



RouteCAM_CU25 Documents:
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual
 Bullat Arrow  Compliance

Download RouteCAM_CU25_IP67 Documents

Part No Description Sample Price
(1 Unit)
Purchase
RouteCAM_P_CU25_CXLC_IP67_H01R2
    • 2MP IP rated Ethernet camera with around 140° DFOV optical lens
    • POE injector setup
    • 3m M12 to ethernet cable
buy e-con camera

RouteCAM_P_CU25_CXLC_IP67_H01R2-2MP IP rated Ethernet camera with around 140° DFOV optical lens, 3m M12 to ethernet cable and with POE injector setup

Sample Price (1 Unit)-USD 349

buy e-con camera



RouteCAM_CU25 – Customization
  • Do you need a different lens to meet your FOV and other requirements?
  • Do you need a lens with motorized control?
  • Do you want a different form factor?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

ContactUs

Frequently Asked Questions

Targeted Applications

  • Patient monitoring systems
