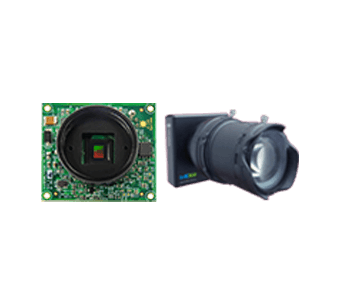

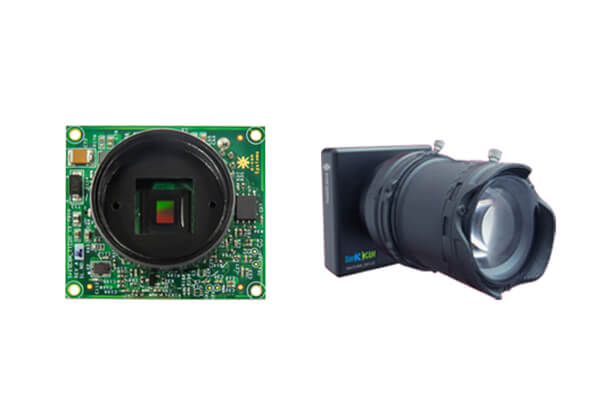

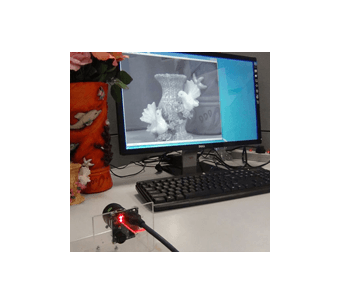

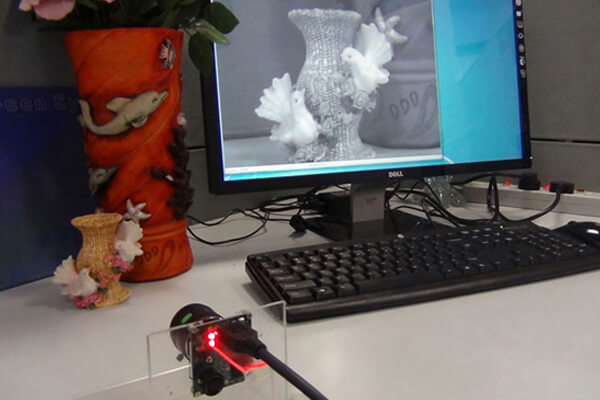

See3CAM_10CUG - 1.3 MP Global Shutter Camera (Monochrome / Color (RAW Bayer))

The See3CAM_10CUG is a 1.3 MP Custom Lens CMOS USB 3.0 Global Shutter Camera Module. This is a S/CS/C Mount USB global shutter camera and is UVC-compliant SuperSpeed USB 3.0 Camera. It is based on the Aptina / ON Semiconductor AR0134 CMOS sensor. See3CAM_10CUG is also backward compatible with USB 2.0 host ports and does not require any special camera drivers.

The See3CAM_10CUG, Color(RAW Bayer)/Monochrome USB camera is capable of supporting 720p@60fps (HD) and 1280x960 resolution@45 fps (Full Resolution) when interfaced to a USB 3.0 host port.

Customer Speaks:

The support team provided fast response and right to the point. The quality of support was very good. Read More..

- Trond Løke, Norsk Elektro Optikk AS

Key Features of See3CAM_10CUG Global Shutter Cameras:

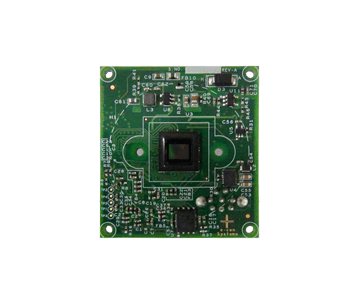

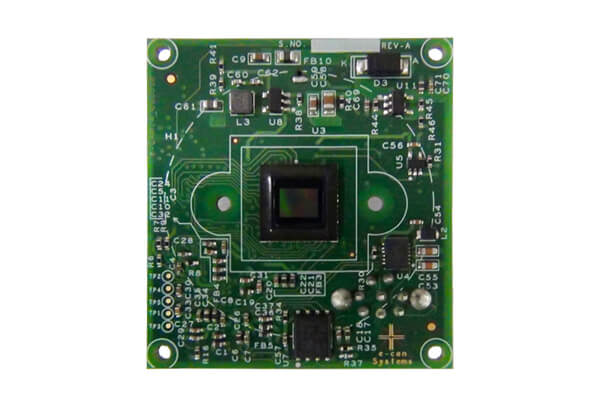

  • Houses 1.3 MP AR0134 CMOS Image sensor (Monochrome/ RAW Bayer)
  • Fixed Focus
  • Global Shutter
  • Plug-and-Play (UVC compliant) and Backward compatibility with USB2.0 hosts with limited features and capabilities
  • Output format:
    1. Monochrome version - YUY2 (16bits per pixel YUV422 format)
    2. Color version - RAW Bayer (8bits per pixel Bayer RGB format)
  • Frame Rate
  • USB 3.0 USB 2.0
    VGA (binned) 45 fps 30 fps
    HD (720p) 60 fps 12 fps
    Full resolution 45 fps 9 fps
  • Supported OS: Windows 10, Windows 8, Windows 7 & Linux
  • USB 3.0 device with USB 3.0 Micro-B connector. Our Standard camera board will have USB 3.0 Micro-B connector.
  • Operating Voltage - 5V ± 250mV
  • Temperature Range : -40° to +85°C
  • Power requirements
    1. 500 mA for USB 2.0
    2. 900mA for USB 3.0
  • External Trigger input (optically isolated)
  • Lightweight, versatile, and portable design
  • Single Board Solution

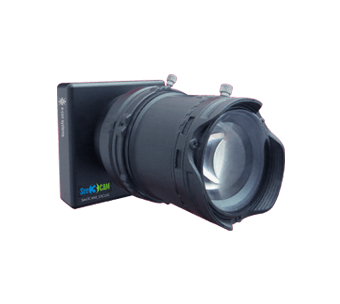

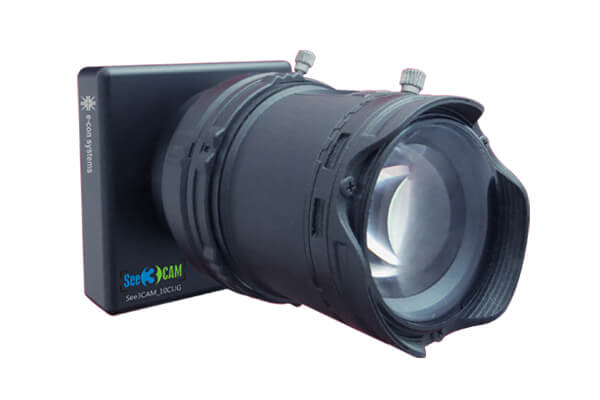

  • With Enclosure (Optional)
  • Size in mm (lxb) - 40 x 44
  • Weight - 23 Grams (without lens and without enclosure)
                   100 Grams (with lens and without enclosure)
                    72 Grams (without lens and with enclosure)
                   149 Grams (with lens and with enclosure)
  • CS-Mount / C-Mount lens holder
  • Exposure Control
  • ROHS compliant
  • FCC test passed

Sensor Features:

Sensor:AR0134 1/3" format RAW image sensor

Focus Type:Fixed Focus

Resolution:1.3MP

Pixel size:3.75μm x 3.75μm

Sensor Active Area:1280(H)x 960(V)

Responsivity:6.1 V/lux-sec

SNR:38 dB

Dynamic Range:64 dB

Output Format:Monochrome/ RAW Bayer

Shutter Type:Global Shutter

Holder:CS-Mount Lens holder

ISP:NIL

Software Required for See3CAM_10CUG CMOS Global Shutter Camera:

  • Supported OS - Windows 10, Windows 8, Windows 7 & Linux
  • Windows Application features - eCAMView (Part of SDK)
    • DirectShow Compliant application
    • Exposure Control – applicable for still image and preview
      • Auto exposure Control
      • Manual Exposure
    • Brightness control
    • Still Capture - Software Trigger
  • Linux Application features - QtCAM with source code
    • UVC V4L2 Linux driver compatible
    • Exposure Control – applicable for still image and preview
      • Auto exposure Control
      • Manual Exposure
    • Brightness control
    • Still Capture - Software Trigger

Please contact sales@e-consystems.com for any customization requirements.

Download See3CAM_10CUG - Technical Documents:

   Datasheet

pdf  See3CAM_10CUG Datasheet

pdf  See3CAM_10CUG Lens Datasheet

   User Manual

pdf  See3CAM_10CUG Hardware User Manual

   Windows

pdf  e-CAMView Installation Manual for
              See3CAM_10CUG

pdf  e-CAMView Application User Manual for
              See3CAM_10CUG (Monochrome)

pdf  e-CAMView Application User Manual for
              See3CAM_10CUG (Color - RAW Bayer Output)

   Linux

pdf  Linux Application User Manual
              (Monochrome)

pdf  Linux Application User Manual
              (Color - RAW Bayer Output)

pdf  PC USB 3.0 Hardware
              Compatibility

pdf  Application Note for Trigger
              Pin Usage

pdf  Application Note for STROBE
              OUT Usage

pdf  FCC final Test Report

pdf  How to use See3CAM in Jetson TK1
              Development Kit

Download Selected Documents

Ordering Info:

Customers who own platforms that support SuperSpeed USB 3.0 port and are interested in evaluating the 1.3 MP Color (Bayer - RAW) or Monochrome USB camera can directly buy the See3CAM_10CUG from e-con Systems.

Part No Description Sample Price
(1 Unit)
Volume Price (1000 units) Purchase
See3CAM_10CUG_CH 1.3MP USB 3.0 Global Shutter Camera with CS Mount Holder (color - RAW Bayer) US$119 US$89 buy online
See3CAM_10CUG_CHL 1.3 MP USB 3.0 Global Shutter Camera with CS Mount Holder & Lens (color - RAW Bayer) US$399 - buy online
See3CAM_10CUG_CBX
      (Without Lens)
1.3 MP USB 3.0 Global Shutter Camera (color - RAW Bayer) with enclosure & Without Lens US$219 - buy online
See3CAM_10CUG_CBX
       (With Lens)
1.3 MP USB 3.0 Global Shutter Camera (color - RAW Bayer) with enclosure & With Lens US$449 - buy online
See3CAM_10CUG_MH 1.3MP USB 3.0 Global Shutter Camera with CS Mount Holder (Monochrome) US$149 US$99 buy online
See3CAM_10CUG_MHL 1.3 MP USB 3.0 Global Shutter Camera with CS Mount Holder & Lens (Monochrome) US$349 - buy online
See3CAM_10CUG_MBX
      (Without Lens)
1.3 MP USB 3.0 Global Shutter Monochrome Camera with enclosure and Without Lens US$199 - buy online
See3CAM_10CUG_MBX
       (With Lens)
1.3 MP USB 3.0 Global Shutter Monochrome Camera with enclosure and With Lens US$399 - buy online

See3CAM_10CUG_CH-1.3MP USB 3.0 Global Shutter Camera with CS Mount Holder (color - RAW Bayer)

Sample Price (1 Unit)-US$119

Volume Price (1000 units)US$89-

buy online

See3CAM_10CUG_CHL-1.3 MP USB 3.0 Global Shutter Camera with CS Mount Holder & Lens (color - RAW Bayer)

Sample Price (1 Unit)-US$399

Volume Price (1000 units)--

buy online

See3CAM_10CUG_CBX (Without Lens)-1.3 MP USB 3.0 Global Shutter Camera (color - RAW Bayer) with enclosure & Without Lens

Sample Price (1 Unit)-US$219

Volume Price (1000 units)--

buy online

See3CAM_10CUG_CBX (With Lens)-1.3 MP USB 3.0 Global Shutter Camera (color - RAW Bayer) with enclosure & With Lens

Sample Price (1 Unit)-US$449

Volume Price (1000 units)--

buy online

See3CAM_10CUG_MH-1.3MP USB 3.0 Global Shutter Camera with CS Mount Holder (Monochrome)

Sample Price (1 Unit)-US$149

Volume Price (1000 units)-US$99

buy online

See3CAM_10CUG_MHL-1.3 MP USB 3.0 Global Shutter Camera with CS Mount Holder & Lens (Monochrome)

Sample Price (1 Unit)-US$349

Volume Price (1000 units)--

buy online

See3CAM_10CUG_MBX (Without Lens)-1.3 MP USB 3.0 Global Shutter Monochrome Camera with enclosure and Without Lens

Sample Price (1 Unit)-US$199

Volume Price (1000 units)--

buy online

See3CAM_10CUG_MBX (With Lens)-1.3 MP USB 3.0 Global Shutter Monochrome Camera with enclosure and With Lens

Sample Price (1 Unit)-US$399

Volume Price (1000 units)--

buy online



In addition to See3CAM_10CUG - Color (RAW - bayer)/Monochrome USB Camera, the evaluation kit comes with e-CAMView - Windows sample application for video preview and still capture along with the UVC Extension features (for Windows 10, Windows 8, Windows 7 & Linux) or QtCAM - sample application for video preview and still capture along with source code (for Linux) and support for 4 weeks.

For all enquiries please write to sales@e-consystems.com

Lens Options:

The See3CAM_10CUG,Color(RAW Bayer Output)/Monochrome USB camera has CS mount lens holder mounted above the sensor. This allows various compatible lenses to be used with Color(RAW Bayer Output)/Monochrome USB camera as shown below.

Lens TypeHow to Use?

CS-mount lensCan be directly mounted on this camera.

C-mount lensUse a 5mm ring (C to CS-mount adapter ring)

S-mount lensUse a S-mount to CS-mount adapter ring

Note: For bulk production, Color(RAW Bayer)/Monochrome USB camera module without CS-mount holder is also available.

Kit Contents:

See3CAM_10CUG Kit Contents

  • Hardware:
    • See3CAM_10CUG - Color(RAW Bayer Output)/Monochrome USB Camera
    • USB 3.0 Cable
  • Software:
    • Windows 10, Windows 8, Windows 7 & Linux
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
  • Documents:


  e-con Systems also introduced the new 1.3 MP Custom Lens USB 3.0 Camera (Full Color) - See3CAM_11CUG based on the Aptina / ON Semiconductor AR0134 image sensor. This USB 3 camera is capable of streaming 720p(HD) @ 30fps and 1280x960 @20 fps when interfaced to a USB 3.0 host.
  arrow   USB 3.0 arrow   Aptina / ON Semiconductor
  arrow   CMOS arrow   1.3 MP
  arrow   1/3” arrow   1280x960
  arrow   60 fps * arrow   Full color
  arrow   Global Shutter arrow   Lens Options: CS Mount / C Mount / S Mount

For more information, Please visit industrial digital camera


See3CAM_10CUG - Customization:

  • Do you want a smaller form factor?
  • Do you want LED?
  • Do you want other customization options?

USB Camera Customization

US$89
Buy See3CAM_10CUG

Excluding Shipment Charges

Targeted Applications

»  Traffic surveillance

»  Machine vision camera

»  Industrial camera

»  Visualization

»  Object tracking

»  Printing technology

»  Measuring technology
