See3CAM_50CUGM is a 5MP high sensitivity fixed focus camera based on Sony® Pregius IMX264 CMOS sensor. Its back-illuminated pixel technology and large pixel size of 3.45µm helps bring superior sensitivity with quantum efficiency (Peak QE) which is superior to that of STARVIS series.
Along with its sensitivity, the global shutter readout ensures distortion-free capture of fast-moving targets. Large sensor with large pixel size and global shutter is suitable for many life science and medical applications like fluorescence microscopy, live cell imaging, etc.

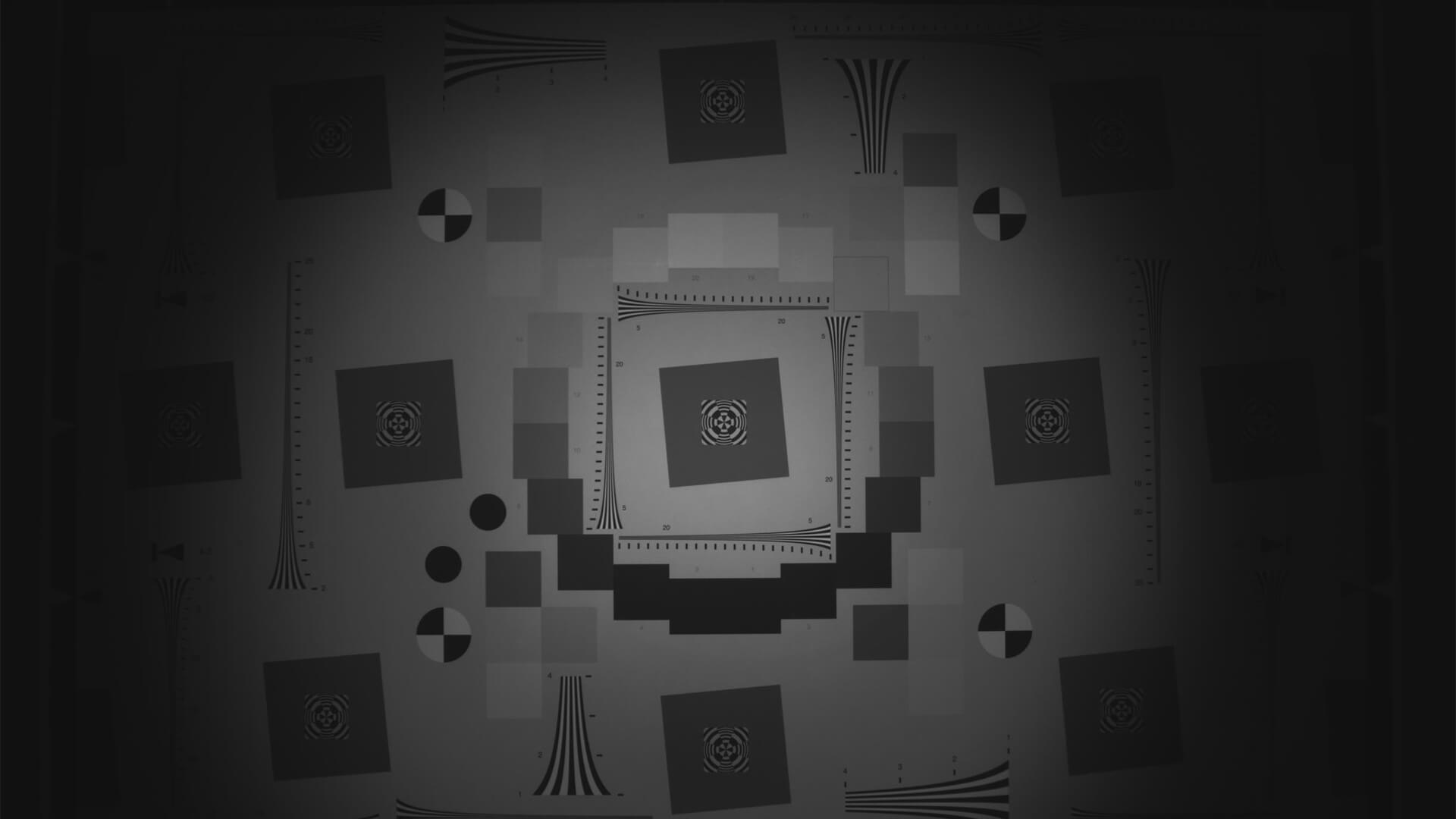

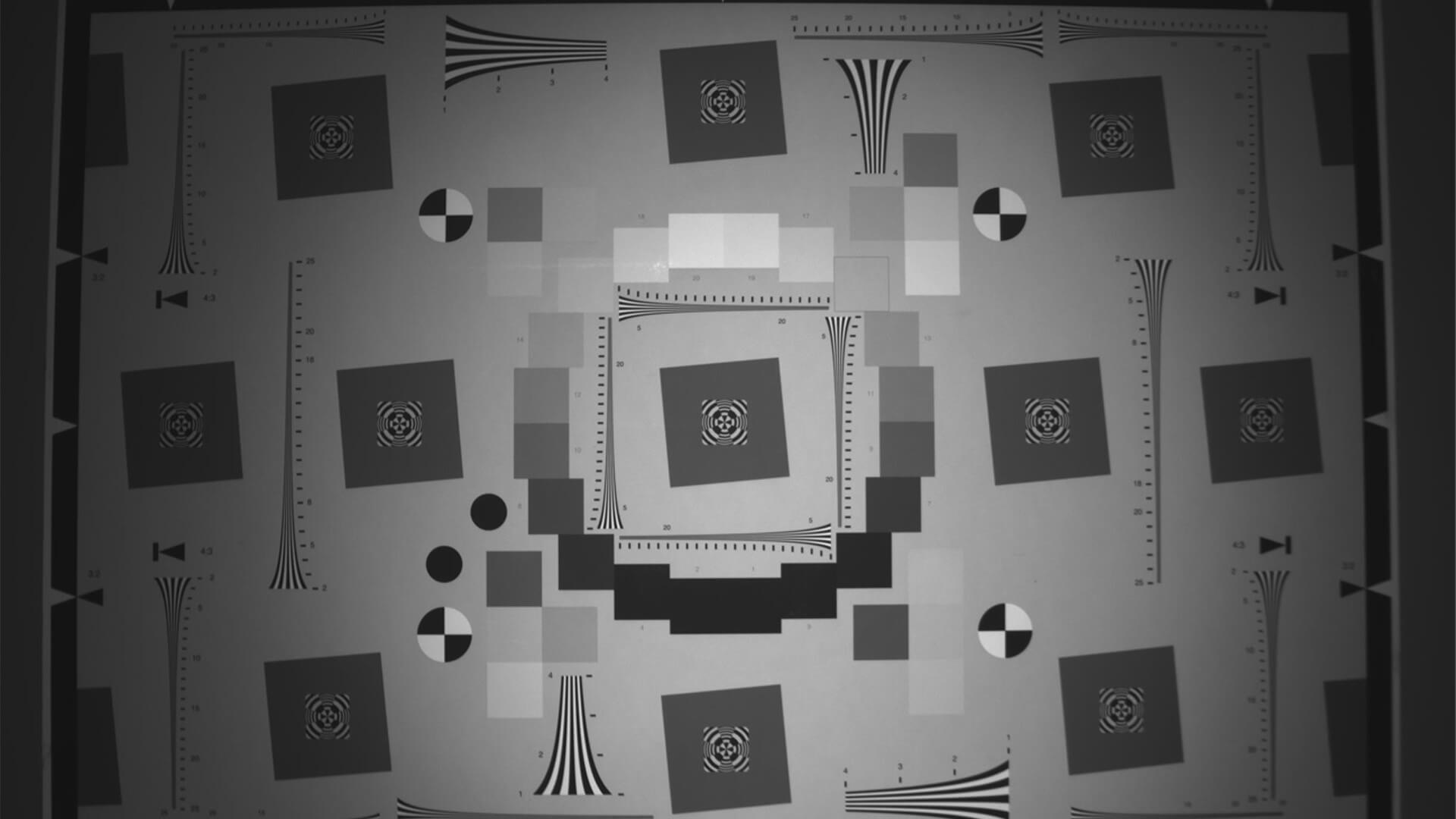

This USB camera can capture high frame rate images without any motion blur and its IR sensitivity helps to produce stunning image quality even in the Near Infrared (NIR) regions. It has C-mount lens holder which allows customers to choose and use the lens according to their requirements. It is a Plug-and-Play camera (UVC compliant) for Windows and Linux.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate:
- Streams 5MP @ 35 fps, HD @ 99 fps & VGA @ 145fps
- Up to 2000 fps for Custom ROI *
Datasheet for complete frame rate details.
- Output format: Y12 (12 bits/pixel)
- Supported OS: Windows and Linux
- External Hardware Trigger Input
- Unique ID for each camera
- Lightweight, versatile, and portable two-board solution
- Frame Rate:
- Interface:
-
- Interface: USB 3.2 Gen 1 device
- Connector: Type-C reversible interface connector
- UVC complaint - no additional drivers required
- Backward compatible with USB 2.0 hosts
- Module features:
-
- Sensor: IMX264 from Sony® Pregius
- Focus Type: Fixed focus
- Resolution: 5MP
- Chroma: Monochrome
- Shutter Type: Global Shutter
- Optical Format: 2/3"
- Output Format: Y12 (12 bits/pixel)
- Pixel Size: 3.45 μm x 3.45 μm
- Sensor Active Area: 2464 (H) × 2056 (V)
- Array Size: 2464 (H) × 2056 (V) Pixels
- Holder: C-Mount
- FOV: 33.4° (D), 26.1° (H), 22.6° (V) (with the lens provided by e-con)
- Electrical and Mechanical:
-
- Operating Voltage: 5 V +/- 5%
- Operating Temperature Range: -10°C to 50°C
- Typical Power Consumption (W) :
- Min-0.44W
- Max-1.225W
- Size in mm (l x b x h):
- With Enclosure:
- 40 mm x 40 mm x 45.23 mm (without lens)
- With Enclosure:
- Miscellaneous:
-
- Compliance: FCC, RoHS
- * - Not supported by default. Requires firmware customization for higher framerates with custom ROI resolutions.
- Supported OS - Windows and Linux
- Sample Application :
- Still Image Resolutions :
-
- All supported resolutions
- UVC Controls :
-
- Gain
- Exposure
- Extension Unit Controls:
-
- Stream Mode
- Strobe
- Orientation
- Black level
- Burst Image Capture
- Save Configuration
Customers who own platforms that support USB 3.2 Gen 1 and are interested in evaluating the 5MP Monochrome USB camera module can directly buy the See3CAM_50CUGM from e-con Systems™. Customers can order See3CAM_50CUGM with/without lens.
| Part No | Description | Sample Price (1 Unit) |
Purchase |
|---|---|---|---|
| See3CAM_50CUG_MXLCC_BX_H02R1 | 5MP IMX264 USB 3.0 Monochrome Camera with enclosure & with lens | USD 749 649 |
|
| See3CAM_50CUG_MXXCC_BX_H01R1 | 5MP IMX264 USB 3.0 Monochrome Camera with enclosure & without lens | USD 649 549 |
|
| See3CAM_50CUG_MXXCC_H01R1 | 5MP IMX264 USB 3.0 Monochrome Camera without enclosure & without Lens | - |
|
See3CAM_50CUG_MXLCC_BX_H02R1-5MP IMX264 USB 3.0 Monochrome Camera with enclosure & with lens
Sample Price-USD 749 649
See3CAM_50CUG_MXXCC_BX_H01R1-5MP IMX264 USB 3.0 Monochrome Camera with enclosure & without lens
Sample Price-USD 649 549
See3CAM_50CUG_MXXCC_H01R1-5MP IMX264 USB 3.0 Monochrome Camera without enclosure & without Lens
In addition to See3CAM_50CUGM , the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows 10/8.1, Linux). For more details, please refer the evaluation kit contents below.
For all enquiries please write to camerasolutions@e-consystems.com
Kit Contents:
- Hardware:
-
- See3CAM_50CUGM - 5MP USB Global shutter Camera with C-Mount Lens Holder
- USB 3.2 Gen 1 Type-C Cable
- Lens (Optional)
- Software: (Customers will have to download the software from e-con Developer Resource)
See3CAM_50CUGM – Customization
- Do you need a support for external mechanical shutter?
- Do you need a custom lens mount (S-mount/CS-Mount)?
- Do you want a smaller form factor or single board solution?
- Do you need LED flash?
- e-con Systems™ offers complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
