3MP Sony® ISX031 120dB HDR Camera for Autonomous Mobility

Overview

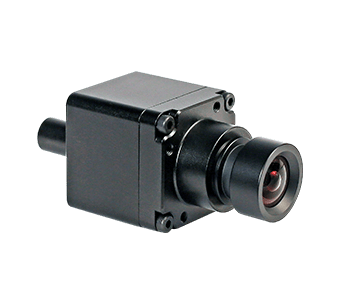

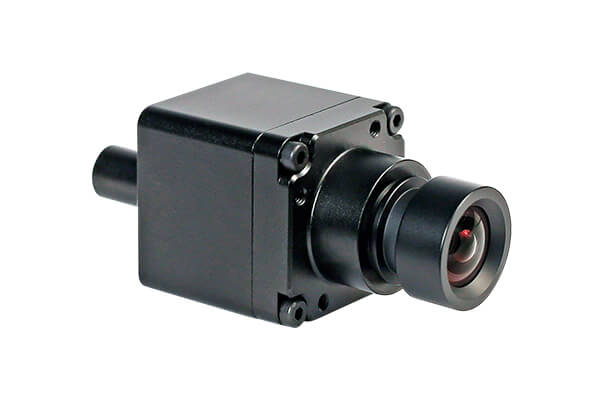

STURDeCAM31 is a small form factor GMSL2 IP69K HDR camera powered by a 1/2.42" Sony® ISX031 sensor. This automotive grade 3MP CMOS sensor, paired with a well-tuned Image Signal Processor (ISP), produces exceptional image quality. Its 120dB High Dynamic Range (HDR) capability ensures reliable images even in challenging outdoor light conditions. It also features LED Flicker Mitigation (LFM) to guarantee accurate capture of images with pulsed light sources like LEDs. This camera, which comes with an IP69K-rated enclosure, is supplied with an IP69K M12 lens that is focused and glued in our factory. Additionally, this camera supports both 3-meter and 15-meter coaxial cables

Refer Datasheet for complete frame rate details.

Specifications

Key features:
- Frame Rate - Streams 1920 x 1536 @60 fps, 1920x1536 @30 fps
  Refer Datasheet for complete frame rate details.
- Output format: UYVY
- S-mount IP69K compliant lens focused and glued at factory
- Lightweight, versatile, and portable design
- Small form factor
Interface:
- Interface: GMSL2
- Connector: FAKRA connector
- Cable Length: 3m by default, Please contact camerasolutions@e-consystems.com for 15m cable
Sensor features:
- Sensor: ISX031 from Sony®
- Focus Type: Fixed focus
- Focus Distance : 40cm to Infinity
- Sensor Resolution: 3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.42"
- Output Format: UYVY
- Pixel Size: 3μm x 3μm
- Sensor Active Area: 1937 (H) x 1553 (V)
- Dynamic Range: Max upto 120 dB
- Holder: M12 (S-Mount)
- FOV:
  - 54.04°(H), 42.86°(V), 70.17°(D) (Default lens provided by e-con)
  - 128.7°(H), 98.7°(V), 170.1°(D) (Please contact e-con)
Electrical & Mechanical:
- Operating Voltage: 5 to 15V with +/- 5% tolerance
- Operating Temperature Range: -40°C to 85°C
- Typical power consumption: 1.324W
- Size in mm (l x b):
  - Camera With enclosure - 25 x 25 mm
- Board weight : 40 Grams (with lens)
Miscellaneous:
- Compliance:
  - FCC Class B, CE and RoHS
- IP69K Certified (Dust tight with protection against close-range high pressure, high temperature spray downs)
- Refer to all the supported Standards & Compliance here Standards & Compliance here
Launched on:

Standards & Compliance

S.No	Certification	Test Specifications
1	ISO 16750-4 Road vehicles — Environmental conditions and testing for electronic equipment. Part 4: Climatic test methods	Dry heat Operational IEC 60068-2-2 Cold Operational IEC 60068-2-1 Low Storage Temperature IEC 60068-2-1 High Storage Temperature IEC 60068-2-2 Damp Heat Cyclic (operational) IEC 60068-2-30:2005 Thermal cyclic Thermal step raise
2	ISO 20653: 2013 Degrees of protection provided by enclosures.	IP69K
3	ISO 16750-3 Road vehicles — Environmental conditions and testing for electronic equipment. Part 3: Mechanical loads	Sinusoidal Vibration Random Vibration Mechanical Shock

Documents

STURDeCAM31 Documents

STURDeCAM31 - Datasheet

STURDeCAM31 - Lens Datasheet

Compliance

Declaration of conformity for STURDeCAM31

Reliability test report for STURDeCAM31

Evaluation kit

Part No	Kit Contents	Sample Price (1 Unit)	Purchase
STURDeCAM31_CUOAGX_CXLC_AT_1H03R2	One * STURDeCAM31 - ISX031 3MP GMSL2 HDR camera with IP69K Enclosure One * 70° DFOV Lens One * 3 meters coaxial cable One * Deserializer board with 2 x quad Fakra connectors

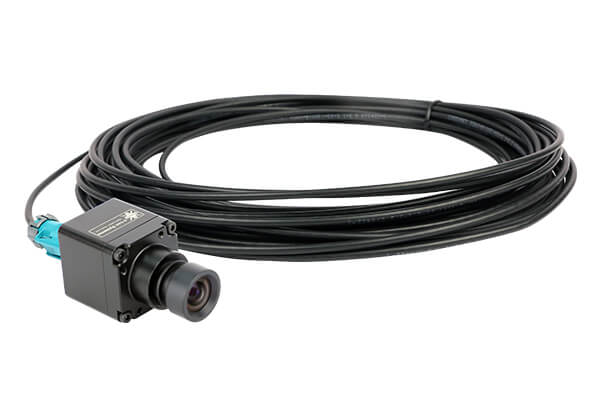

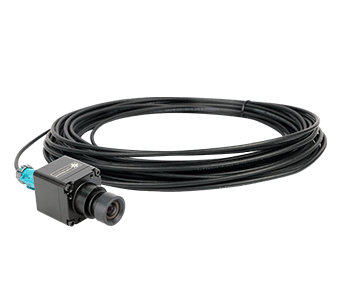

STURDeCAM31_CXLC_AT_H03R2	One * STURDeCAM31 - ISX031 3MP GMSL2 HDR camera with IP69K Enclosure One * 70° DFOV Lens One * 3 meters coaxial cable
STURDeCAM31_CXLW_AT_H03R2	One * STURDeCAM31 - ISX031 3MP GMSL2 HDR camera with IP69K Enclosure One * 70° DFOV Lens

Please contact camerasolutions@e-consystems.com for information about the customization options, including the 170° wide-angle lens, 15-meter cable and Jetson AGX Xavier platform support.

Note: The new deserializer board with this kit is a must for the camera. Old deserializer boards are not compatible. Refer GMSL cable connection guide to connect the camera with the deserializer board.

STURDeCAM31_CXLC_AT_H03R2-with 3m cable and 70 degree lens

Sample Price (1 Unit)-

STURDeCAM31_CXLW_AT_H03R2-without cable

Sample Price (1 Unit)-

Videos

Customization

STURDeCAM31 - Customization and Porting Services for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for STURDeCAM31 on any application platform as per customer requirements. For any driver customization or porting services or for using this Full HD camera with your application processor platform

STURDeCAM31 - Customization

e-con provides customization, development and porting services for the following requirements:

Change of lens to meet your FOV and other requirements
Support to other NVIDIA Jetson platforms from other vendors
To support other processor platforms
Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.

STURDeCAM31 - 3MP Sony® ISX031 120dB HDR Camera for Autonomous Mobility

Evaluate STURDeCAM31 with,

NVIDIA® Jetson™ AGX Orin™ / AGX Xavier™
