Sony ISX031 120dB HDR USB 3.2 Gen 1 Camera

Overview

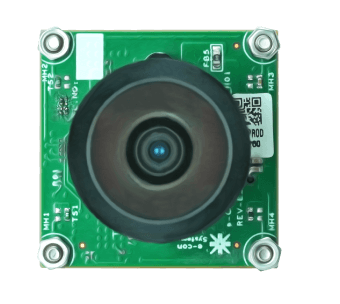

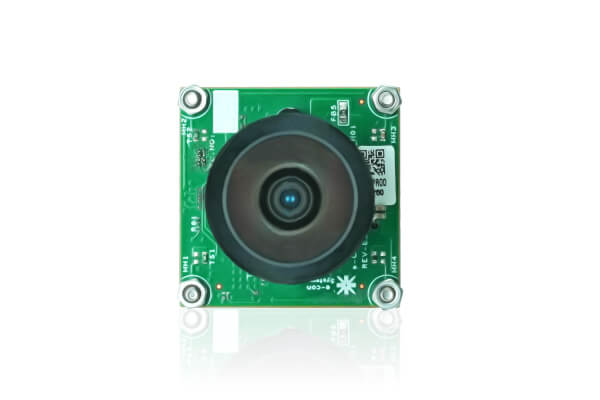

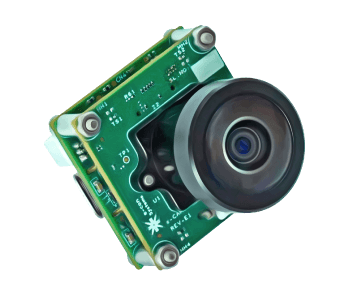

See3CAM_CU31 is a 3 MP HDR USB camera based on the 1/2.42" Sony ISX031 automotive grade image sensor.

The subpixel technique in this ISX031 sensor aids in an impressive HDR performance of up to 120 dB which ensures reliable images without motion blur even in challenging outdoor light conditions.

This UVC-compliant USB camera streams video data of 3MP @ 30fps. It also has an S-mount (M12) lens holder, allowing customers to choose and use the lens according to their requirements.

Refer Datasheet  for complete frame rate details.

Specifications

Key features:
- Frame Rate: Streams 1920 x 1080p @ 30fps
  Refer Datasheet  for complete frame rate details.
- Output format: YUV
- Supported OS: Windows and Linux
- Unique ID for each camera

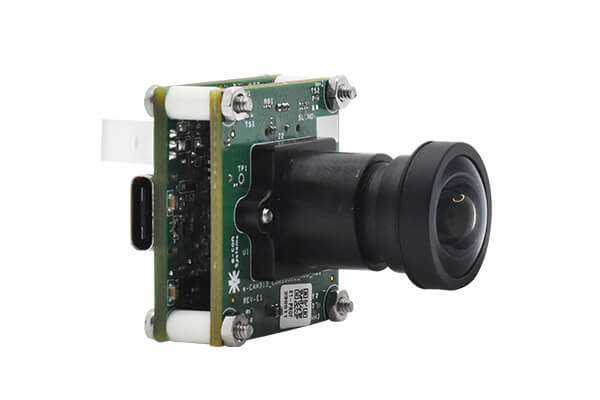

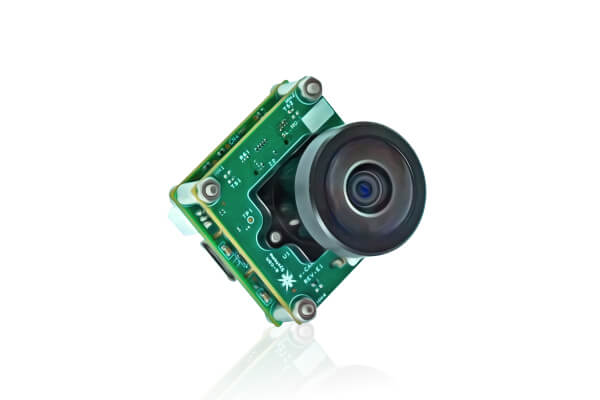

- Lightweight, versatile, and portable two-board solution
Interface:
- Interface: USB 3.2 Gen 1 device
- Connector: Type-C reversible interface connector
- UVC Compliant - no additional drivers required
Module Features:
- Sensor: ISX031 from Sony®
- Focus Type: Fixed focus
- Focus Distance: 1m to Infinity
- Sensor Resolution: 3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.42"
- Output Format: YUV
- Pixel Size: 3μm x 3μm
- Sensor Active Area: 1937 (H) x 1553 (V)
- Array Size: 1937 (H) x 1553 (V)
- Dynamic Range: Max upto 120 dB
- Lens Holder: M12 (S-Mount)
- FOV: TBD
Electrical & Mechanical:
- Operating Voltage: 5V +/- 5%
- Operating Temperature Range:
  - Without Enclosure: -40°C to 85°C
  - With Enclosure: -40°C to 70°C
- Typical power consumption: 1.45W
- Size in mm (l x b):
  - Without enclosure
    - Without Lens: 30 x 30 x 30.2 mm

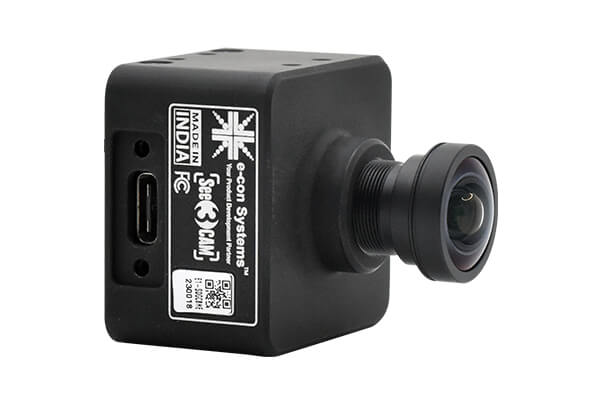

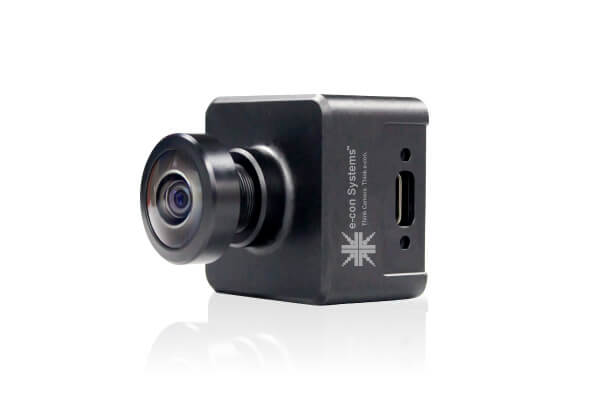

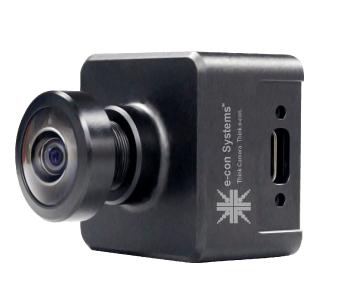

  - With enclosure:
    - Without Lens: 35.3 x 35.3 x 29 mm
Miscellaneous:
- RoHS
For Android or MAC OS support, please contact camerasolutions@e-consystems.com

Software

Supported OS - Windows and Linux
Sample Application :
- e-CAMView – Windows Camera application for Video recording, Video Preview and Still Capture.
- QtCAM – Linux Camera application for Video recording, Video Preview and Still Capture.
UVC Controls :
- Brightness
- Contrast
- Saturation
- Sharpness
- Powerline Frequency
Note: Customers interested to work on Android would require e-con SDK (Webeecam).The specs mentioned above shall not be the same for Android. For Android or MAC OS support, please contact camerasolutions@e-consystems.com

Documents

Kit contents

Kit Contents:

Hardware:

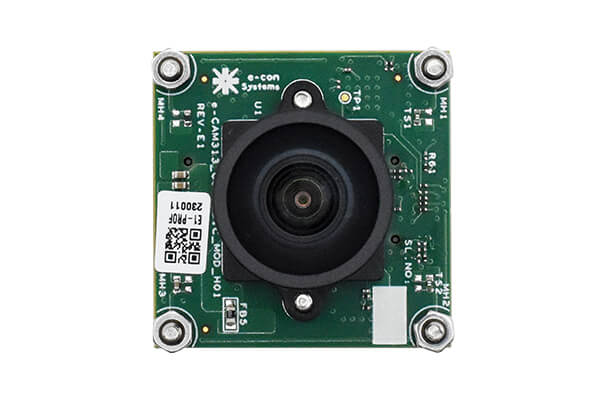

- See3CAM_CU31 - 3MP USB 3.2 Gen 1 Camera board with S-Mount Lens Holder
- USB 3.2 Gen 1 Type-C Cable
- Lens (Optional)
Software: (Customers will have to download the software from e-con Developer Resource).
- Supported OS: Windows 10/8.1 and Linux^* and MAC^**
- e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
* - Customers interested to work on Android would require e-con SDK (Webeecam).The specs mentioned above shall not be the same for Android. For Android OS support, please contact camerasolutions@e-consystems.com
** - For MAC OS support, please contact camerasolutions@e-consystems.com

Customization

See3CAM_CU31 – Customization

Do you need a support for external mechanical shutter?
Do you need a custom lens mount (S-mount/CS-Mount)?
Do you want a smaller form factor or single board solution?
Do you need LED flash?
e-con Systems™ offers complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

See3CAM_CU31 - Sony® ISX031 3MP 120dB HDR USB Camera
