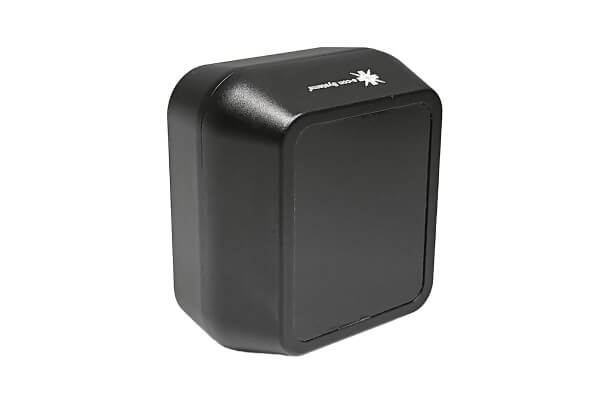

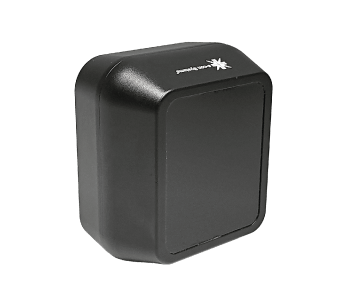

STURDeCAM29 is a 2MP global shutter monochrome camera powered by the OV2311 sensor from OmniVision Technologies. With advanced 3μm OmniPixel® 3-GS technology, it captures without motion blur, even for fast-moving scenes.
Integrated 940nm IR LEDs, synchronized with the sensor, enable reliable imaging in near-infrared (NIR) and low-light conditions. It has an S-mount (M12) lens holder, allowing customers to choose and use the lens according to their requirements. This GMSL camera is an ideal solution for various applications like DMS, OMS.
Refer
Datasheet for complete frame rate and performance details.
- Key features:
-
- Frame Rate: 2 MP @ 60 fps
- Output format: RAW (Y10)
- GMSL2™ interface for power and data transmission up to 15 meters
- Automotive-grade, IP65-rated enclosure
- Lens glued at factory
- Interface:
-
- Interface: GMSL2™

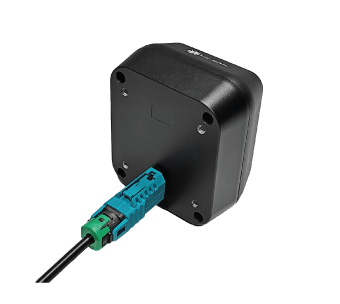

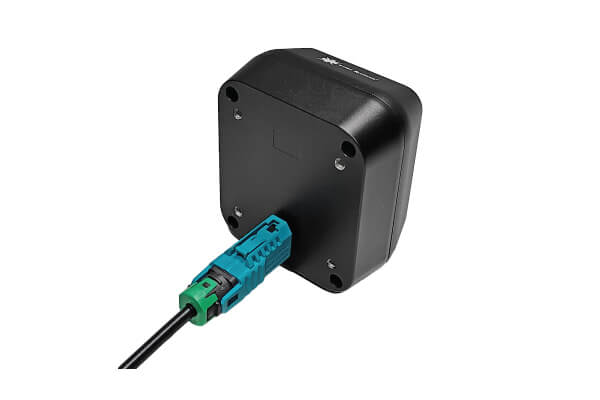

- Connector: FAKRA connector
- Cable Length: Up to 15 meters
- Sensor features:
-
- Sensor: OV2311 from OmniVision™
- Resolution: 2MP (1600 × 1300 pixels)
- Chroma: Monochrome
- Shutter Type: Global Shutter
- Focus Type: Fixed focus, glued
- Optical Format: 1/2.9"
- Output Formats: Y10
- Pixel Size: 3.0 μm × 3.0 μm
- SNR: 37.4 dB
- Dynamic Range: 68 dB
- Active Area: 1600 (H) × 1300 (V)
- Lens Holder: M12 (S-Mount)
- FOV(DxHxV): 131° × 93° × 74° (with standard lens)
- Electrical & Mechanical:
-
- Operating Voltage: 12V with +/- 5% tolerance
- Operating Temperature Range: -40°C to 85°C
- Power requirements: 1.7 W @ 25°C

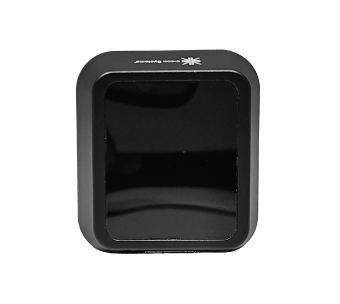

- Size in mm: 52.52mm (L) x 59.02mm (W) x 42.75 mm (D)
- Board weight : 131 grams
- Miscellaneous:
-
- Compliance: FCC, RoHS
Emission standards:
| S.No | Certification | Test Specifications |
|---|---|---|
| 1 | FCC Part 15, Subpart B, Class B | Regulates EMI from electronic devices to prevent interference with other equipment. |
| 2 | CE & RoHS | CE ensures EMC compliance; RoHS restricts hazardous substances in electronic products. |
Application-Specific EMC and Environmental Standards Radiated Emission Standards:
| S.No | Standard | Description |
|---|---|---|
| 1 | CISPR 32 | Sets EMI limits for multimedia devices to avoid disturbing nearby electronics. |
| 2 | CISPR 25 | Limits RF emissions in vehicles to protect onboard communication and entertainment. |
| 3 | ISO 14982 | Ensures EMI-safe operation of agricultural/forestry machines. |
| 4 | ISO 13766-1 | EMI testing for construction equipment with onboard electronics. |
Radiation Immunity Standards:
| S.No | Standard | Description |
|---|---|---|
| 1 | EN 61000-4-3 | Tests how well a device works when exposed to outside electromagnetic signals. |
| 2 | ISO 11452-2 | Checks if car parts can handle signal noise in a test room. |
| 3 | ISO 11452-4 | Sends noise into cables to test if car electronics can still work properly. |
| 4 | ISO 13766-1 | Tests if construction machines keep working when exposed to strong signals. |
| 5 | ISO 14982 | Makes sure farm machines work well even when there’s a lot of electronic noise. |
Environmental Standards:
| S.No | Standard | Description |
|---|---|---|
| 1 | ISO 16750-3 | Tests if car electronics can survive shocks, drops, and vibration. |
| 2 | ISO 16750-4 | Checks if electronics can handle heat, cold, and humidity in real-world conditions. |
STURDeCAM29 - Customization for other Application Processor platforms:
e-con Systems™ provides camera driver development, customization and porting services for STURDeCAM29 on any application platform as per customer requirements.
STURDeCAM29 - Customization:
e-con provides customization for the following requirements:
- IP rated (IP69K) enclosure and IP rated (IP69K) cables for rugged applications.
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
- Support for other processor platforms
- Camera and features customization based on specific requirements.
- Please contact camerasolutions@e-consystems.com for customization requirements.
