FSCAM_CU135 - 4K Multi-frame buffer camera

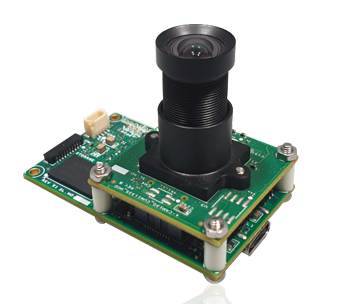

FSCAM_CU135 is a first frame buffer camera in the FRAMEsafe™ camera series. It is a 13 MP Fixed focus USB camera with advanced multi frame buffer for enhanced reliability. It has 2 Gb DDR3 SDRAM to store and retrieve the entire frame without losing data even at very high speeds.

FRAMEsafe™ is the latest series of USB UVC Cameras, with a one-of-a-kind inbuilt buffer mechanism. It ensures speed, flexibility and stability while transferring images over the USB interface. Powered by e-con's proprietary FloControl™ technology, FRAMEsafe™ cameras support on-demand image capture capability, which can be seamlessly and simplistically controlled from the host application. The effective decoupling of camera image capture from the USB communication allows multiple FRAMEsafe™ cameras to be used on the same host processor - without losing the frames from any camera.

Key Features of 4k Board Camera

  • Houses e-CAM131_CUMI1335_MOD - 13 MP AR1335 Color Camera Module
  • Fixed Focus with M12 lens holder
  • 2 Gb DDR3 SDRAM for storing the frames
  • Demand based frame transfer mode to enable bandwidth sharing among multiple cameras
  • Daisy Chain Trigger support
  • Electronic Rolling Shutter
  • Output format: Uncompressed UYVY format and Compressed MJPEG format
  • Frame Rate:
  • Resolutions USB 3.0 USB 2.0
    UYVY MJPEG UYVY MJPEG
    VGA (640 x 480) 120 fps 120 fps 60 fps 120 fps
    720P (1280 x 720) 60 fps 60 fps 16 fps 60 fps
    960P (1280 x 960) 60 fps 60 fps 12 fps 60 fps
    1080P (1920 x 1080) 60 fps 60 fps 8 fps 60 fps
    1440P (1920 x 1440) 45 fps 60 fps 6 fps 60 fps
    2.8K (2880 x 2160) 20 fps 30 fps 3 fps 30 fps
    4K UHD (3840 x 2160) 15 fps 30 fps 2 fps 30 fps
    4K Cinema (4096 x 2160) 15 fps 30 fps 2 fps 30 fps
    13MP (4208 x 3120) 9 fps 20 fps 1 fps 20 fps
  • Supported OS - Windows 10, Windows 8.1, Linux, Android * and MAC **
  • USB3.1 Gen1 device with Type-C reversible interface connector
  • Operating Voltage: 5V +/- 5%, Current: 700mA
  • Operating Temperature Range : 0°C to 85°C
  • Power requirements:
    • Max : 3.5W
    • Min : 2.5W
  • 10 Pin and 4 pin GPIO header for daisy chain
  • External Hardware Trigger Input
  • iHDR support
  • Base Board size( L x W ): 50 mm x 30 mm
  • Board Weight - 16 Grams (with out lens)
                               24 Grams (with lens)
  • RoHS compliant
  • Lightweight, versatile, and portable two-board solution
  • Unique ID for each camera
  • Launched on: 31st Jul 2019
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

Camera Module Features:

Sensor:AR1335 from ON Semiconductors

Sensor Resolution and Optical Format:13MP CMOS Image Sensor. 1/3.2" Optical format

Sensor type:13MP CMOS Electronic Rolling Shutter Sensor

Image Signal Processor:On-board high performance ISP

Output Format:Uncompressed UYVY format and Compressed MJPEG format

Sensor Features:

Pixel size:1.1μm x 1.1μm pixel with BSI technology

Sensor Active Area:4208(H) x 3120(V)

Responsivity:4700e-lux/sec

SNR:37 dB

Dynamic Range:69 dB

Shutter type:Electronic Rolling Shutter

Focus Type:Fixed focus

Array Size:4208 x 3120 pixels

DFOV:13M – 67°(with the lens provided by e-con)

  • Supported OS - Windows 10, Windows 8.1, Linux, Android * and MAC **
  • Sample Application:
    • e-CAMView - Windows Camera application for Video Preview and Still Capture.
    • QtCAM - Linux Camera application for Video Preview and Still Capture.
    • SDK Demo application for multiple camera integration (Hardware and Software trigger) with full source.
  • Still Image Resolutions:
    • 13MP (both MJPEG and BMP)
  • Still Capture:
    • External trigger signal control
    • Software application control
    • Software trigger
  • UVC Controls:
    • Digital Zoom(Upto 8x)
    • Pan
    • Tilt
    • Brightness
    • Contrast
    • Sharpness
    • Saturation control
    • Gamma control
    • Gain
    • White Balance (Manual and Auto)
  • ROI mode
    • Auto Exposure
      • Full ROI
      • Manual ROI
  • Denoising
  • Contrast and enhanced document mode
  • Effects
    • Normal
    • Black & White
    • Gray scale
    • Negative
    • Sketch
  • Scene Mode
    • Normal
    • Document
  • Additional Capabilities:
    • Face Detection
    • Smile Detection
    • Programmable Frame Rate
    • JPEG Compression Q-Factor control
    • Support for external trigger
    • Interleaved High Dynamic Range (iHDR)
    • Flip Control
    • Stream Mode
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

Download FSCAM_CU135 - Technical Documents:

   Datasheet

 pdf  FSCAM_CU135 Datasheet

 pdf  FSCAM_CU135 Lens Datasheet

   User Manual

 pdf  FSCAM_CU135 Getting Started
              Manual

 pdf FSCAM_CU135 Face and Smile Detection

 pdf FSCAM_CU135 Trigger Mode

   Windows

 pdf  Windows Extension Unit API Document

 pdf  e-CAMView Application User Manual

 pdf  e-CAMView Installation Manual

 pdf  See3CAM_DFU Firmware Updater Application
              User Manual

   Linux

 pdf QtCAM Application User Manual

 pdf QtCAM Application Installation Manual

Download 13MP 4K USB Camera Documents

Ordering Info:

Customers who own platforms that support USB3.1 Gen1 and are interested in evaluating the 13.0 MP USB camera module can directly buy the FSCAM_CU135 from e-con Systems. Customer can order FSCAM_CU135 with/without lens.

Part No Description Sample Price
(1 Unit)
Volume Price
(1000s Pack)
Purchase
FSCAM_CU135_CHL_TC 13.0 MP Custom Lens USB3.1 Gen1 Color Camera With Lens
Type-C connector
US $299 $239 - buy e-con camera
FSCAM_CU135_CH_TC 13.0 MP Custom Lens USB3.1 Gen1 Color Camera Without
Lens Type-C connector
- US$149 buy e-con camera

FSCAM_CU135_CHL_TC-13.0 MP Custom Lens USB3.1 Gen1 Color Camera With Lens Type-C connector

Sample Price (1 Unit)-US $299 $239

Volume Price (1000 units)--

buy e-con camera

FSCAM_CU135_CH_TC-13.0 MP Custom Lens USB3.1 Gen1 Color Camera Without Lens Type-C connector

Sample Price (1 Unit)--

Volume Price (1000 units)-US$149

buy e-con camera





In addition to FSCAM_CU135, the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows 10, Windows 8.1, Linux, Android * and MAC **). For more details, please refer the evaluation kit contents below.

For all enquiries please write to sales@e-consystems.com

Kit Contents:

USB 3.0 Camera

  • Hardware:
    • FSCAM_CU135 - 13.0 MP USB Camera with M12 Lens (S-Mount) Holder
    • USB3.1 Gen1 Type-C Y Cable
    • Lens (Optional)
  • Software: (Customers will have to download the software from e-con Developer Resource)
    • Supported OS: Windows 10 , Windows 8.1, Linux, Android * and MAC **
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
    • SDK Demo application for multiple camera integration (Hardware and Software trigger) with full source
  • Documents:
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

FSCAM_CU135 - Customization

  • Do you need a Support for external mechanical shutter?
  • Do you need a Custom lens mount (C-mount/CS-Mount)?
  • Do you want a smaller form factor or single board solution?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

4K Camera Customization

offer image
US$299 $239
Buy 13MP 4K USB Camera online

Excluding Shipment Charges

Offer Closes on 21th Aug 2019

Targeted Applications

»  Photogrammetry

»  Virtual & Augmented reality

»  3D Scanning

»  Microscopy cameras

»  Identity Authentication
