e-CAM130_CUMI1820_MOD – 13MP MIPI Camera Module

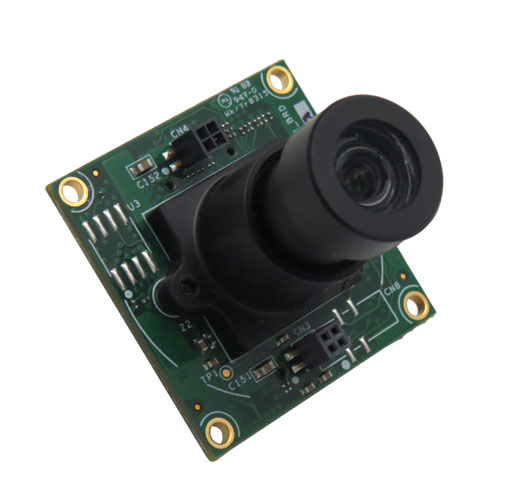

e-CAM130_CUMI1820_MOD is a 13MP MIPI Camera Module. This small form factor 13MP camera module comes with S-Mount lens holder. It is based on AR1820HS – an 18MP CMOS Image sensor from Aptina™ / ON Semiconductor® and has a dedicated, high-performance Image Signal Processor chip (ISP) on-board that performs all the Auto functions (Auto White Balance, Auto Exposure control) in addition to complete image signal processing pipeline that provides best-in-class images and video and the optional MJPEG compression. Though the AR1820HS is an 18MP image sensor, the e-CAM130_CUMI1820_MOD supports only up to 13MP resolution.

  • 13MP Colour camera with 4-lane MIPI CSI-2 interface
  • 1/2.3" Optical Form-factor
  • Uncompressed YUV streaming and compressed MJPEG streaming
  • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
  • LED Control signals and STROBE output signal for firing the illumination LED
  • External Trigger input
  • Face detection capability
  • Maximum Image Transfer Rate* YUV422 Output Format
  • Resolutions USB 3 Interface
    For PC solution
    MIPI Interface
    For NVIDIA Jetson TK1
    VGA 60 fps 90 fps
    HD (720p) 60 fps 60 fps
    Full HD (1080p) 30 fps 30 fps
    Ultra HD (3840x2160) 9 fps 22 fps
    13MP (4224x3156) 5 fps 14 fps

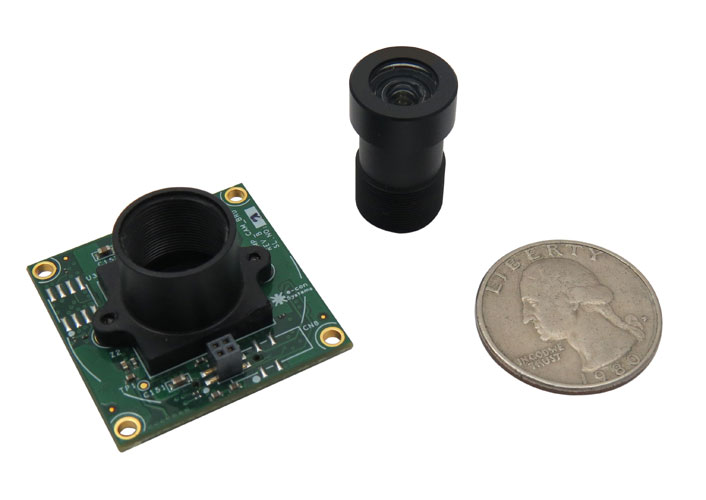

  • Small form-factor pluggable camera module with S-mount lens holder
  • 30mm x 30mm size. Height depends on the Lens
  • 2x 20-pin SMT Connectors on two sides of the camera module for better mechanical stability
  • RoHS Compliant
  • Power consumption of Camera Module Board : 1.37W (Approx)
  • * - The maximum frame rate depends on the application processor ability to read the camera image, decode and display, in addition to the ambient light of the scene
  • AR1820HS - CMOS Image Sensor from Aptina™ / ON Semiconductor®
  • 1/2.3" optical form-factor
  • 1.25 µm pixel size with Aptina / ON Semiconductor A-PixHS™ BSI technology
  • Other still capture modes:
  • Electronic Rolling Shutter
  • Responsivity: 0.62V/lux-sec
  • Dynamic Range: 65.8 dB
  • SNRMAX : 36.3 dB
  • 4-lane MIPI CSI-2 interface for video and I2C interface for camera configuration
  • Dual 20-pin connector on board to plug in to customer boards directly
  • Direct Interface to NVIDIA Jetson development kit through e-CAM130_CUTK1 daughter card
  • Daughter card for NVIDIA Jetson Kit available immediately
  • Linux V4L2 Capture driver with demo application
  • Customers can purchase the driver source code from e-con Systems and port the same to their application processor.
  • Please contact sales@e-consystems.com for customization requirements.

Download e-CAM130_CUMI1820_MOD Documents:

pdf e-CAM130_CUMI1820_MOD - 13MP Custom Lens Camera Module Datasheet

Download Evaluation Kit (See3CAM_CU130) Documents:

pdf See3CAM_CU130 - 13MP Custom Lens USB 3.0 Camera Board

Download Evaluation Kit (e-CAM130_CUTK1) Documents:

pdf e-CAM130_CUTK1 - 13MP Custom Lens MIPI Camera Board (Requires NVIDIA Jetson DevKit)

Download Evaluation Kit (e-CAM130_CUTX1) Documents:

pdf e-CAM130_CUTX1 - 13MP Custom Lens MIPI Camera Board (Requires NVIDIA Jetson DevKit)

Evaluation Kit:

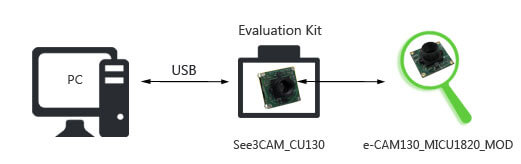

1. PC Solution

See3CAM_CU130 - 13 MP Custom Lens USB 3.0 Camera

Customers who own platforms that support USB 3.0 and are interested in evaluating the 13 mega pixel USB UHD camera module can directly buy the See3CAM_CU130 from e-con Systems. Customer can order See3CAM_CU130 with/without lens.

US$139
Buy online

Excluding Shipment Charges

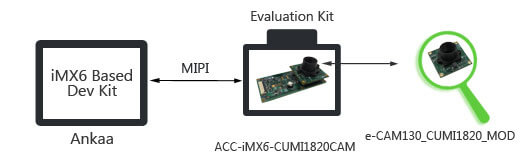

2a. ARM Based Solution (NXP/Freescale i.MX6)

ACC-iMX6-CUMI1820CAM - 13MP MIPI Camera Board (Requires Ankaa kit):

The daughter card (ACC-iMX6-CUMI1820CAM) can be bought by customers choosing to evaluate the e-CAM130_CUMI1820_MOD camera solution with a direct interface on the Ankaa.

Read more about Ankaa - iMX6 development board solution that features eSOMiMX6 - computer on module & carrier board.

US$249
Buy Camera online

Excluding Shipment Charges

The evaluation kit comes with Sample application for Video Preview and Still Capture (Linux / Android).

2b. ARM Based Solution (NXP/Freescale i.MX6 Micro)

ACC-iMX6-m-CUMI1820CAM - 13MP MIPI Camera Board (Requires Meissa-I kit):

The daughter card (ACC-iMX6-m-CUMI1820CAM) can be bought by customers choosing to evaluate the
e-CAM130_CUMI1820_MOD camera solution with a direct interface on the Meissa-I.

Read more about Meissa-I - iMX6 Micro development board solution that features eSOMiMX6-micro - computer on module & carrier board.

US$249
Buy Camera online

Excluding Shipment Charges

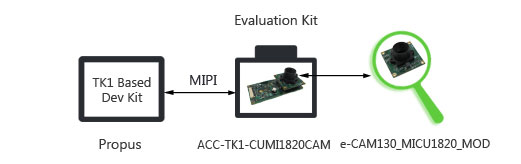

2c. ARM Based Solution (NVIDIATegra K1)

ACC-TK1-CUMI1820CAM - 13MP MIPI Camera Board (Requires Propus kit)

The daughter card (ACC-TK1-CUMI1820CAM) can be bought by customers choosing to evaluate the
e-CAM130_CUMI1820_MOD camera solution with a direct interface on Propus.

Read more about Propus - Tegra K1 Development Board solution that features eSOMTK1 - computer on module & carrier board.

US$149
Buy online

Excluding Shipment Charges

2d. ARM Based Solution (NVIDIA Tegra K1 based Jetson DevKit)

e-CAM130_CUTK1 - 13MP MIPI Camera Board (Requires NVIDIA Tegra K1 based Jetson DevKit)

The MIPI Camera daughter card (e-CAM130_CUTK1) can be bought by customers choosing to evaluate the e-CAM130_CUMI1820_MOD camera solution with a direct interface on the NVIDIA Tegra K1 based Jetson DevKit.

US$249
Buy Camera online

Excluding Shipment Charges

The evaluation kit comes with Sample application for Video Preview and Still Capture (Linux / Android).

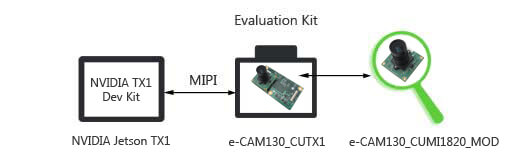

2e. ARM Based Solution (NVIDIA Tegra X1 based Jetson DevKit)

e-CAM130_CUTX1 - 13MP MIPI Camera Board (Requires NVIDIA Tegra X1 based Jetson DevKit):

The MIPI Camera daughter card (e-CAM130_CUTX1) can be bought by customers choosing to evaluate the e-CAM130_CUMI1820_MOD camera solution with a direct interface on the NVIDIA Tegra X1 based Jetson DevKit.

US$299
Buy Camera online

Excluding Shipment Charges

Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact sales@e-consystems.com and explain their requirement.

e-CAM130_CUMI1820_MOD - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM130_CUMI1820_MOD on any application platform as per customer requirements. Please contact sales@e-consystems.com along with your requirement details.

e-CAM130_CUMI1820_MOD Customization

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/CS mount lens holder
  • Driver development for any OS: Linux, Android and Windows Embedded Compact
  • Interfacing with any Application Processor : Freescale i.MX6, NVIDIA Tegra K1 and any other processor
  • Camera and ISP features customization based on specific requirements

Please contact sales@e-consystems.com for customization requirements.

Volume Price starts from

US$89
Buy Camera module with S-Mount Holder online

Excluding Shipment Charges
