Propus - NVIDIA Tegra® K1 Development Board

Tegra K1 Board, Propus has eSOMTK1 - Computer on Module & carrier board. This Tegra K1 development board runs Linux/Android.

eSOMTK1 is based on NVIDIA's Tegra® K1 4-Plus-1™ ARM® Cortex™-A15 Quad core processor which can operate up to 2.2 GHz and Integrated NVIDIA Kepler™ GPU with 192 NVIDIA CUDA® cores. It has DDR3L SD RAM configurable up to 4GB and eMMC configurable up to 64GB. The eSOMTK1 module also has the Wireless LAN and Bluetooth module.

Related Blogs

Bullat ArrowKnow more about Intel® Joule™ System on Module Alternative - eSOMiMX6 micro ARM SOM

Bullat ArroweSOMTK1 can record 4K video streaming at 30 fps new

  • eSOMTK1 - TK1 Computer on Module
    1. NVIDIA's Tegra® K1 4-Plus-1™ ARM® Cortex™-A15 Quad core which can operate up to 2.2 GHz and Integrated NVIDIA Kepler™ GPU with 192 NVIDIA CUDA® cores.
    2. 64 bit 2GB DDR3L SD RAM
    3. 16GB eMMC FLASH
    4. Power Management IC
    5. IMU
  • Camera
    1. Two MIPI - 4 lane interface
    2. One MIPI - 1 lane interface
  • Display
    1. HDMI (x1)
  • Networking
    1. Wi-Fi 802.11 b/g/n & Bluetooth 4.1 BLE
    2. Gigabit Ethernet
  • USB
    1. Two USB Host (3.0)
    2. One USB OTG
  • Audio
    1. Audio Codec with connectors for Mic & Headset
  • Miscellaneous
    1. SATA
    2. Mini PCIe
    3. I2C
    4. SPI
    5. RTC
    6. SD/MMC Card
  • Dimension - 105mm (L) x 85mm (B)
  • Power Supply: 12V@3A
  • Commercial Temperature - 0°C to 70°C
  • Supporting Operating Systems
    1. Linux : Ubuntu 14.04
    2. Android : Lollipop 5.0.1

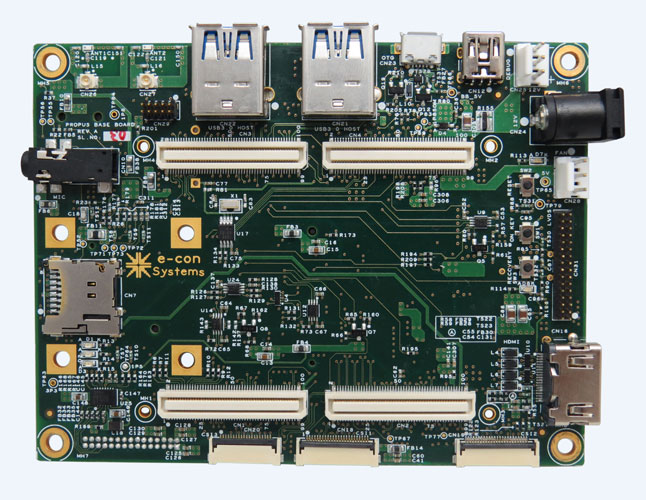

Propus – TK1 development board

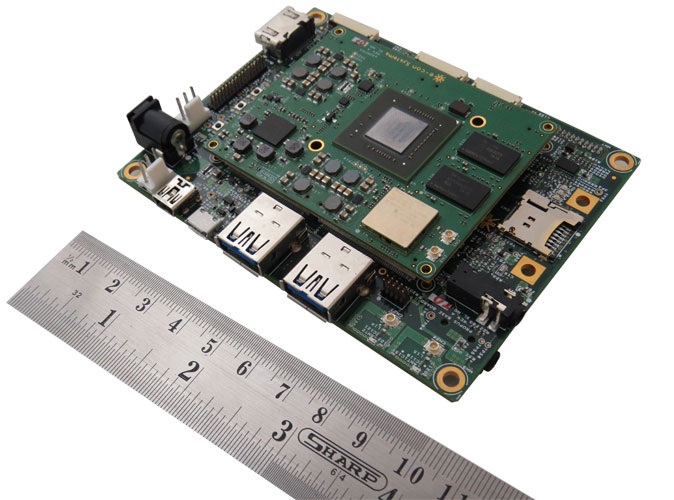

Propus - Tegra K1 development board

Download Propus TK1 development board documents:

pdf   Propus Hardware and Software documents

Propus TK1 development board kit contents:

Add on Boards:

3.4MP MIPI Camera board

3.4 MP MIPI Camera Board (ACC-TK1-CUMI0330CAM)

ACC-TK1-CUMI0330CAM is a 3.4 MP Custom Lens Low Light Camera Board for e-con's Propus TK1 RDK. This AR0330 sensor based Camera provides MIPI-CSI-2 4 lane interface. This is a custom lens Camera board with S-mount interchangeable lens holder.

Frame Rate:
  YUYV MJPG
VGA 30 fps 30 fps
HD 30 fps 30 fps
FULL HD 30 fps 22 fps
3MP 30 fps 17 fps
3.4MP 30 fps 14 fps
User Manual
13MP Camera board

13.0 MP MIPI Camera Board (ACC-TK1-CUMI1820CAM)

ACC-TK1-CUMI1820CAM is a 13MP Camera board for e-con’s Propus TK1 RDK. This AR1820HS sensor based fixed focus Camera provides MIPI-CSI-2 interface. This is a custom lens Camera board with S-Mount lens holder.

Frame Rate:
  YUYV
VGA 59 fps
HD 63 fps
FULL HD 67 fps
4K 29 fps
13MP 18 fps
User Manual
4MP Camera board

4.0 MP MIPI Camera Board (ACC-TK1-CUMI4682CAM)

ACC-TK1-CUMI4682CAM is a 4MP Camera board for e-con’s Propus TK1 RDK. This OV4682 sensor based fixed focus Camera provides MIPI-CSI-2 interface. This is a custom lens Camera board with S-Mount lens holder.

Frame Rate:
  BG10
VGA 260 fps
HD 75 fps
FULL HD 75 fps
4MP 19 fps
User Manual
usb hub and ethernet board

Ethernet Board (ACC-TK1-ETHPCIe)

ACC-TK1-ETHPCIe Network Adapter interfaces with Propus - NVIDIA Tegra K1 development Kit through Mini PCIe Connector (CN8) Present in Propus Kit. ACC-TK1-ETHPCIe is an two Board Solution consist of ACC-TK1-ETHPCIe PCIe Card and RJ-45 connector cable.

User Manual

OEM Customization


You can contact sales@e-consystems.com for customization of the Propus Board
