eSOMiMX6  - iMX6 System on Module (SOM)

NXP Logo

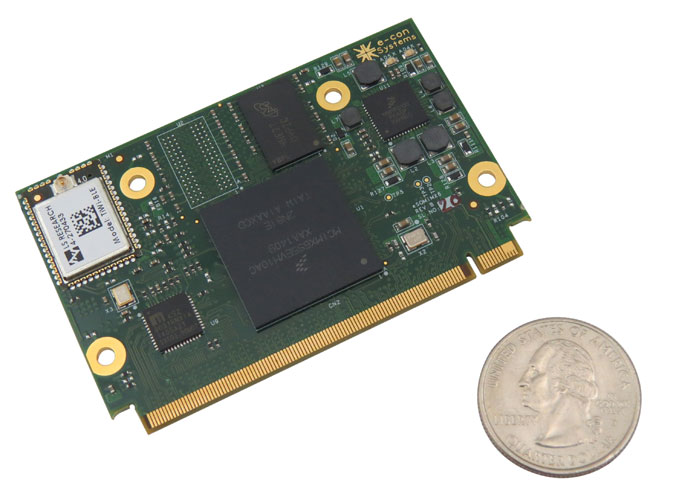

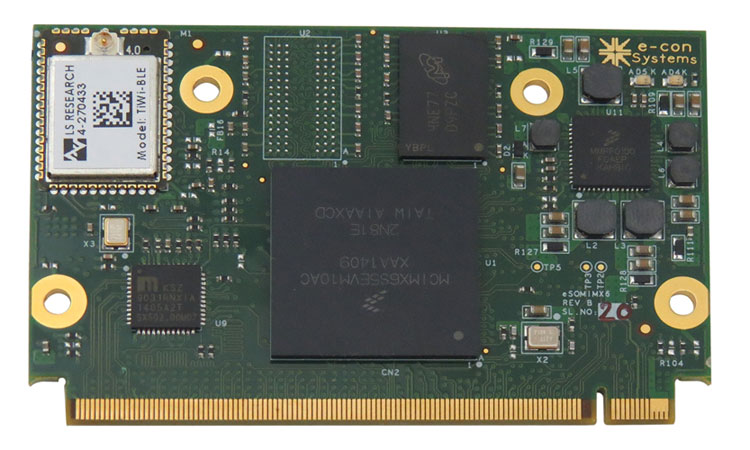

i.MX6 SOM - eSOMiMX6 is a high performance system on module based on NXP/Freescale i.MX6 Quad/Dual/DualLite/Solo ARM® Cortex™-A9. The i.MX6 SOM has i.MX6 CPU running up to 1GHz - Quad Core, DDR3L SDRAM configurable up to 4GB and eMMC flash with capacity configurable up to 32GB. The eSOMiMX6 System on Module also has Wireless LAN and Bluetooth module. This iMX6 SOM supports Android, Linux.

eSOMiMX6 System on Module is aimed at reducing the time-to-market for our customers by making use of the stabilized and ready-to-market iMX6 modules in their applications.

Related Blog

bullatBuild AWS IoT Gateway in just 8 hours - Use eSOMiMX6 RDK Ankaa

    iMX6 SOM – eSOMiMX6 Features

  • NXP-Freescale ARM® Cortex™ A9 i.MX6 Processor running up to a speed of 1GHz
  • 4GB eMMC FLASH (Expandable up to 32GB)
  • 512MB to 4GB DDR3L
  • eSOMgears - Over-the-Air (OTA) Firmware Upgrade Solution  new
  • Available in Temperature Ranges
    1. Commercial Temperature – 0°C to + 70°C
    2. Industrial Temperature – -40°C to + 85°C (Optional)
  • Power: 3.3V @ 3A
  • Supporting Operating Systems
    1. Linux : Kernel 4.1.15
    2. Android : Marshmallow 6.0.1
  • Precertified WiFi - 802.11 b/g/n & Bluetooth 4.0 BLE (Optional)
  • Form Factor of 70mm x 45mm (custom micro Qseven®)
  • RoHS Compliant
  • Availability - Until 2028

Interfaces Supported on i.MX6 SOM (eSOMiMX6):

  • Camera
    1. MIPI - 4 lane interface
    2. Parallel interface 1 - 10 bit
    3. Parallel interface 2 - 20 bit (Dual & Quad processor only)
  • Display
    1. HDMI (x1)
    2. LVDS (x2)
    3. LCD - 24bpp RGB (x1)
    4. MIPI-DSI (x1)
  • Networking
    1. Wi-Fi 802.11 b/g/n & Bluetooth 4.0 BLE
    2. 1 Gigabit Ethernet through On-SOM Gigabit Ethernet PHY (x1)
  • USB
    1. USB Host 2.0 (x1)
    2. USBOTG 2.0 (x1)
  • Miscellaneous
    1. Upto 5 UARTs
    2. I2C (x3)
    3. SPI (x1)
    4. FLEXCAN (x2)
    5. GPIOs (upto 50)
    6. PCIe Gen 2.0 (x1)
    7. SATA II (x1) - only for Quad/Dual
    8. PWM (x3)
    9. SPDIF IN & OUT (x1)
    10. SD/MMC (4bit) (x1)

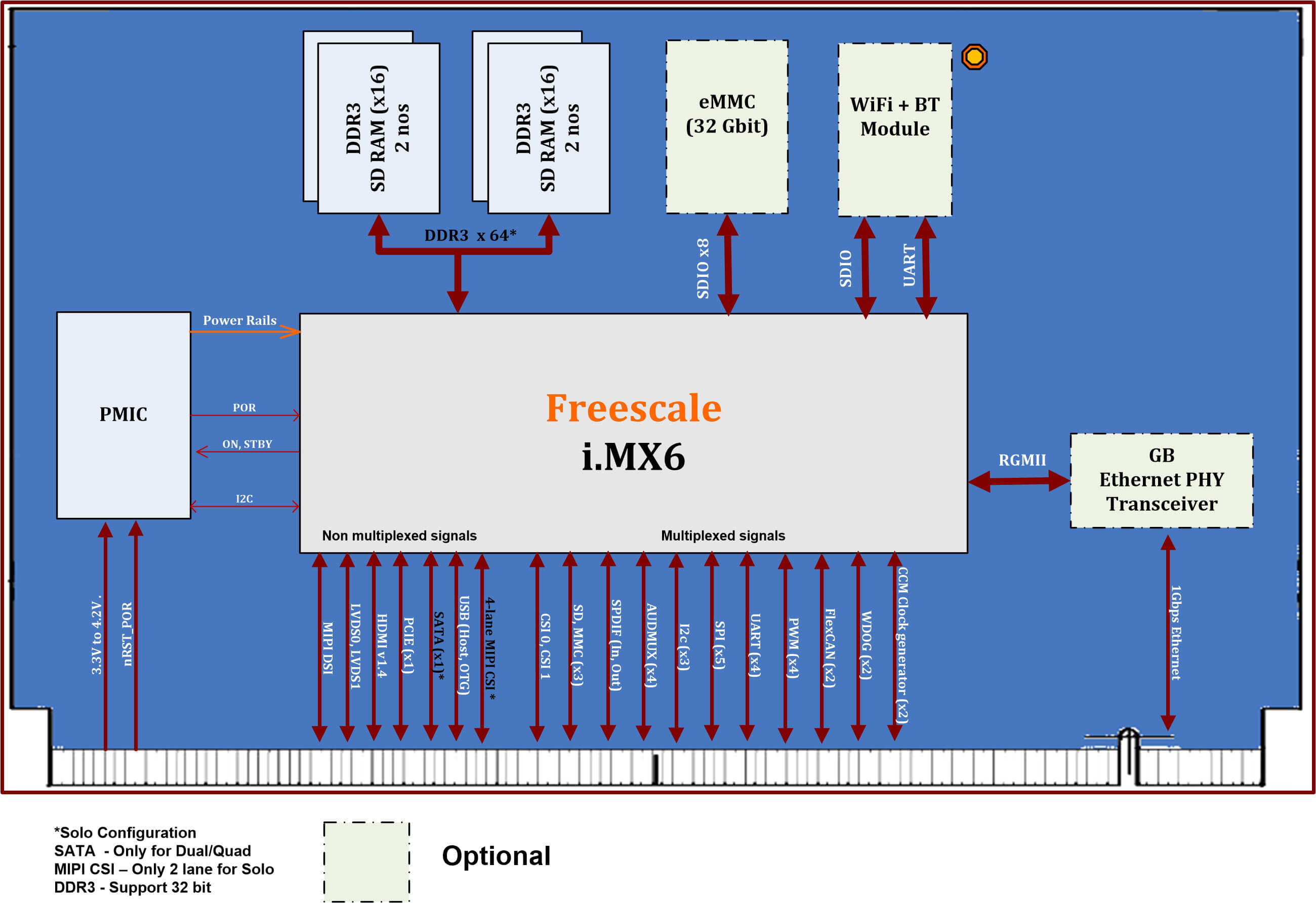

iMX6 SOM block diagram (eSOMiMX6)

i.MX6 SOM - eSOMiMX6 block diagram

Please contact for any customization.

Ankaa i.MX6 Rapid Development Kit

e-con provides a Rapid development kit for eSOMiMX6 called Ankaa i.MX6 Development kit. This Development kit features a carrier board around the eSOMiMX6 Module with peripherals supported like HDMI, LVDS, USB 2.0 host. Also includes 7 inch Capacitive Touch screen, SDIO, SPI, I2C, GPIO, USB high speed client, 4 lane MIPI/Parallel camera interface.

As a part of rapid development kit, e-con Systems™ provides schematics, hardware user manual, Bill of material, application notes to help the customers design their custom board faster and therefore speed up the time to market.

e-con Systems™ provides Linux / Android with device drivers for all the peripherals.

For more information, please visit iMX6-development-board.asp

Download iMX6 Computer on Module – eSOMiMX6 DataSheet:

 pdf eSOMiMX6 Datasheet

 pdf Product Chage Notice

Download 2MP USB Camera Documents

iMX6 SOM Ordering Info:

eSOMiMX6 can be customized with the following configuration.

Part Number Template: eSOMiMX6-Cxx-Pxxx-Fxx-Rxxx-WB-E-Fx-SWxx-IT

x-variants can be chosen from the following eSOMiMX6 Part Number Decoding Table.

The Minimum order quantity (MOQ) is 100. please contact for more information.

Feature Options P/N code
  CPU   Solo Core   CS
  DualLite Core   CDL
  Dual Core   CD
  Quad Core   CQ
  SPEED   800 MHz   P800
  1 GHz   P1G
  DDR SIZE   512 MB (Only for Solo Core)   R512
  1 GB   R1G
  2 GB   R2G
  4 GB (Only for DualLite/Dual/Quad core)   R4G
4GB expandable
up to 32 GB
  Present   F4G *
  Wi-Fi/BT   Present   WB
  1G Ethernet   Present   E
  Fuse to Boot   Fuse to boot from eMMC   FE
  Fuse to boot from SD   FS
  Fuse to boot from SPI   FP
  Not Fused
  Firmware version   Firmware version to be loaded into eMMC
(xx – Running number starts from 01)
  Temperature   Industrial   IT

* - Available in 8GB (F8G), 16GB (F16G), 32GB (F32G) versions.
