eSOMTK1 - NVIDIA Tegra K1 System on Module

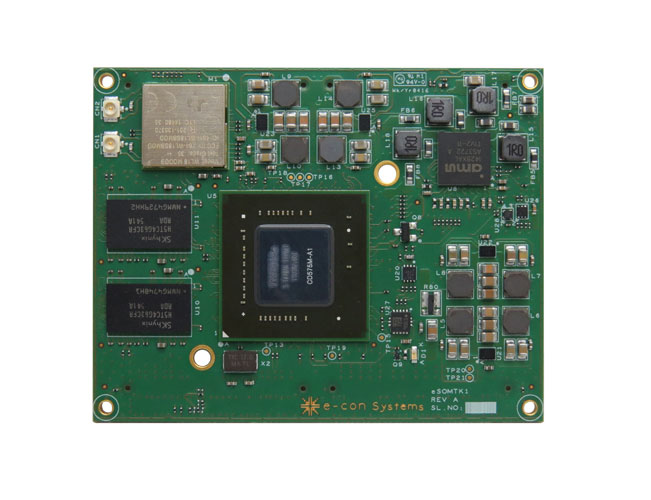

Our Tegra K1 SOM, eSOMTK1 is based on NVIDIA Tegra® K1 CPU in a compact form factor. This Tegra K1 Module has NVIDIA Tegra® K1 4-Plus-1™ ARM® Cortex™-A15 Quad core running at 2.2GHz with DDR3L SDRAM configurable up to 4GB, eMMC configurable up to 64GB. Tegra SOM integrates Wi-Fi and Bluetooth module. TK1 SOM comes in a compact form factor with various configurations and OS support enabling customers to focus on their application design.

The CPU board exposes the complete range of interfaces provided by the Tegra K1 Processor through its connectors, so that the customers can get the complete functionality without going through the complex design requirements of the processor sub system including memory and power manager.

Related Blogs

bullatKnow more about Intel® Joule™ System on Module Alternative - eSOMiMX6 micro ARM SOM

bullateSOMTK1 can record 4K video streaming at 30 fps new

Frequently Asked Question

bullatWhen to choose the Tegra K1 based Propus kit over Jetson?

Tegra K1 SOM - eSOMTK1 Key Features:

  • NVIDIA's Tegra® K1 4-Plus-1™ ARM® Cortex™-A15 Quad core which can operate up to 2.2 GHz and Integrated NVIDIA Kepler™ GPU with 192 NVIDIA CUDA® cores.
  • 2GB DDR3L SD RAM (Expandable upto 4GB)
  • 16GB eMMC FLASH (Expandable upto 64GB)
  • Wi-Fi - 802.11 b/g/n & Bluetooth 4.1 (Dual-Mode Bluetooth and BLE)
  • Inertial Measurement Unit (IMU) for 3D gyroscope & 3D acceleration.
  • Available in Temperature Ranges
    1. Commercial Temperature – 0°C to + 70°C
    2. Industrial Temperature – -40°C to + 85°C
  • Power: 12V and 5V
  • Form Factor of 70mm x 55mm
  • Supporting Operating Systems
    1. Linux : Ubuntu 14.04
    2. Android : Lollipop 5.0.1
  • RoHS Compliant
  • Availability - Until 2024

Interfaces Supported on Tegra K1 SOM (eSOMTK1):

  • Camera (Only two of 3 active at a time)
    1. One 1-lane MIPI CSI-2
    2. Two 4-lane MIPI CSI-2
  • Display
    1. 1 HDMI port (ver. 1.4b)
  • Networking
    1. Wi-Fi 802.11 b/g/n & Bluetooth 4.1 BLE
  • USB
    1. 2 USB Host 3.0
    2. 1 USB OTG
  • Miscellaneous
    1. SD / MMC
    2. SATA
    3. PCI Express (PCIe)
    4. SPI
    5. I2C
    6. UART
    7. Audio Interfaces - I2S and SPDIF

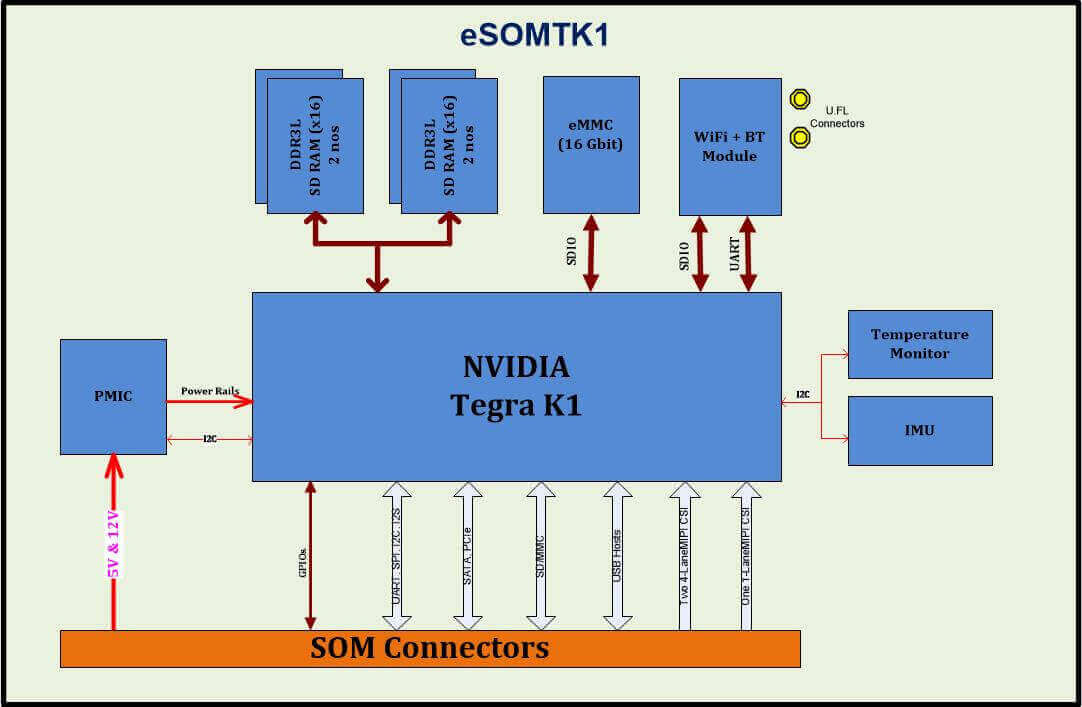

eSOMTK1 Block Diagram
eSOMTK1 - Tegra K1 System on Module

Propus - Rapid Development Kit

e-con provides a Rapid development kit for eSOMTK1 called Propus - Tegra K1 Development kit. This ARM board features a carrier board around the eSOMTK1 Module with various peripherals support.

As a part of rapid development kit, e-con Systems provides detailed schematics, hardware user manual, Bill of material, application notes to help the customers design their custom board faster and therefore speed up the time to market.

e-con Systems provides Linux / Android BSP with device drivers for all the peripherals.

For more information, please visit tegra-k1-development-board.asp

Download eSOMTK1 Documents:

pdf   eSOMTK1 Datasheet

Ordering Info:

eSOMTK1 can be customized with the following configuration.

Part Number Template: eSOMTK1-Fxxx-Rxx-WB-IM-IT

x-variants can be chosen from the following eSOMTK1 Part Number Decoding Table.

For the other configurations, the Minimum order quantity (MOQ) is 100. please contact sales@e-consystems.com for more information.

Feature Options P/N code
  eMMC flash   16 GB   F16G
  32 GB   F32G
  64 GB   F64G
  DDR SIZE   2 GB   R2G
  4 GB   R4G
  Wi-Fi/BT   Present   WB
  Absent
  IMU   Present   IM
  Absent
  Temperature   Industrial (-40°C to + 85°C)   IT
  Commercial (0°C to + 70°C)
