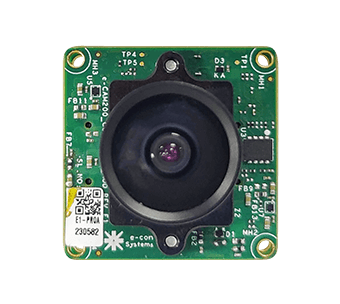

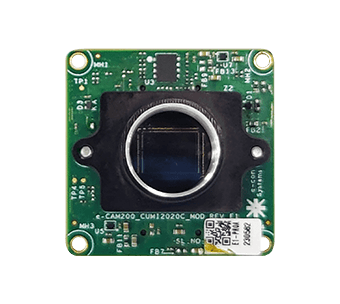

e-CAM200_CUMI2020C_MOD - 20MP AR2020 MIPI Camera Module

Highlights:

  • Houses AR2020 Image Sensor from Onsemi®
  • 20 MP High resolution sensor
  • Wake on Motion
  • Smart ROI
  • Rolling shutter with global reset release mode #

Samples Price

Documents

Evaluate e-CAM200_CUMI2020C_MOD with,

The e-CAM200_CUMI2020C_MOD is a 20MP camera module featuring the AR2020 image sensor from onsemi®. This module is designed to deliver exceptional image quality with its 20MP resolution and fixed focus capability. The e-CAM200_CUMI2020C_MOD ensures efficient image processing and optimization. It offers versatile interface options, supporting GMSL and MIPI, providing seamless integration capabilities for a wide range of applications.

With its high frame rate of 20MP@30 fps, small pixel size of 1.4μm pixel stacked BSI technology, and enhanced NIR performance, this camera module is well-suited for various applications such as people monitoring, video conferencing, and factory automation.

  • Key features:
    • Frame Rate: 20MP @ 30 fps
    • Output Format - RAW Bayer
    • High-speed MIPI CSI-2 interface
    • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
  • Sensor features:
    • Sensor: AR2020 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 20MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling shutter
    • Optical Format: 1/1.8"
    • Output Format: RAW Bayer
    • Pixel Size: 1.4 μm x 1.4 μm
    • Sensor Active Area: 5120 (H) x 3840 (V)
    • Array Size: 5120 (H) x 3840 (V)
    • Holder: M12 (S-Mount)
    • FOV: TBD
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V ±5%
    • Operating Temperature Range: -30°C to 85°C
    • Typical power consumption:TBD
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
 Bullat Arrow  Download e-CAM200_CUMI2020C_MOD Documents

Download Full HD USB Camera Documents

Supported Platforms SAMPLE PRICE
(1 Unit)
NVIDIA Jetson AGX Orin / Xavier
NVIDIA Jetson Orin NX / Orin NANO ContactUs



Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact camerasolutions@e-consystems.com and explain their requirements.

e-CAM200_CUMI2020C_MOD - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM200_CUMI2020C_MOD on any application platform as per customer requirements.

e-CAM200_CUMI2020C_MOD Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/S mount lens holder
  • Supported platforms: NXP i.MX8 Series, NVIDIA Jetson Platforms, Qualcomm QRB5165 and other processor
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.

Targeted Applications

  • People monitoring

  • Factory Automation

  • Video Conferencing
