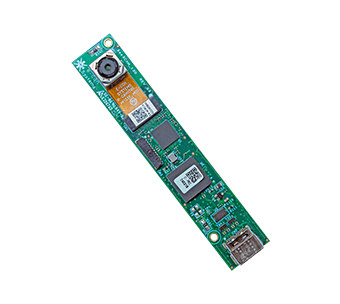

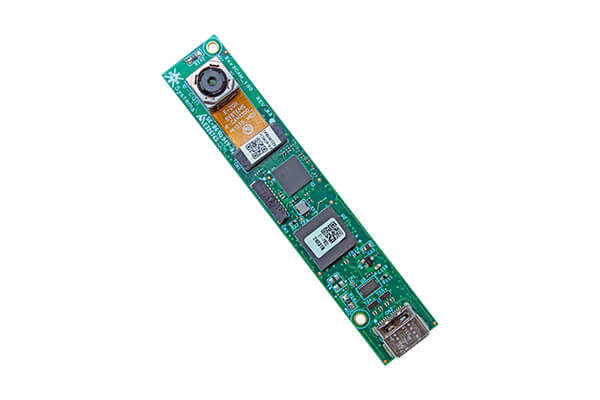

See3CAM_130 – 4K Autofocus USB3.1 Gen1 Camera Board (Color)

See3CAM_130 is an UVC-compliant AR1335 sensor based 13MP autofocus USB camera with iHDR support. It supports 4K Ultra HD (3840x2160) at 30fps over USB3.1 Gen1 in compressed MJPEG format. This See3CAM_130 can also stream Full HD (1920x1080) at 60fps and HD (1280x720) at 60fps in both uncompressed and compressed MJPEG formats. This autofocus USB camera board is also backward compatible with USB 2.0, although in USB 2.0, this camera supports fewer resolutions at lower frame rates.

The 13MP camera has a dedicated, high-performance Image Signal Processor chip (ISP) that performs all the Auto functions (Auto White Balance, Auto Exposure control) in addition to complete image signal processing pipeline that provides best-in-class images and video and the MJPEG compression.

Key Features of 4k Board Camera

  • Houses e-CAM130_MI1335_MOD - 13 MP AR1335 Color Camera Module
  • Auto Focus
  • Electronic Rolling Shutter
  • Output format: Uncompressed UYVY format and Compressed MJPEG format
  • Plug-&-Play (UVC compliant - No drivers required)and Backward compatibility with USB2.0 hosts with limited features and capabilities
  • Frame Rate *:
  • Resolutions USB3.1 Gen1 USB 2.0
    UYVY MJPEG UYVY MJPEG
    VGA 120 fps and 60fps 120 fps 60fps and 30 fps 120 fps
    HD (720p) 60 fps and 30fps 60 fps NS 60 fps
    Full HD (1080p) 60 fps and 30fps 60 fps NS 60 fps
    4K Ultra HD (3840x2160) 15 fps and 7.5fps 30 fps NS 30 fps
    4K Cinema (4096 x 2160) 15 fps and 7.5fps 30 fps NS 30 fps
    13MP (4208 x 3120) 9 fps and 4.5fps 20 fps NS 20 fps
  • NS - Not Supported
    *    -Frame rate achieved is subject to ambient lighting of the scene and varies with light. Also varies with rendering Software
  • Supported OS - Windows 10, Windows 8, Windows 7, Linux, Android ** and MAC ***
  • USB3.1 Gen1 device with CX3 chip - Cypress USB SuperSpeed controller and USB3.1 Gen1 Type C connector.
  • Operating Voltage: 5V +/- 5%, Current - 370mA
  • Operating Temperature Range : -30°C to 70°C
  • Power requirements
    • Max : 1.85W
    • Min : 1.21W
  • 10 pin GPIO header
  • External Hardware Trigger input for 3d sync and External trigger & 13MP still capture with Zero-lag-shutter
  • iHDR support
  • Size in mm (l x b x h) - 80 x 15 x 9.67 mm (with module)
  • Board Weight - 7 Grams
  • Digital Zoom - Upto 8x
  • ROHS compliant
  • Lightweight, versatile, and portable single-board solution
  • Unique ID for each camera
  • Launched on:launch date
  • ** - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • *** - For MAC OS support, please contact sales@e-consystems.com

Camera Module Features:

Sensor:AR1335 from ON Semiconductors

Sensor Resolution and Optical Format:13MP CMOS Image Sensor. 1/3.2" Optical format

Sensor Type:13MP CMOS Electronic Rolling Shutter Sensor

Image Signal Processor:On-board high performance ISP

Output Format:Uncompressed UYVY format and Compressed MJPEG format

Sensor Features:

Pixel size:1.1μm x 1.1μm

Sensor Active Area:4208(H) x 3120(V)

Responsivity:4.7 ke-/luxsec

SNR:37 dB

Dynamic Range:69 dB

Shutter type:Electronic Rolling Shutter

Focus Type:Auto focus

Array Size:The See3CAM_130 supports only up to 4208x3120 pixels for 13MP

DFOV: 13M - 74° (with the lens provided by e-con)

  • Supported OS - Windows 10, Windows 8, Windows 7, Linux, Android * and MAC **
  • Sample Application:
    • e-CAMView - Windows Camera application for Video Preview and Still Capture.
    • QtCAM - Linux Camera application for Video Preview and Still Capture.
  • Still Image Resolutions:
    • 13MP (both MJPEG and BMP)
  • Still Capture:
    • External trigger signal control
    • Software application control
    • Software trigger
  • Zero Shutter Lag Still Capture for 13MP Still image:
    • 13MP still image in compressed JPEG within 500milliseconds
    • 13MP still image in uncompressed BMP format within 1.5 seconds
  • UVC Controls:
    • Brightness
    • Contrast
    • Sharpness
    • Saturation control
    • Gamma control
    • Gain
    • White Balance (Manual and Auto)
    • Digital Zoom (Upto 8x)
      • Pan
      • Tilt
    • Autofocus
      • Continuous Autofocus
      • Manual focus
      • Single trigger auto focus
      • ROI selection by user.
    • Auto exposure
      • Auto and Manual exposure control
      • ROI based exposure control
    • Denoising ( 5 levels)
      • Auto
      • Normal
      • Document
    • Effects
      • Normal
      • Black & White
      • Gray scale
      • Negative
      • Sketch
  • Additional Capabilities:
    • Support for external trigger
    • LED Strobe control
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

Download See3CAM_130 - Technical Documents:

   Datasheet

 pdf See3CAM_130 Datasheet

 pdf See3CAM_130 Lens Datasheet

   User Manual

 pdf See3CAM_130 Getting Started Manual

 pdf See3CAM_130 AN GPIO Usage

 pdf See3CAM_130 Trigger Mode

 pdf See3CAM_130 Face and Smile Detection

   Windows

 pdf Windows Extension Unit API

 pdf e-CAMView Application User Manual

 pdf e-CAMView Installation Manual

   Linux

 pdf QtCAM Application User Manual

Download 13MP camera Documents

Ordering Info:

Customers who own platforms that support USB3.1 Gen1 and are interested in evaluating the 13 MP USB UHD camera module can directly buy the See3CAM_130 from e-con Systems.

Part No Description Sample Price
(1 Unit)
Volume Price
(5000s Pack)
Purchase
See3CAM_130 4K Autofocus USB3.1 Gen1 Camera Type-C Connector $279 $99 buy e-con camera

See3CAM_130-4K Autofocus USB3.1 Gen1 Camera Type-C Connector

Sample Price (1 Unit)-$279

Volume Price (5000 units)-$99

buy e-con camera





In addition to See3CAM_130 , the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows 10, Windows 8, Windows 7, Linux). For more details, please refer the evaluation kit contents below.

For all enquiries please write to sales@e-consystems.com

Kit Contents:

USB 3.0 Camera

  • Hardware:
    • See3CAM_130 - 4K Autofocus USB3.1 Gen1 Camera Board
    • USB3.1 Gen1 Type-C Cable
  • Software: (Customers will have to download the software from e-con Developer Resource)
    • Supported OS: Windows 10, Windows 8, Windows 7, Linux, Android * and MAC **
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
  • Documents:
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

See3CAM_130 - Customization

  • Do you want other customization options?
  • Do you want a smaller form factor?
  • Do you need LED?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

4K Camera Customization

Volume Price starts from

US$99
Buy TARA USB3.1 Gen1 Stereo vision  Camera

Excluding Shipment Charges

Sample Image

Sample Image
