NileCAM30 - 3.4 MP GMSL Camera Module (supports upto 15 meters)

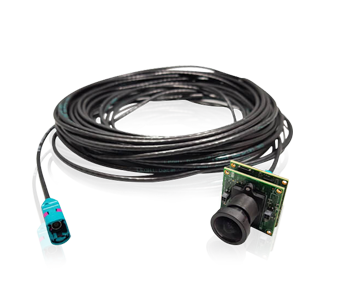

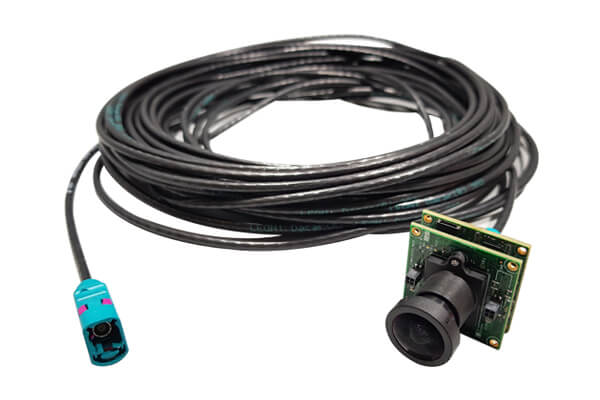

NileCAM30 is a first GMSL camera in the NileCAM camera series. NileCAM30 is a two board solution containing the camera module and serializer board. This camera is based on AR0330 CMOS image sensor from onsemi®. The NileCAM30 supports 3 meters or 15 meters coaxial cable with FAKRA connector. The NileCAM30 has an S-mount (M12) lens holder which allows customers to choose and use the lens according to their application requirement.

Key Features

  • Houses AR0330 3.4 MP Camera Module with S-mount lens holder
  • 1/3" Optical Form-format
  • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
  • Gigabit Multimedia Serial Link serializer and deserializer (GMSL SERDES) Technology
  • Shielded coaxial cable for transmission of both power and data for long distance (nup to 15m)
  • serializer connector : FAKRA neutral Z type (without Deserializers)
  • Maximum Image Transfer Rate:
  • Resolution UYVY MJPEG
    * 3.4 MP (2304 x 1536) 24 fps & 12 fps 48 fps
    * 3MP (2048 x 1536) 29 fps & 15 fps 50 fps
    FHD (1920 x 1080) 45 fps, 30 fps & 15 fps 60 fps
    HD (1280 x 720) 60 fps & 30 fps 60 fps
    VGA (640 x 480) 60 fps & 30 fps 60 fps
  • * - Default zoom value is 100 and for other resolutions zoom value will be 102
  • Small form-factor
  • 30mm x 30mm size. Height depends on the Lens
  • Compliance
    • RoHS
  • Launched on:launch date

Module Features:

onsemi® AR0330 Color 1/3" Optical format CMOS Image sensor

Resolution: 3.4 MP

Sensor Type: 12-Bit RAW format

Pixel Size: 2.2 µm x 2.2 µm

Sensor Active Area: 2304(H) x 1536(V)

Responsivity: 2.0V/lux sec

Signal To Noise Ratio (SNR): 39 dB

Dynamic Range – 69.5 dB

Shutter Type: Electronic Rolling Shutter

Controls: Auto white balance and Auto Exposure

Download NileCAM30 DataSheet:

pdf   NileCAM30 Module Datasheet

Evaluation Kit:

1. PC Solution

NileCAM30_USB - 3.4 MP GMSL camera over USB 3.1 Gen 1 interface

Customers who own platforms that support USB 3.1 Gen 1 interface and are interested in evaluating the 3.4 MP GMSL camera module, can directly buy the NileCAM30_USB from e-con Systems™.

USD 449
contact NileCAM30_USB

2. ARM Based Solution (NVIDIA TX2 based Jetson DevKit)

NileCAM30_TX2 – 3.4 MP GMSL Camera for NVIDIA Jetson TX2 (Requires NVIDIA TX2 based Jetson DevKit):

Customers who own NVIDIA Jetson TX2 and are interested in utilaizing the MIPI interface to evaluate NileCAM30 - 3.4MP GMSL Camera module , can directly purchase the NileCAM30_TX2 from e-con Systems™. Customers can also purchase it with 15 meter cable or 3 meter cable.

USD 429
contact NileCAM30_TX2

3. ARM Based Solution (Connect Tech's Rogue Carrier Board)

NileCAM30 - 3.4 MP GMSL Camera for Connect Tech's Rogue Carrier Board (Connect Tech's Rogue Carrier Board):

Customers who own Connect Tech's Rogue Carrier Board are interested in utilizing the MIPI interface to evaluate NileCAM30 - 3.4MP GMSL Camera module, which can can directly purchase the NileCAM30 from e-con Systems™.

USD 199

Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact and explain their requirement.

NileCAM30 - Customization and Porting Services for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NileCAM30 on any application platform as per customer requirements. For any driver customization or porting services or for using this 3.4 MP GMSL camera with your application processor platform, please contact along with your requirements details.

NileCAM30 - Customization

e-con provides customization, development and porting services for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/CS mount lens holder
  • Driver development for any OS: Linux, Android, Windows and MAC Embedded Compact
  • Interfacing with any Application Processor : Freescale i.MX6, NVIDIA Jetson and any other processor
  • Camera and ISP features customization based on specific requirements

Please contact with your customization requirements and we will be glad to happy to work with you!
