NileCAM30_TX2 - 3.4 MP GMSL camera (supports upto 15 meters)

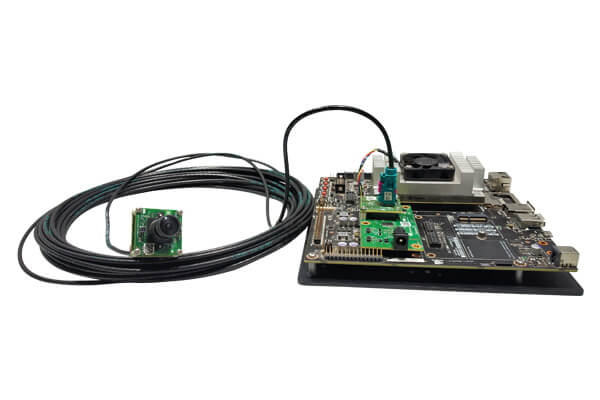

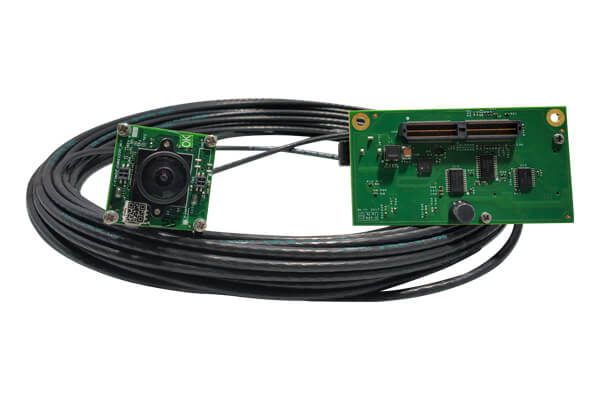

NileCAM30_TX2 is the four board solution containing the camera module, serializer, deserializer and TX2 base board. This camera is based on AR0330 CMOS image sensor from ON Semiconductor®. The NileCAM30_TX2 comes with 3 meters or 15 meters coaxial cable with FAKRA connector at both ends of serializer/deserializer board. The NileCAM30_TX2 has an S-mount (M12) lens holder which allows customers to choose and use the lens according to their application requirement.

Key Features

  • Houses NileCAM30 - 3.4 MP Camera Module with S-mount lens holder
  • High-speed 4-lane MIPI CSI-2 interface to connect with the CPU
  • Plugs in to NVIDIA® Jetson™ TX2 Development Kit
  • Maximum Image Transfer Rate:
  • Resolution UYVY
    3.4 MP (2304 x 1536) 24 fps
    3MP (2048 x 1536) 29 fps
    FHD (1920 x 1080) 45 fps
    HD (1280 x 720) 60 fps
    VGA (640 x 480) 60 fps
  • Operating Voltage : 5V +/- 5%, Current- 1150 mA *
  • Operating Temperature Range : -30°C to 55°C
  • Power Consumption:
    • Max : 3.62W
    • Min : 2.61W
  • Linux camera driver (V4L2) for 3.4 MP MIPI CSI-2 camera module
  • Sample application for image capture & Preview
  • Gstreamer-1.0 support for video recording and network streaming
  • Launched on:launch date
  • * - Calculated current consumption for NileCAM30_USB module

Module Features:

Sensor:1/3" Optical format CMOS Image sensor.

Focus Type:Fixed

Resolution:3.4 MP

Pixel size:2.2 µm x 2.2 µm

Sensor Active Area:2304H x 1536V

Responsivity:2 V/lux-sec

SNR:39 dB

Dynamic Range:69.5 dB

Output Format:Uncompressed UYVY format

Shutter Type:Electronic Rolling Shutter

Holder:S-Mount

ISP:External ISP

DFOV:3.4 MP - 118° (with the lens provided by e-con)

Linux camera driver:


Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's NileCAM30_TX2 on Jetson developer kit. The camera driver source code can be ported to any NVIDIA® Jetson™ TX2 platform and even to support the secondary MIPI CSI-2 interface of TX2.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson™ TX2 - JetPack 4.2.1 L4T32.2.0
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic)
    • Gamma
    • Gain
    • Horizontal Flip
    • Vertical Flip
    • Sharpness
    • Exposure (both manual and automatic)
    • Digital Zoom

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download NileCAM30_TX2 - Technical Documents:

pdf  NileCAM30_TX2 Datasheet

pdf  NileCAM30_TX2 Lens Datasheet

pdf  NileCAM30_TX2 Getting Started Manual

pdf  NileCAM30_TX2 Developer Guide

pdf  NileCAM30_TX2 Gstreamer Usage Guide

pdf  NileCAM30_TX2 Linux Application User Manual

pdf  NileCAM30_TX2 Release Package Manifest

pdf  e-CAM_TK1-GUVCView Build and Install Guide

Download 3MP camera Documents

NileCAM30_TX2 - Customization

  • Do you need a different lens mount (C-mount/CS-Mount) ?
  • Do you need custom length coaxial cable?
  • Do you need assistance in choosing lens?
  • Do you need lens correction?
  • Do you want a smaller form factor?
  • Do you need LED?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

Camera Customization

USD 429
Buy 3MP Camera online

Excluding Shipment Charges

Targeted Applications

»  Camera monitoring system

»  Surround view system

»  Inspection cameras

»  Diagnostic displays

»  Street lighting cameras
