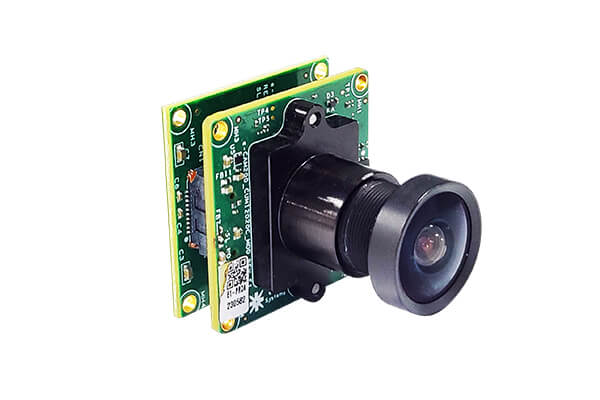

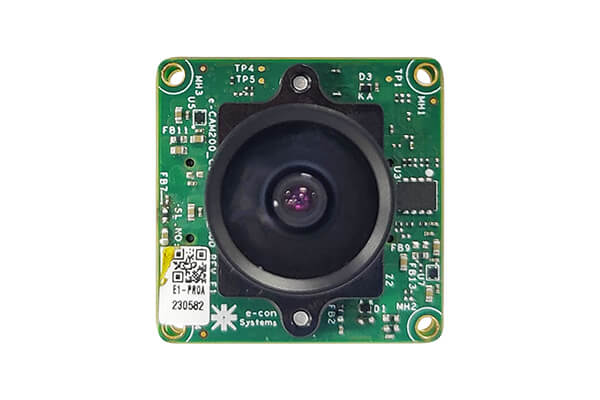

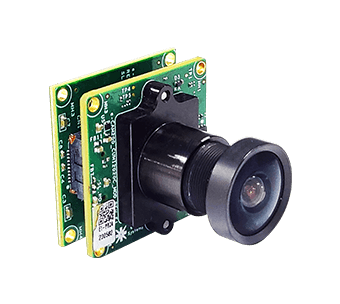

e-CAM200_CUONX - 20MP (5K) AR2020 High Resolution Camera for NVIDIA® Jetson Orin NX / Orin Nano

• Key features:
• • Frame Rate: 1080p @ 120 fps & 20MP @ 30 fps
    Refer Datasheet for complete frame rate details.
  • High-speed MIPI CSI-2 interface
  • Uses NVIDIA® Internal Image Signal Processor (ISP) for image processing
  • Standard M12 lens holder for use with customized optics or lenses for various applications
  • Lightweight, versatile, and portable design
• Interface:
• • Interface: MIPI CSI-2
  • Connector: FPC flex cable
  • Cable Length: 15cm
• Sensor features:
• • Sensor: AR2020 from onsemi®
  • Focus Type: Fixed focus
  • Sensor Resolution: 20MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling shutter with global reset mode ^#
  • Optical Format: 1/1.8"
  • Output Format: RAW Bayer
  • Pixel Size: 1.4 μm x 1.4 μm
  • Sensor Active Area: 5120 (H) x 3840 (V)
  • Lens Holder: M12 (S-Mount)
  • FOV: 118.81°(D), 90.28°(H), 65.98°(V) (with the lens provided by e-con)
• Electrical & Mechanical:
• • Operating Voltage: 3.3V +/- 5%
  • Operating Temperature Range: -30°C to 70°C
  • Typical power consumption: TBD
  • Size in mm (l x b x h): 30mm x 30mm
• Miscellaneous:
• • Compliance: RoHS
• # - Rolling shutter is supported in the default firmware. Customized firmware/hardware is required to use a rolling shutter with Global reset mode.

Linux camera driver:

e-CAM200_CUONX is a 2-lane and 4-lane MIPI CSI-2 camera and it requires a custom camera driver for NVIDIA® Jetson Orin Nano™ / NVIDIA® Jetson Orin™ NX

• Supported Jetpack & L4T Version
• • • NVIDIA® Jetson™ ORIN™ NX / Orin™ nano - JetPack 6.2 (L4T 36.4.3)
    • Upgrade Options
    • • You can upgrade from JetPack 6.0 to a newer version by following the guides below:
        • JetPack 6.1 (L4T 36.4.0) - [ Upgrade Guide ]
        • JetPack 6.2 (L4T 36.4.3) - [ Upgrade Guide ]
• V4L2 Linux driver for MIPI CSI-2 camera module:
• • Video preview
  • Still Image capture
  • Camera controls via IOCTLs
• Sample application with source Code for Linux:
• • Video Preview
  • Still Image capture at selected resolutions
• Camera Controls:
• • Exposure
  • Sensor Gain
  • Exposure Time
  • Frame Rate
  • Sensor Mode Index
• Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

• e-CAM200_CUMI2020C_MOD - 20MP MIPI Camera Module with lens
• Adaptor board
• Flex Cable (15 cm)
• Linux Driver & Sample Application
• Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

e-CAM200_CUONX - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM200_CUONX on any application platform as per customer requirements.

e-CAM200_CUONX Customization:

e-con provides customization for the following requirements:

• PCB form-factor customization for any shape, connector and orientation
• Lens holder customization for C/S mount lens holder
• Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
• Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
