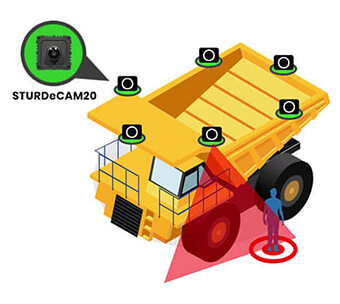

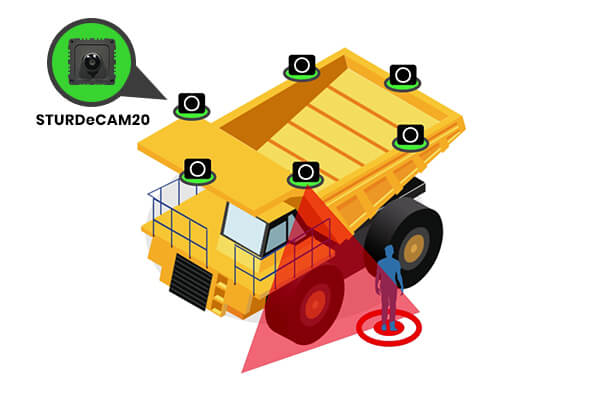

STURDeCAM20 - IP67 Full HD GMSL2 HDR camera for Surround view system

Highlights:

  • Houses AR0230 Full HD Camera Module with S-mount lens holder
  • High Dynamic Range (HDR)
  • Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector
  • IP67 shielded coaxial cable to transmit power and data up to 15m
  • External Trigger support for synchronized multi-camera streaming
  • On-board high performance ISP for excellent image quality
  • Dust and waterproof IP67-rated enclosure

Sample Price

Documents

Evaluate STURDeCAM20 with,

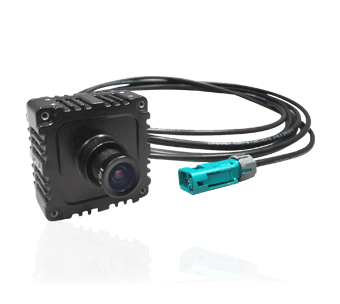

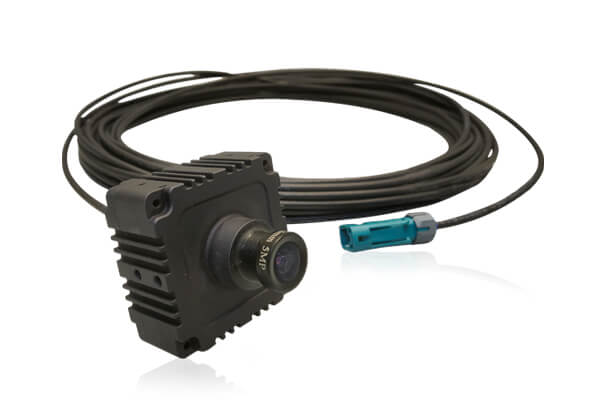

STURDeCAM20 is a Full HD GMSL2 HDR camera with 15 meters IP67 coaxial cable. The STURDeCAM20 has an industrial grade Full HD CMOS sensor which together with a well-tuned Image Signal Processor (ISP) produces exceptional image quality. Its High Dynamic Range (HDR) capability ensures reliable images even in challenging outdoor light conditions. This camera is supplied with IP67 M12 lens which is focused and glued in our factory.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Framerate: Streams FHD@30fps, VGA@60fps.
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Uncompressed UYVY format
    • S-mount IP67 compliant lens focused and glued at our factory
    • Multiple mounting options including magnetic mount support
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Module features:
    • Sensor: AR0230AT from onsemi®
    • Focus Type: Fixed focus
    • Focus Distance : 1m to Infinity
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter type: Electronic Rolling Shutter
    • Optical Format: 1/2.7"
    • Output Format: 10 or 12-Bit RGB format
    • Pixel size: 3μm x 3μm
    • Sensor Active Area: 1928H x 1088V
    • Array Size: 1928H x 1088V
    • Responsivity: 4.0 V/lux-sec
    • SNR: 41dB
    • Dynamic Range: Max up to 96 dB
    • Holder: M12 (S-Mount)
    • FOV: 116.5°(D), 98.5°(H), 53.5°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -40°C to 85°C
    • Typical power consumption:
      • Max : 2.196W
      • Min : 0.78W

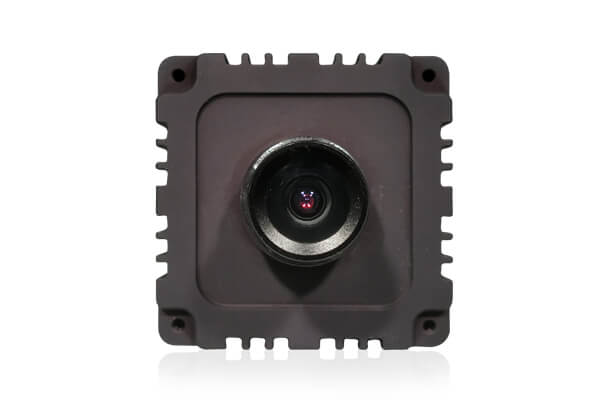

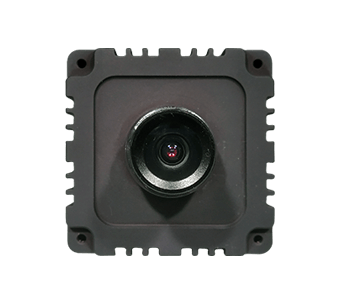

    • Size in mm (l x b): 42 x 42 mm (aluminium enclosure)
  • Miscellaneous:
    • Compliance:
      • FCC Class A, CE and RoHS
      • BS EN 50130-5:2011 Alarm systems Part 5: Environmental test methods
      • ISO 16750-3 - Road vehicles - Environmental conditions and testing for electrical and electronic equipment
      • IEC60529:2013-08 Edition 2.2: Degrees of protection provided by enclosures
    • IP67 Certified
  • Launched on: launch date
 Bullat Arrow  Download STURDeCAM20 Documents
 Bullat Arrow  Mounting Document
 Bullat Arrow  Compliance

Download 5 MP USB Camera Documents

Product Code Supported Platforms SAMPLE PRICE
(1 Unit)
Checkout
STURDeCAM20_CUOAGX
Kit Contents
  • STURDeCAM20 - AR0230AT Full HD GMSL2 HDR camera
  • 15 meter coaxial cable
  • Deserializer board
NVIDIA® Jetson AGX Orin™ dev kit
STURDeCAM20_CUXVR
Kit Contents
  • STURDeCAM20 - AR0230AT Full HD GMSL2 HDR camera
  • 15 meter coaxial cable
  • Deserializer board
NVIDIA® Jetson AGX Xavier™/TX2 dev kit

USD 449

ARM Based Solution
Connect Tech Rudi-AGX / Rudi-NX / Anvil Embedded System

-

contact us
ARM Based Solution
Connect Tech Jetson Xavier Rogue Carrier Board

-

contact us
ARM Based Solution
Toshiba DME's Jetson AGX Xavier Edge AI Box

-

contact us
ARM Based Solution Syslogic's AI Edge Box

-

contact us
ARM Based Solution Aetina AX720 Dev Kit

-

contact us
ARM Based Solution STEVIE Carrier and Dev Kit - ContactUs

STURDeCAM20_CUOAGX-NVIDIA® Jetson AGX Orin™ dev kit

Sample Price (1 Unit)-

buy now

STURDeCAM20_CUXVR-NVIDIA® Jetson AGX Xavier™/TX2 dev kit

contact us

STURDeCAM20_CUXVR-Connect Tech Rudi-AGX / Rudi-NX / Anvil Embedded System

contact us

STURDeCAM20_CUXVR-Connect Tech Jetson Xavier Rogue Carrier Board

contact us

STURDeCAM20_CUXVR-Toshiba DME's Jetson AGX Xavier Edge AI Box

contact us

ARM Based Solution-STEVIE Carrier and Dev Kit

contact us

Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact camerasolutions@e‑consystems.com and explain their requirement.

STURDeCAM20 - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for STURDeCAM20 on any application platform as per customer requirements. For any driver customization or porting services or for using this Full HD camera with your application processor platform, please contact camerasolutions@e-consystems.com along with your requirements details.

STURDeCAM20 – Customization
e-con provides customization for the following requirements:
  • Change of lens to meet your FOV and other requirements
  • Support to other NVIDIA Jetson platforms from other vendors
  • To support other processor platforms
