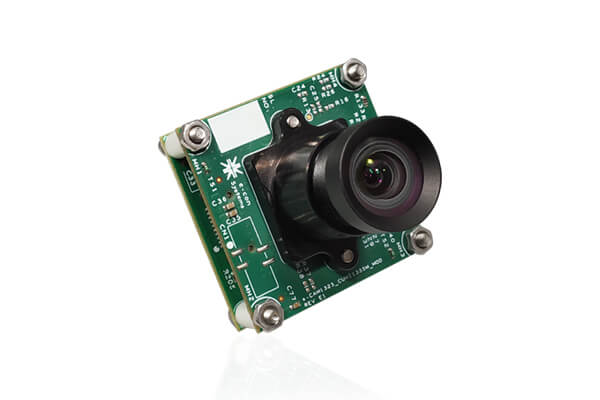

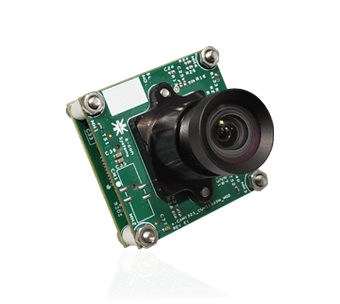

NileCAM130 is a 13MP GMSL 2 camera based on a 1/3.2-inch AR1335 sensor. NileCAM130 is an NVIDIA Jetson camera that can be connected to both NVIDIA Jetson AGX Xavier and NVIDIA Jetson AGX Orin using GMSL 2 interface.
Also, this 13MP AR1335 camera has an M12 lens holder, allowing customers to use the lens of their choice. This GMSL camera streams high frame rate uncompressed video data of HD at 72 fps, 4K at 15 fps, and 13MP at 10 fps up to a distance of 15 meters with very low latency.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate:
- Streams 13MP @ 10 fps & HD @ 72 fps
- Up to 816 fps for Custom ROI *
Datasheet for complete frame rate details.
- Output format: Uncompressed UYVY format
- S-mount lens holder for flexibility to choose a lens as per application requirements
- Lightweight, versatile, and portable design
- Frame Rate:
- Interface:
-
- Interface: GMSL2
- Connector: FAKRA connector

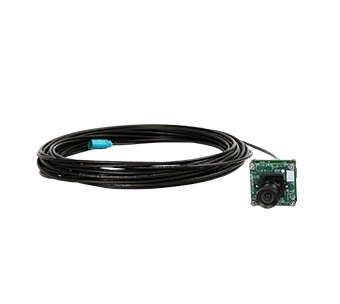

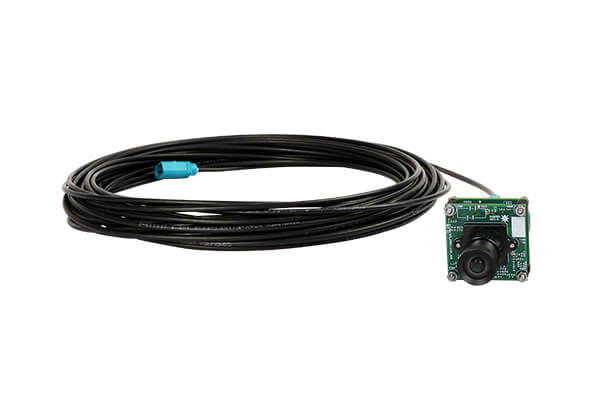

- Cable Length: 15m
- Sensor features:
-
- Sensor: AR1335 from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: 13MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/3.2"
- Output Format: Uncompressed UYVY
- Pixel Size: 1.1μm x 1.1μm
- Sensor Active Area: 4208(H)x3120(V)
- Array Size: 4208(H)x3120(V)
- Responsivity: 4700 e-/lux-sec
- SNR: 37 dB
- Dynamic Range: 69 dB
- Holder: M12 (S-Mount)
- FOV: 110°(D), 86°(H), 64°(V) (with the lens provided by e-con)
- Electrical & Mechanical:
-
- Operating Voltage: 5 to 15V with +/- 5% tolerance
- Operating Temperature Range: -30°C to 70°C
- Typical power consumption: 1.1W
- Size in mm (l x b): 30 x 30 mm
- Miscellaneous:
-
- Compliance: RoHS
- * - Not supported by default. Requires firmware customization for higher framerates with custom ROI resolutions.
| Product Code | Supported Platforms | Sample Price (1 Unit) |
|---|---|---|
NileCAM130_CUOAGX Kit Contents
|
NVIDIA® Jetson AGX Orin™/ AGX Xavier™ Dev Kit |
|
NileCAM130_CUOAGXKit Contents
|
ConnectTech's Rogue |
|
NileCAM130 - Customization:
e-con provides customization, development and porting services for the following requirements:
NileCAM130 - Customization:
e-con provides customization, development and porting services for the following requirements:
- IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
- Support for other processor platforms
- Camera and feature customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
