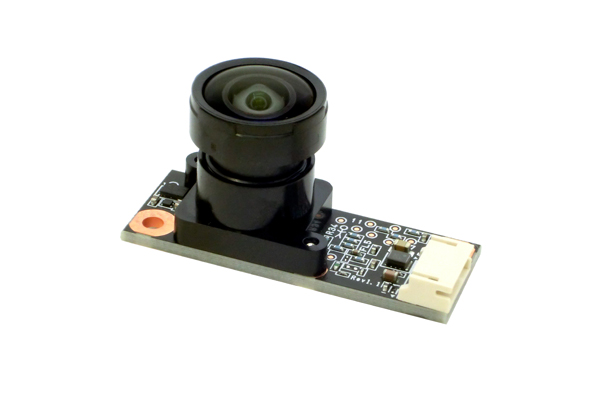

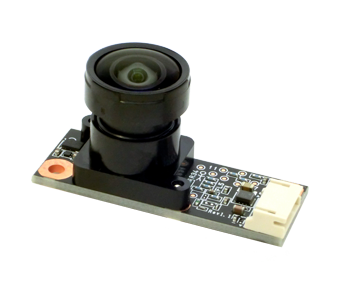

e-CAM26_USB is a 2 MP fixed-focus USB camera, fully compliant with the USB Video Class (UVC) 1.1 standard. It supports video streaming over UVC without requiring additional drivers on operating systems with built-in UVC support.
This camera is based on a high-sensitivity image sensor that ensures low noise and accurate color reproduction, even in low-light conditions.
Refer
Datasheet for more details.
- Key features:
-
- Frame Rate :
- MJPEG :1920 x 1080@30fps / 1280 x 960@30fps / 1280 x 720@30fps / 640 x 480@30fps
- YUV :1920 x 1080@5fps / 1280 x 960@7.5fps / 1280 x 720@7.5fps / 640 x 480@30fps
Datasheet for complete frame rate
details.
- Output format: YUV / MJPEG
- Supported OS: Windows
- Lightweight, versatile, and portable single-board solution
- Frame Rate :
- Module features:
-
- Sensor: 2.0MP Sensor
- Focus Type: Fixed focus
- Resolution: 2.0MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.8"
- Output Format: YUV / MJPEG
- Pixel Size: 2.9μm x 2.9μm
- Image Area: 5.57mm x 3.13mm
- Lens Holder: M12 (S-Mount)
- FOV: TBD
- Electrical & Mechanical:
-
- Operating Voltage: 5V +/- 5%
- Operating Temperature Range: -10°C to 60°C
- Power Requirements: 1.16 W (max.)
- Size in mm (l x b): 15mm(H) x 40mm(W)
- Board Weight: 10 Grams (Without lens)
- Miscellaneous:
-
- Compliance: RoHS
- Supported OS - Windows
- Controls:
- Automatic Exposure Control
- Automatic Gain Control
- Automatic White Balance
- Various image adjustment functions (software control)
- Sample Application
- Windows Camera application for Video Preview.
Kit Contents:
- Hardware:
-
- e-CAM26_USB – 2.0 megapixel USB Camera module
- USB 2.0 Cable
- Software: (Customers must download the software from e-con Developer Resource)
-
- Supported OS: Windows
- Windows Camera application for Video Preview.
