e-CAM24_CUXVR - 2MP Global Shutter Monochrome Camera for NVIDIA® Jetson AGX Xavier™

e-CAM24_CUXVR is a 2MP Monochrome MIPI CSI-2 Global Shutter Camera for NVIDIA® Jetson AGX Xavier™ developer kit. This camera kit contains e-CAM222_CUMI2311_MOD, an industrial MIPI camera module based on OmniVision 1/2.9" OV2311 monochrome Image sensor with a proven OmniPixel™ 3-GS global shutter pixel technology optimized for the accurate and fast capture of moving scenes at full resolution of 1600(H) x 1300(V). This global shutter camera helps to produce stunning and accurate images when the target scene is moving.

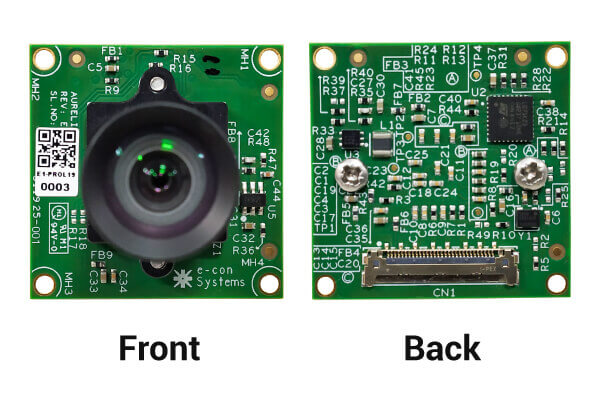

  • Houses e-CAM222_CUMI2311_MOD - 2MP Camera Module with S-Mount lens holder
  • Superior low light performance and IR performance
  • High-speed 2-lane MIPI CSI-2 interface to connect with the CPU

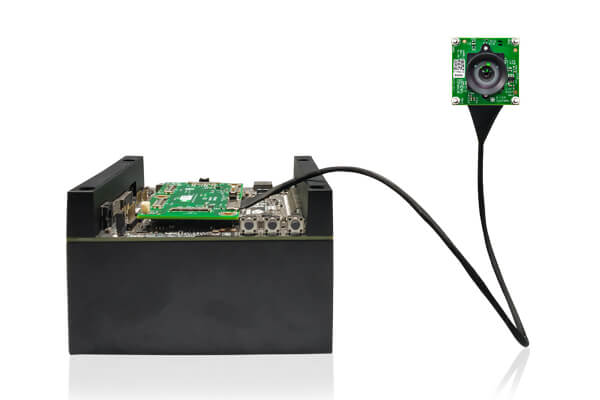

  • Plugs in to NVIDIA® Jetson AGX Xavier™
  • Up to 4 cameras can be connected to NVIDIA® Jetson AGX Xavier™ developer kit with synchronization
  • Global shutter camera
  • Output format: 8-bit/10-bit Monochrome output format
  • Frame Rate:
  • Resolutions Y16 (10 bit) Y8 (8 bit)
    QVGA (320 x 240) 280 fps 280 fps
    VGA (640 x 480) 180 fps 180 fps
    HD (1280 x 720) 90 fps 90 fps
    2.0 MP (1600 x 1300) 40 fps 60 fps
  • External Hardware Trigger Input
  • Linux camera driver (V4L2) for 2.0 MP MIPI CSI-2 camera module
  • Operating Temperature Range: -30°C to 85°C
  • Sample application for image capture & Preview
  • Gstreamer-1.0 support for video recording and network streaming
  • Micro-Coaxial Cable Length : 30 cm (1m *)
  • Lightweight, versatile, and portable design
  • RoHS compliant
  • Launched on:launch date
  • * - 1-meter cable will be available on special request.

Camera Module Features:

Sensor:OV2311 Monochrome sensor from OmniVision

Sensor Resolution and Optical Format:2.0 MP CMOS Image Sensor. 1/2.9" Optical format

Sensor type:2.0 MP CMOS Global Shutter Sensor with Monochrome output

Output Format:Y16 (10 bit), Y8 (8 bit)

Sensor Features:

Pixel size:3μm x 3μm pixel

Sensor Active Area:1600H x 1300V

Responsivity:49 Ke-/lux.sec

SNR:37.4 dB

Dynamic Range:68 dB

Shutter type:Global Shutter

Focus Type:Fixed focus

Array Size:1600 x 1300 pixels

DFOV:2.0 MP - 71.6° (with the lens provided by e-con)

Linux camera driver:


Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM24_CUXVR on NVIDIA® Jetson AGX Xavier™ developer kit.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson AGX Xavier™ - JetPack 4.4 L4T32.4.3
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls
    • Brightness
    • Exposure
  • Additional Capabilities
    • Stream Mode
      • Master Mode
      • Trigger Mode

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM24_CUXVR - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM24_CUXVR Datasheet

pdf e-CAM24_CUXVR Lens Datasheet

 Bullat Arrow  User Manual

pdf e-CAM24_CUXVR Developer Guide

pdf e-CAM24_CUXVR Getting Started Manual

pdf e-CAM_TK1 GUVCView Build and Installation Guide

pdf e-CAM24_CUXVR Gstreamer Usage Guide

pdf e-CAM24_CUXVR Linux User Manual

pdf e-CAM24_CUXVR Release Package Manifest

Download Selected Documents

Kit Contents:

  • e-CAM222_CUMI2311_MOD - 2MP MIPI Camera Module with Lens
  • Adaptor Board
  • Base board
  • Micro-coaxial cable
  • Linux Driver & Sample Application
  • Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

SAMPLE PRICE

USD 179
Contact US

Excluding Shipment Charges
