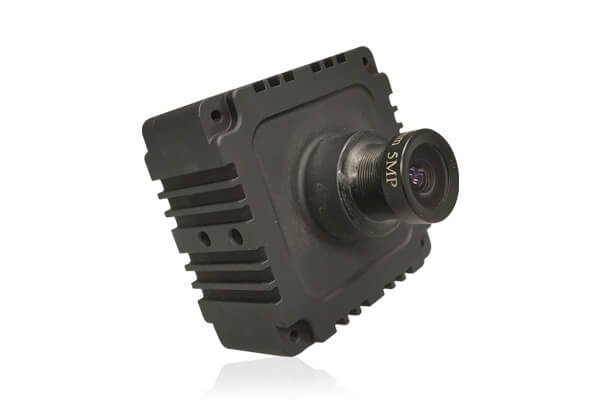

STURDeCAM21 - IP67 AR0233 Full HD GMSL2 HDR camera with LFM

Highlights:

  • Houses AR0233 Full HD Camera Module with S-mount lens holder
  • High Dynamic Range (HDR) with LFM
  • Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector
  • Shielded coaxial cable to transmit power and data up to 15m

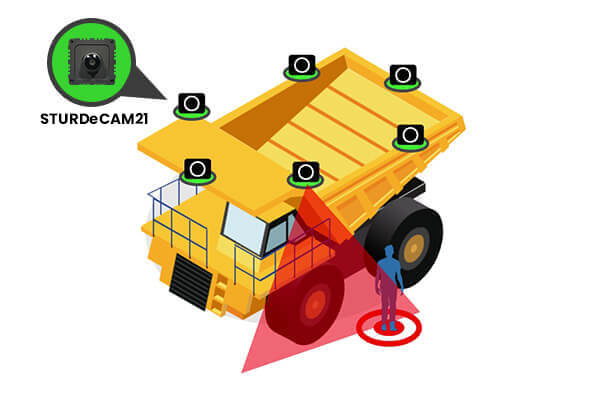

  • External Trigger support for synchronized multi-camera streaming
  • On-board high performance ISP for excellent image quality
  • Dust and waterproof IP67-rated enclosure

Sample Price

Documents

Excluding Shipment Charges

Evaluate STURDeCAM21 with,

STURDeCAM21 is a Full HD GMSL2 HDR camera with a 15 meters IP67 coaxial cable. It has an industrial-grade Full HD CMOS sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality. This camera is based on the 1/2.5" AR0233AT CMOS image sensor with the new 3.0 μm dual conversion gain BSI pixel technology from Onsemi®. Its High Dynamic Range (HDR) capability ensures reliable images even in challenging outdoor light conditions. It also comes with the LFM (LED Flicker Mitigation) feature ensuring accurate image capture of images with pulsed light sources like LEDs. This camera – which comes with an IP67-rated enclosure – is supplied with an IP67 M12 lens that is focused and glued in our factory.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate - Streams FHD@30fps, VGA@60fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Uncompressed UYVY format
    • S-mount IP67 compliant lens focused and glued at our factory
    • Multiple mounting options including magnetic mount support
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: AR0233AT from onsemi®
    • Focus Type: Fixed focus
    • Focus Distance : 1m to Infinity
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.5"
    • Output Format: 24-Bit RGB Bayer
    • Pixel Size: 3μm x 3μm
    • Sensor Active Area: 2048H x 1280V
    • Array Size: 2048(H) x 1280(V)
    • Responsivity: 30.4 Ke-/lux-sec
    • SNR: 43.1 dB
    • Dynamic Range: Max upto 120 dB
    • Holder: M12 (S-Mount)
    • FOV: 113.83°(D), 98.22°(H), 50.34°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -40°C to 85°C
    • Typical power consumption: Max : 2.196W, Min : 0.78W
    • Size in mm (l x b): 42 x 42 mm (aluminium enclosure)
  • Miscellaneous:
    • Compliance:
      • FCC Class A, CE and RoHS
      • BS EN 50130-5:2011 Alarm systems Part 5: Environmental test methods
      • ISO 16750-3 - Road vehicles - Environmental conditions and testing for electrical and electronic equipment
      • IEC60529:2013-08 Edition 2.2: Degrees of protection provided by enclosures
    • IP67 Certified
  • Launched on: launching date
 Bullat Arrow  Datasheet
 Bullat Arrow  Compliance
 Bullat Arrow  Mounting Guide

Download Full HD USB Camera Documents

Part No Supported Platforms Sample Price
(1 Unit)
Purchase
STURDeCAM21_CUOAGX
Kit Contents
  • STURDeCAM21 - IP67 Full HD GMSL2 HDR Camera
  • Deserializer board with 6 camera connectors
  • 15 meters coaxial cable
NVIDIA® Jetson AGX Orin™ / AGX Xavier™ Dev Kit
STURDeCAM21
Kit Contents
  • STURDeCAM21 - IP67 Full HD GMSL2 HDR Camera
  • Syslogic's AI Rugged Computer
    • RML A3N GMSL (Jetson Xavier NX)
    • RPC/RML - A3 (Jetson AGX Xavier)

-
ContactUs
ARM Based Solution Solectrix's proFRAME Base Board 3.0 PCIe - ContactUs

STURDeCAM21_CUOAGX-NVIDIA® Jetson AGX Orin™ / AGX Xavier™ Dev Kit

Sample Price (1 Unit)-

buy e-con camera

STURDeCAM21-STURDeCAM21 - IP67 Full HD GMSL2 HDR Camera

Sample Price (1 Unit)

ContactUs

ARM Based Solution-Solectrix's proFRAME Base Board 3.0 PCIe

contact us



STURDeCAM21 - Customization and Porting Services for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for STURDeCAM21 on any application platform as per customer requirements. For any driver customization or porting services or for using this Full HD camera with your application processor platform

STURDeCAM21 - Customization

e-con provides customization, development and porting services for the following requirements:

  • Change of lens to meet your FOV and other requirements
  • Support to other NVIDIA Jetson platforms from other vendors
  • To support other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
